LG GR-349STQA.CTIQRAN User Manual

1 DOOR
● Freezer Door
1) Loosen 2 screws and pull the Lower Cover.
2) Loosen hexagonal bolts fixing the lower hinge to the
body to remove the freezer door only.
3) Pull out the Door Gasket to remover from the
Door Foam Assy, F.
● Refrigerator Door
1) Loosen hexagonal bolts fixing the center hinge(Hinge,C)
to the body to remove the refrigerator door only.
2) Pull out the Door Gasket to remove from the
Door Foam Assy, R.
2 DOOR SWITCH
1) Loosen four screws in upper part and disconnect top
cover.
2) Disconnect Lead Wire from switch.
3) Disengage hook behind the switch by pressing it with
hands.
3 REFRIGERATOR ROOM LAMP
1) Remove the Cover Lamp, R by pulling with a 'Ð' type
driver.
2) Remove the Lamp by turning.
Bolt
Lower Hinge

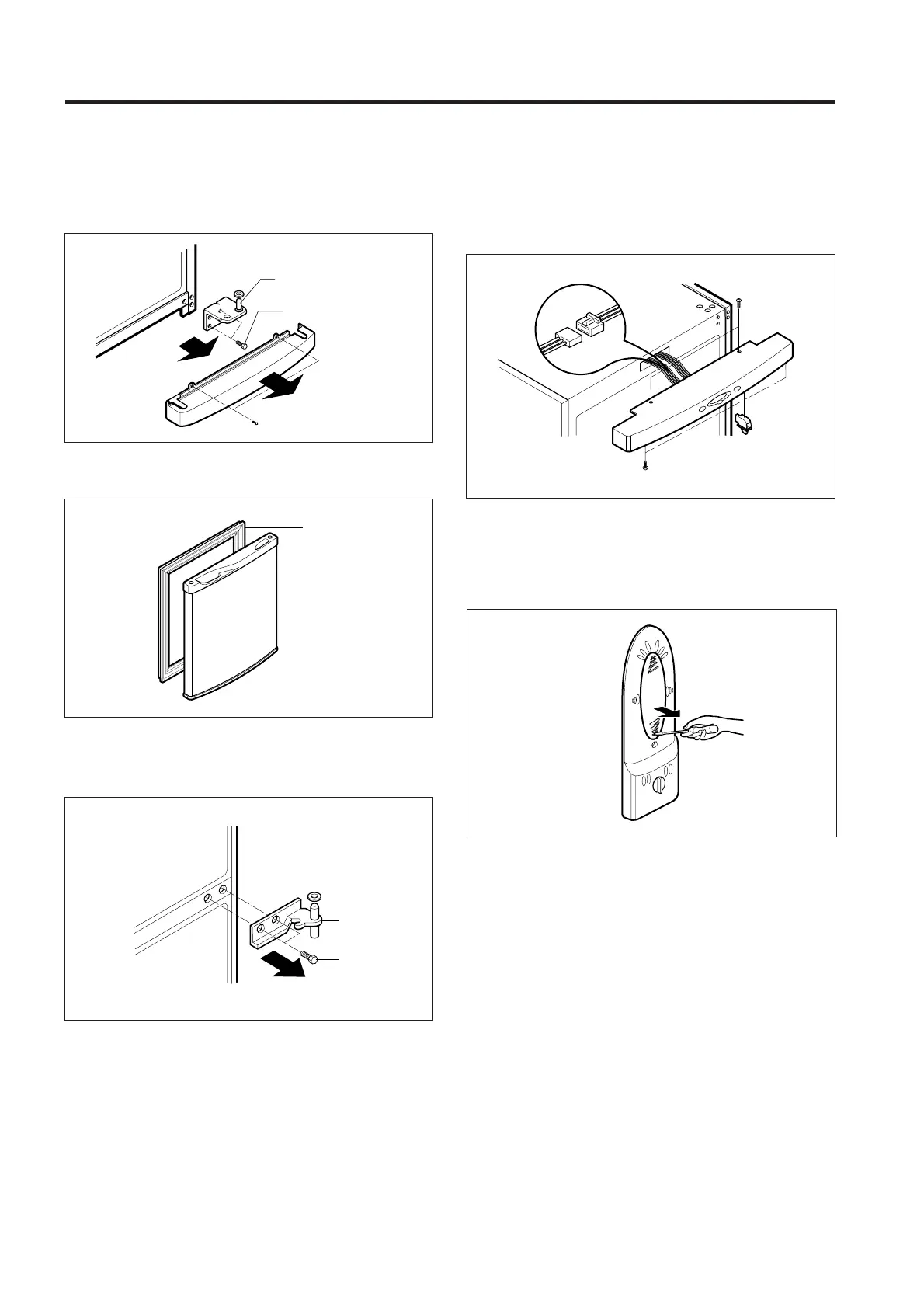

Figure 6
GASKET
Figure 7
Hinge, C
Bolt
Figure 8
Figure 9
DISASSEMBLY
- 7 -
Figure 10
