1-11. Key Button Input and Display Lighting Circuit
1. GR-P247, GR-P207, GR-L247, GR-L207

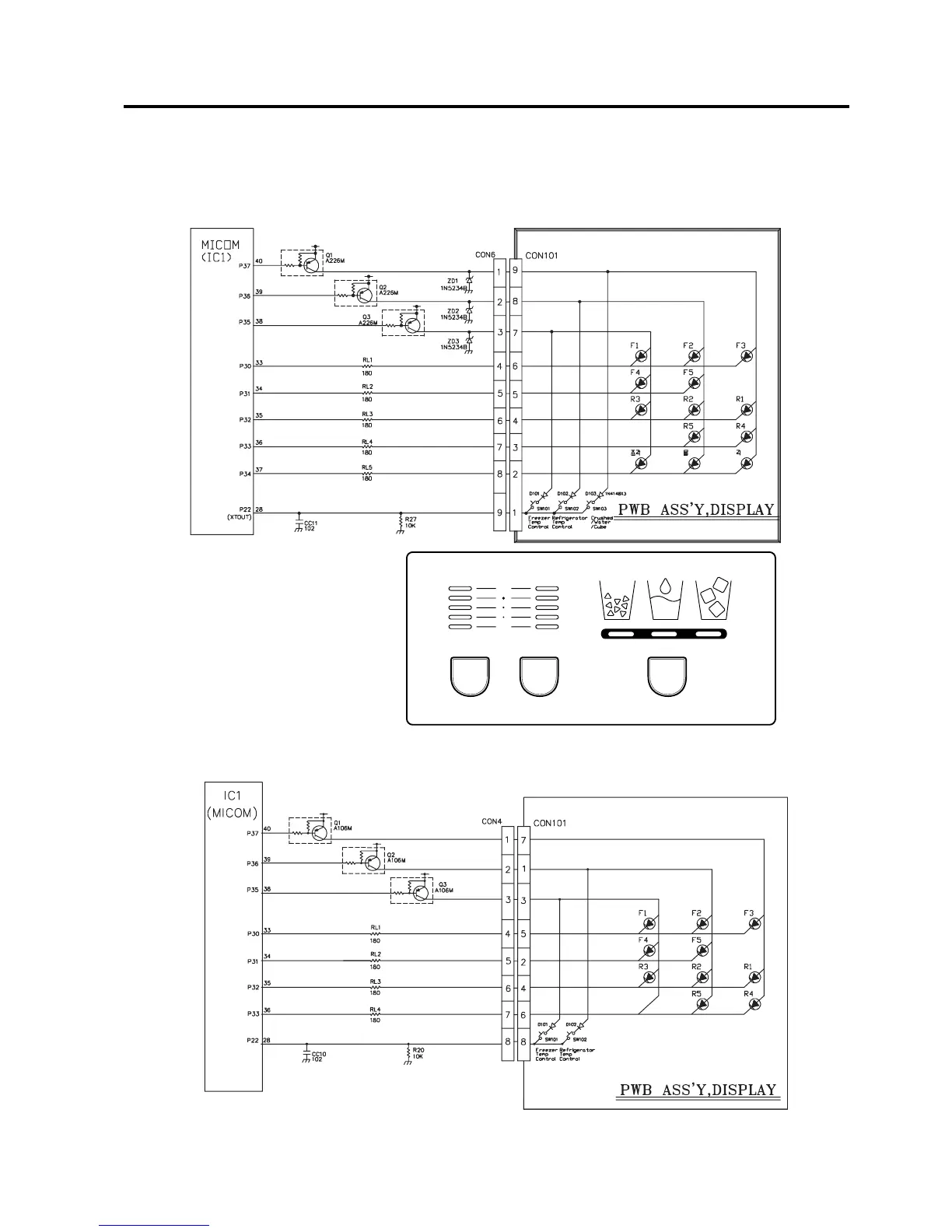

This circuit is to judge the work of function control button on the operation panel and to light each function indication led
(LED module). It is driven by SCAN method.
2. GR-C247, GR-C207, GR-B247, GR-B207, GR-B197
EXPLATION FOR MICOM CIRCUIT
