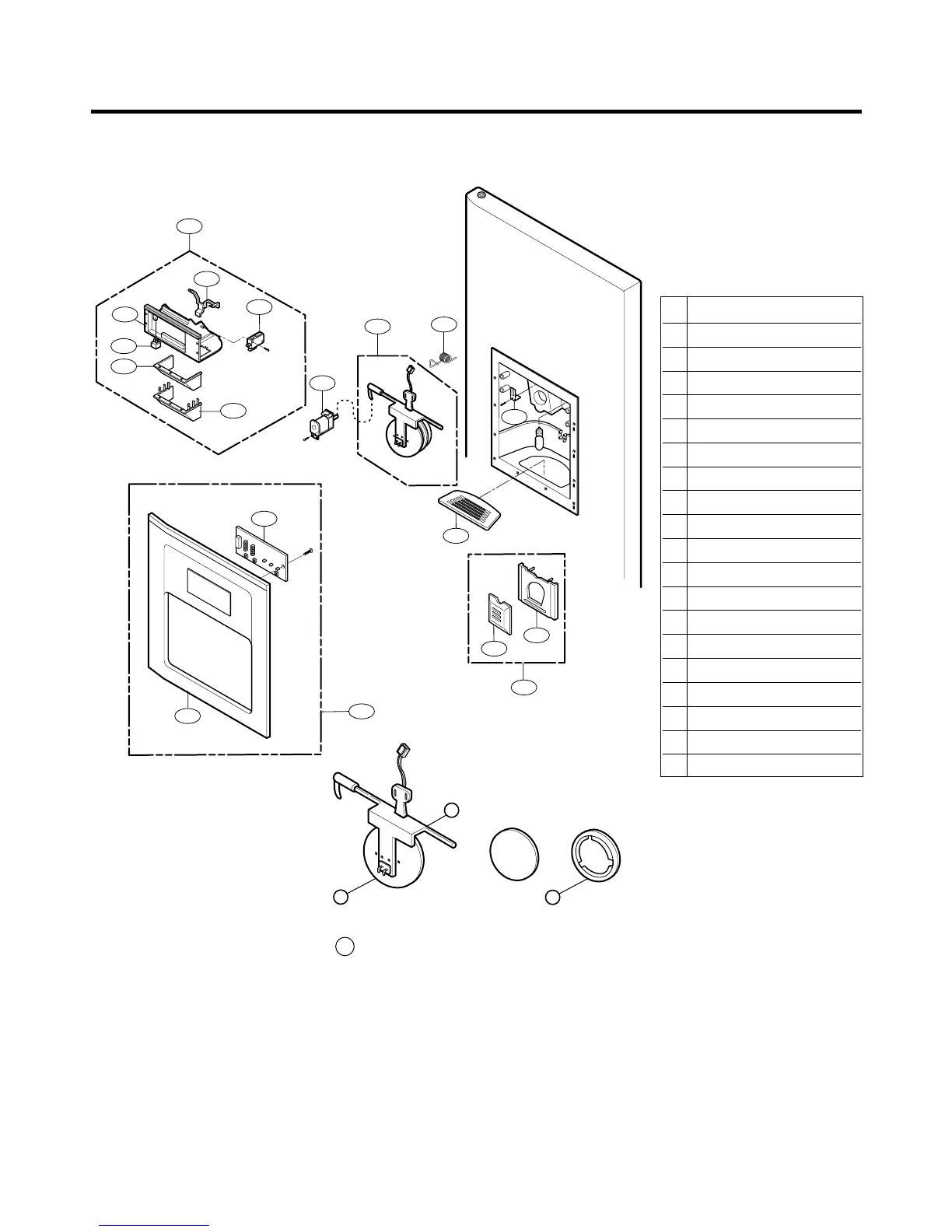

7) Dispenser Related Parts
HOW TO DISASSEMBLE AND ASSEMBLE
- 109 -
7
12
13
8
11
14
17
15
24
16
23
21
1
22
9
10
2
4
18
21
19
1
FRAME ASSEMBLY, DISPLAY
2 COVER, DISPENSER
4 PWB(PCB) ASSEMBLY, DISPLAY
7 FUNNEL ASSEMBLY
8 SWITCH, MICRO
9 FRAME, FUNNEL
10 LEVER(SWITCH)
11 FUNNEL
12 RUBBER, FUNNEL
13 SWITCH, ROCKER
14 SOLENOID ASSEMBLY
15 SPRING
16 HOLDER, LEVER
17 CAP, DUCT
19 LEVER, DISPENSER
20 RUBBER, CAP
21 BUTTON ASSEMBLY
22 BUTTON
23 HOLDER, BUTTON
24 DECO, DRAIN
< 17 Cap Assembly, Duct Detailed Drawings>
