6. WATER TANK AND WATER LINE
u The water tank at back and lower part of a refrigerator is
fixed by one screw and has a capacity containing 7
glasses (180cc per glass) of cold water. It will take time
to make more cold water in the tank.
*
The first portion of dispensed water is not cold even
though the refrigerator is working. In this case,
dispense ice first in the cup and then water to make a
cold water.
7. HOME BAR

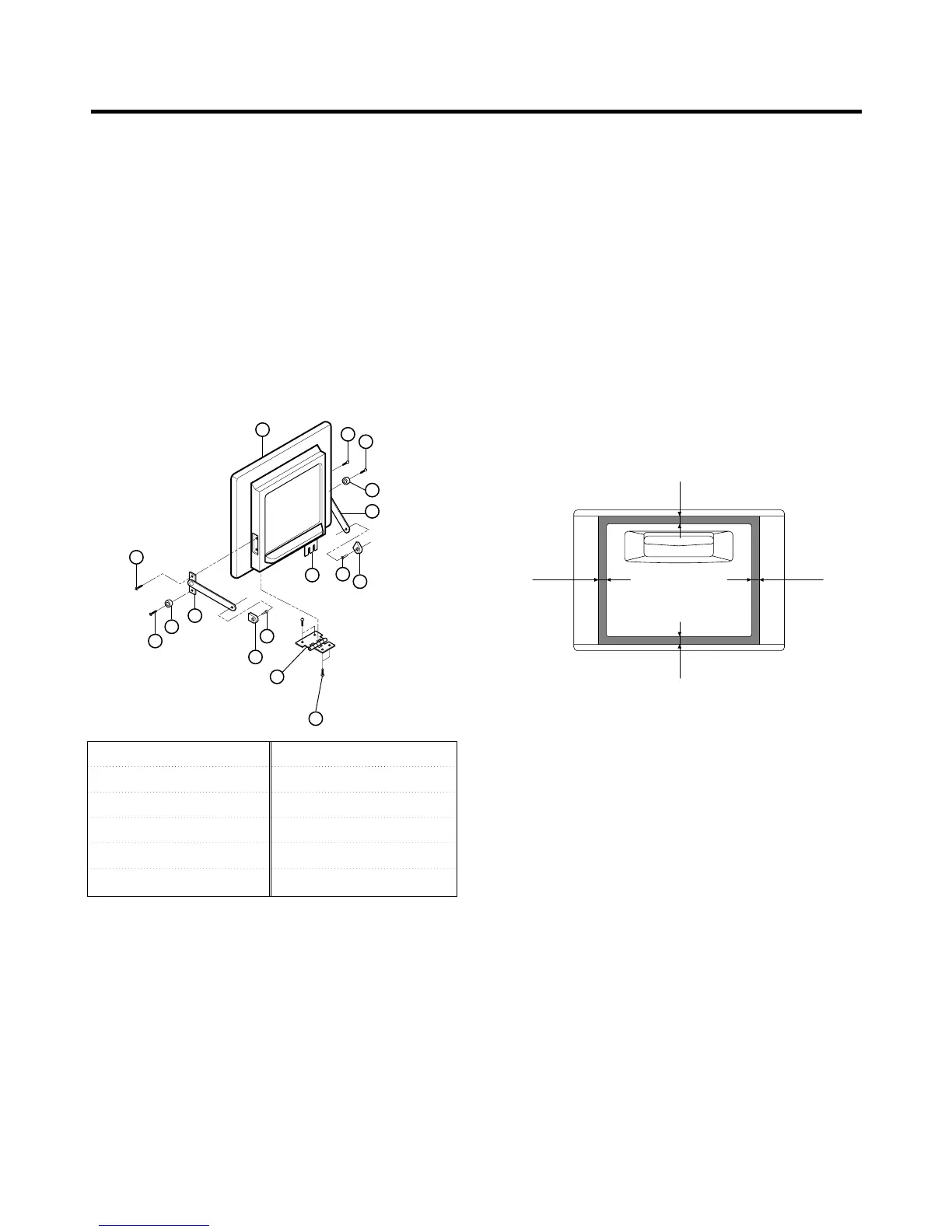

7-1. Home Bar related parts
7-2. Home Bar parts disassembly and assembly
1) Disconnect H/Bar Door Assembly .
2) Loosen two screws  attached on the refrigerator
compartment door with a phillips screwdriver. And
loosen 4 screws  and two screws . Pull H/Bar door
Assembly . forward to disassemble.
3) Loosen two screws ,  fixed on H/Bar door
Assembly. and two screws  with a cross driver to
disassemble arm Assembly.
4) Assemble parts by performing the disassembly in
reverse order.
Note : • Assemble carefully parts , ,  until they are
fixed firmly when assembling them.
• Adjust exterior gap by adjusting parts ,  and
when assembling.
HOW TO DISASSEMBLE AND ASSEMBLE
- 110 -
1
8
6
7
5
11
10
9
8
7
6
4
3
11
10
9
2.05.0
1.8 1.8
1 DOOR ASSEMBLY, H/BAR 7 SCREW TAP TITE(ARM)
2
SEREW, TAP TITE(HINGE-H/B) 8 ARM ASSEMBLY
3
SCREW MACHINE(HINGE-H/B) 9 STOPPER
4 HINGE ASSEMBLY H/BAR 10
SCREW, MACHINE(STOP ARM-H/B)
5 HINGE ASSEMBLY H/BAR 11 SCREW MACHINE(HINGE-H/B)
6 CAP, ARM
