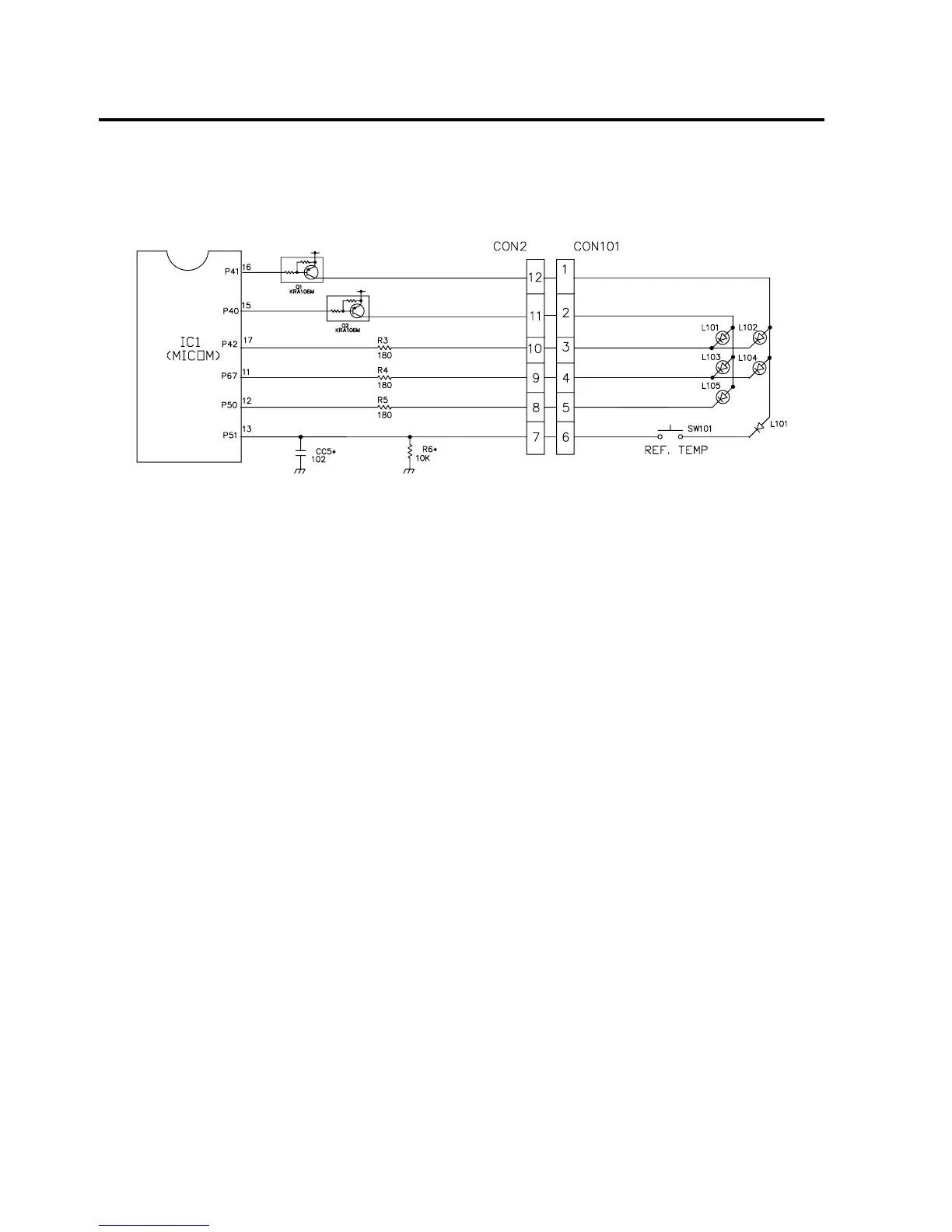

7-2-8 KEY BUTTON INPUT & DISPLAY LIGHT ON CIRCUIT
➧ The circuit shown above is to determine whether a function control key on the operation display is pushed and to turn on
the corresponding function indication LED. The drive type is the scan type.
- 24 -
