3-1 DOOR
● Freezer Door

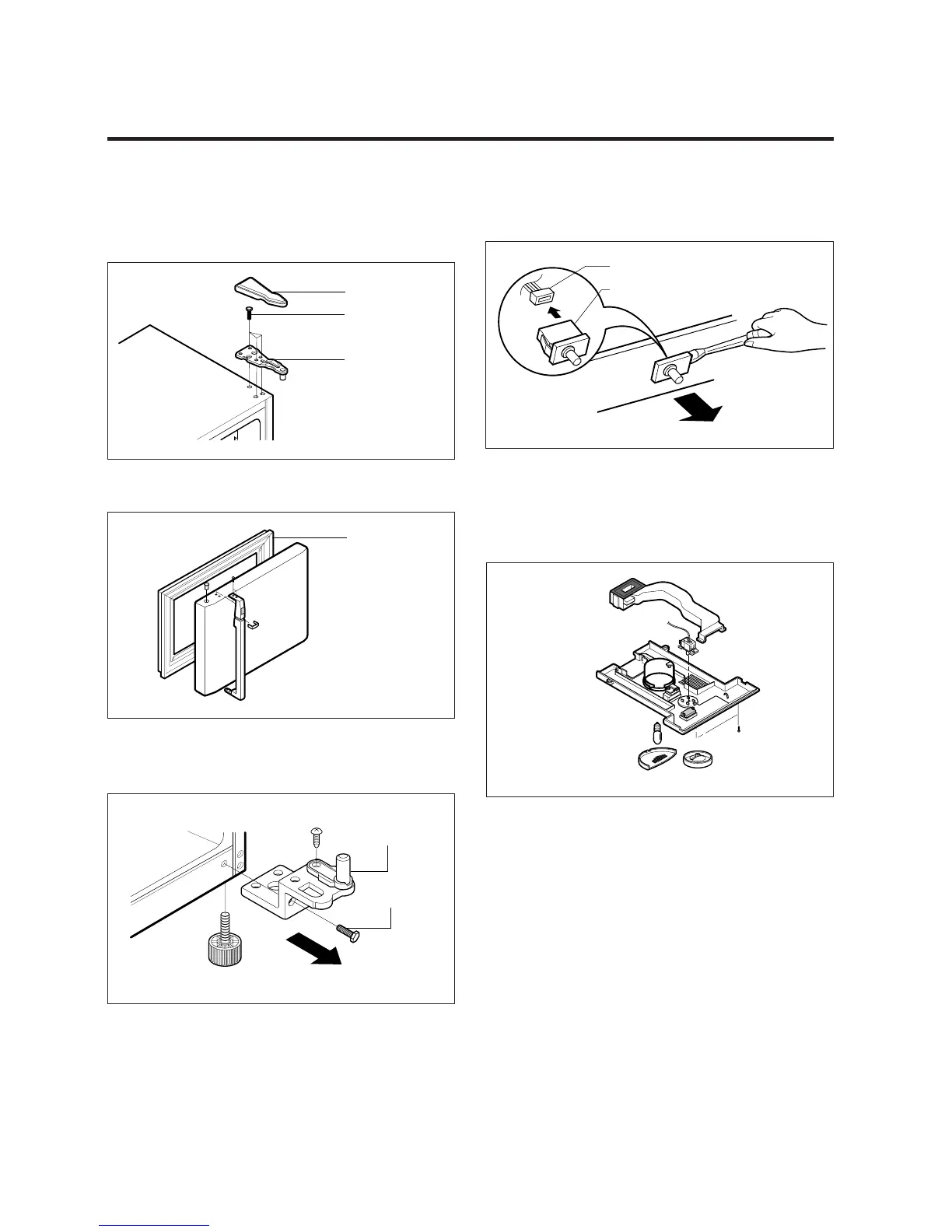

1. Remove the hinge cover by pulling it upwards.
2. Loosen hexagonal bolts fixing the upper hinge to the
body and lift the freezer door.
3. Pull out the door gasket to remove from the door foam
Ass'y.
● Refrigerator Door
1. Loosen hexagonal bolts fixing the lower hinge to the
body to remove the refrigerator door only.
2. Pull out the door gasket to remove from the door foam
Ass'y.
3-2 DOOR SWITCH
1. To remove the door switch, pull out it with a '–' type
driver as shown in (figure 9).
2. Disconnect the lead wire from the switch.
3-3 THERMOSTAT
1. Remove Control Box-R by loosening 2 screw fixed to
ceiling of Refrigerator compartment (Figure 10)
2. Separate the thermostat and dial knob F.
3. Remove the thermostat by disconnecting the lead wire.
3. DISASSEMBLY
- 6 -
