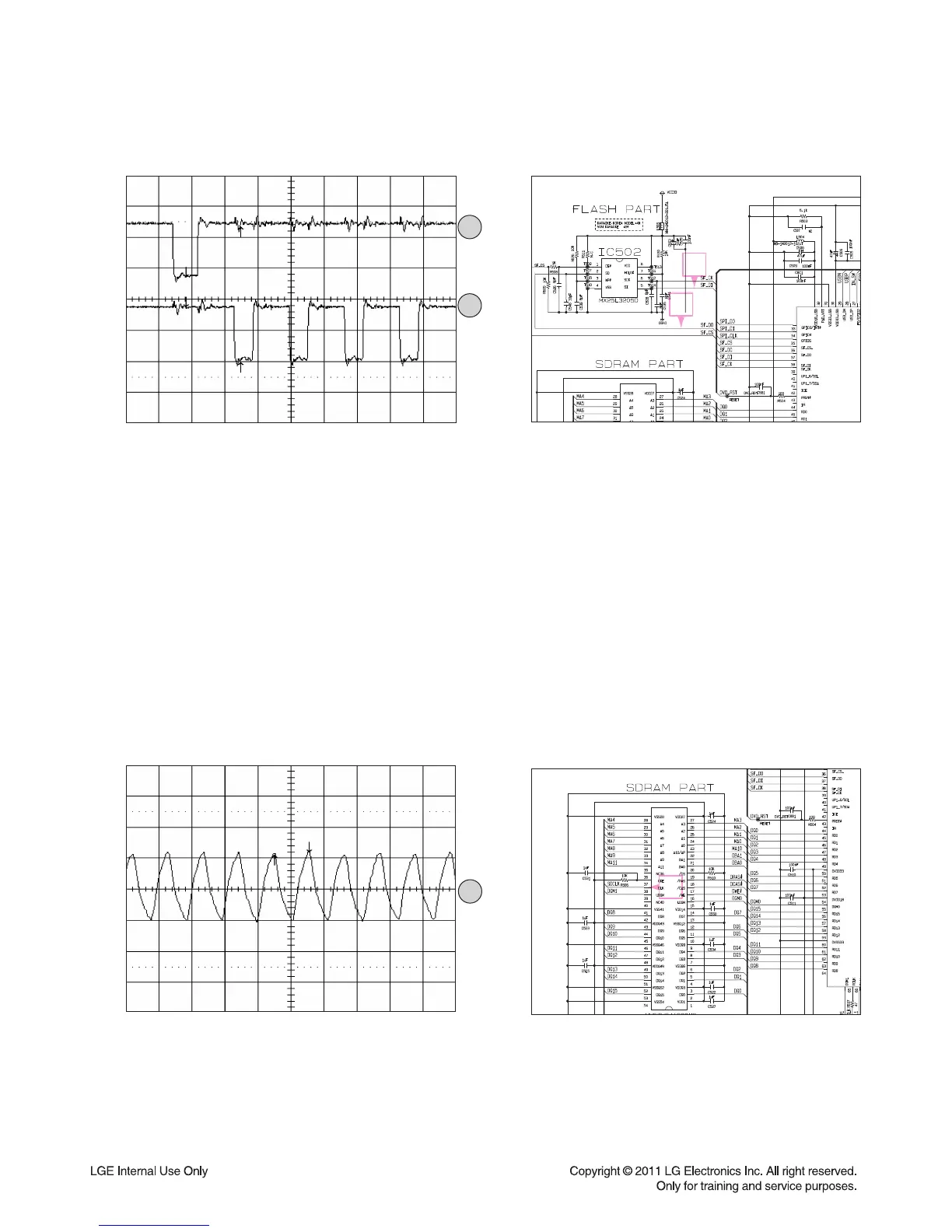

2-14
3) Flash R/W enable signal during download(Downloading)
2. SDRAM CLOCK
1)
MT1389L
main clock is at 27MHz(X500)
FIG 1-3
5
6
SF_DI
SF_DO
DCLK = 93MHz, Vp-p=2.2, Vmax=2.7V
FIG 2-1
7
SDCLK
6
5
7
