8. FOCUS ON WAVEFORMS
25 : This signal can see using special debug program

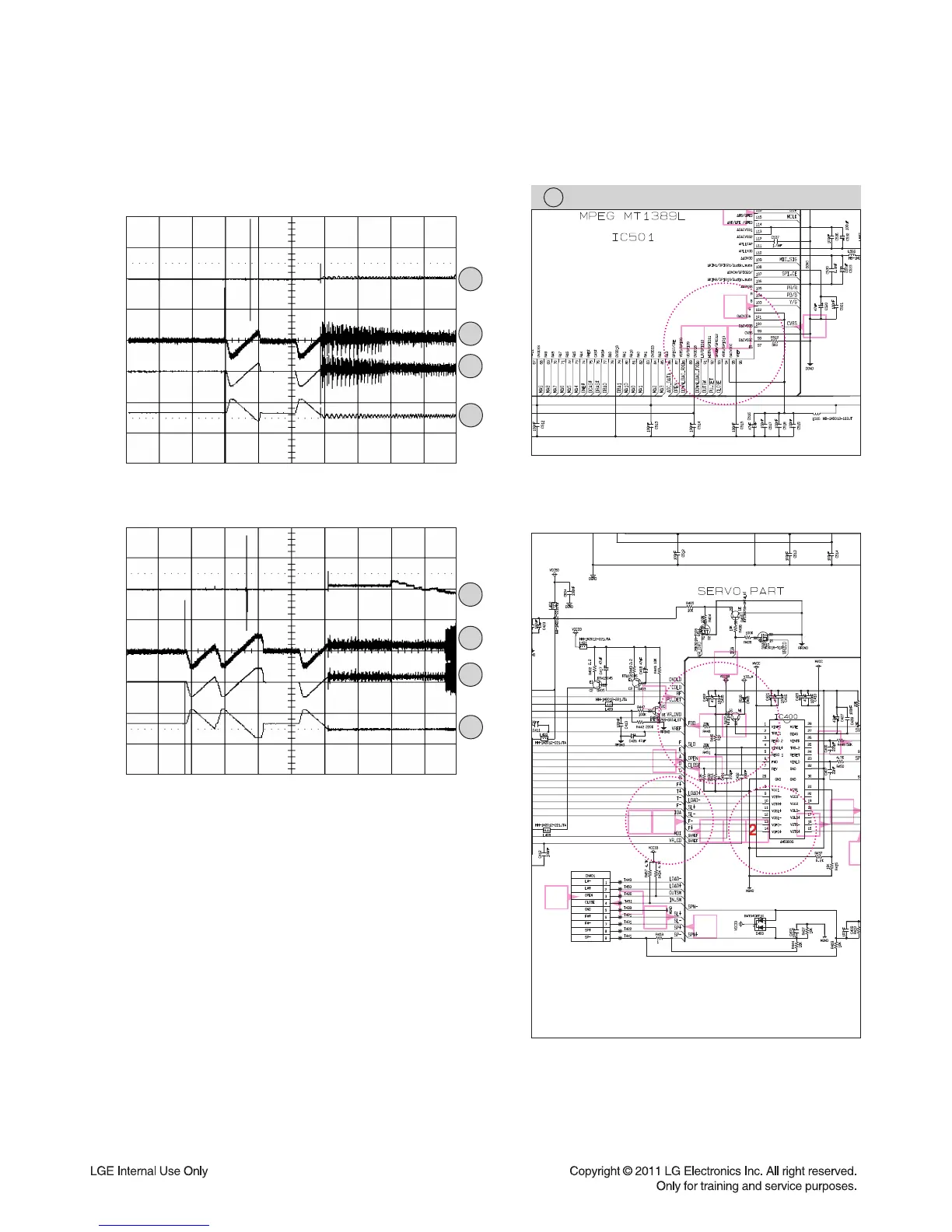

FIG 8-1 (DVD)
25
26
27
28
PU_DET
FOD
F+
F-
FIG 8-2 (CD)
25
26
27
28
PU_DET
FOD
F+
F-
