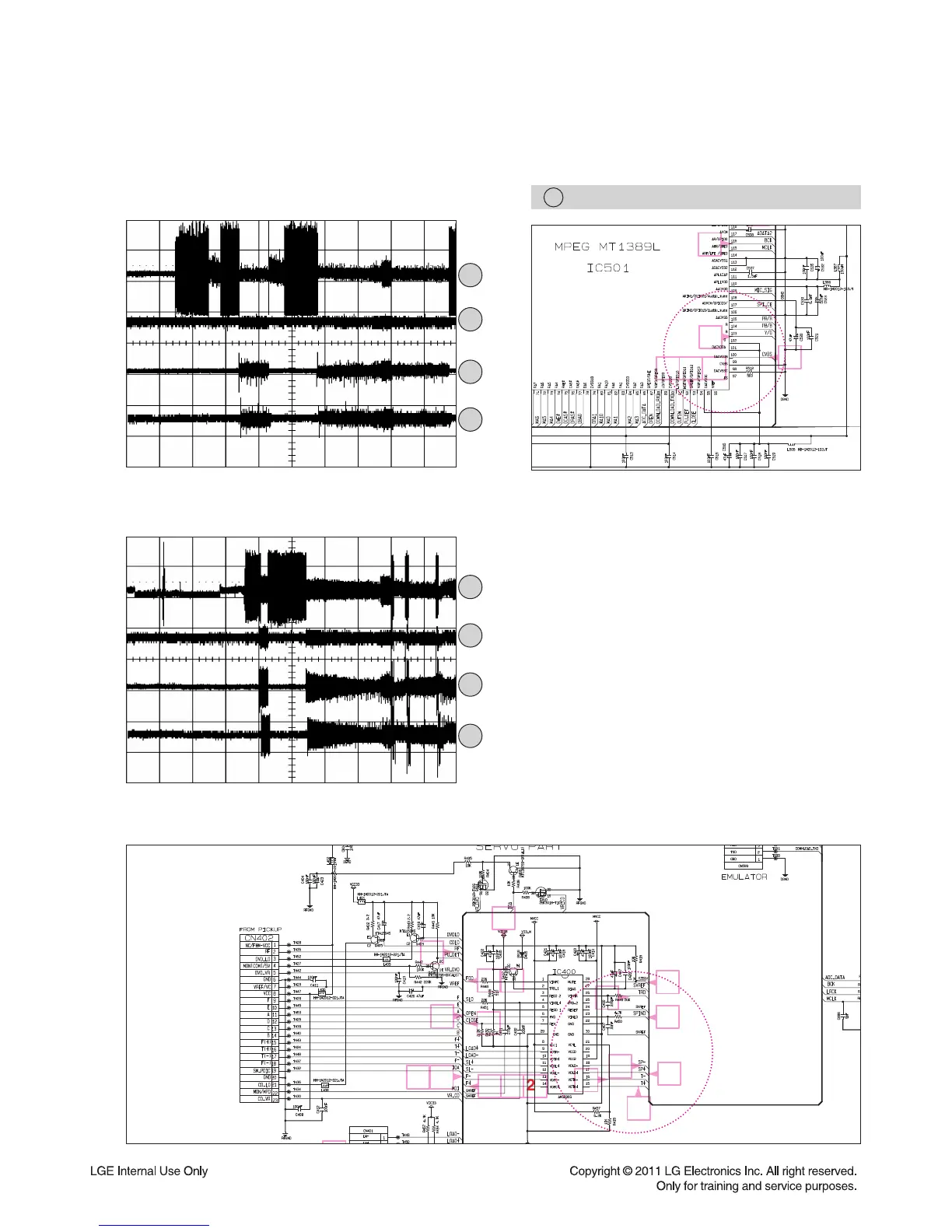

10. TRACKING CONTROL RELATED SIGNAL(System checking)
32 : This signal can see using special debug program
FIG 10-1(DVD)
32
33
34
35
PU_DET
TRO
T-
T+
FIG 10-2(CD)
32
33
34
35
PU_DET
TRO
T-
T+
