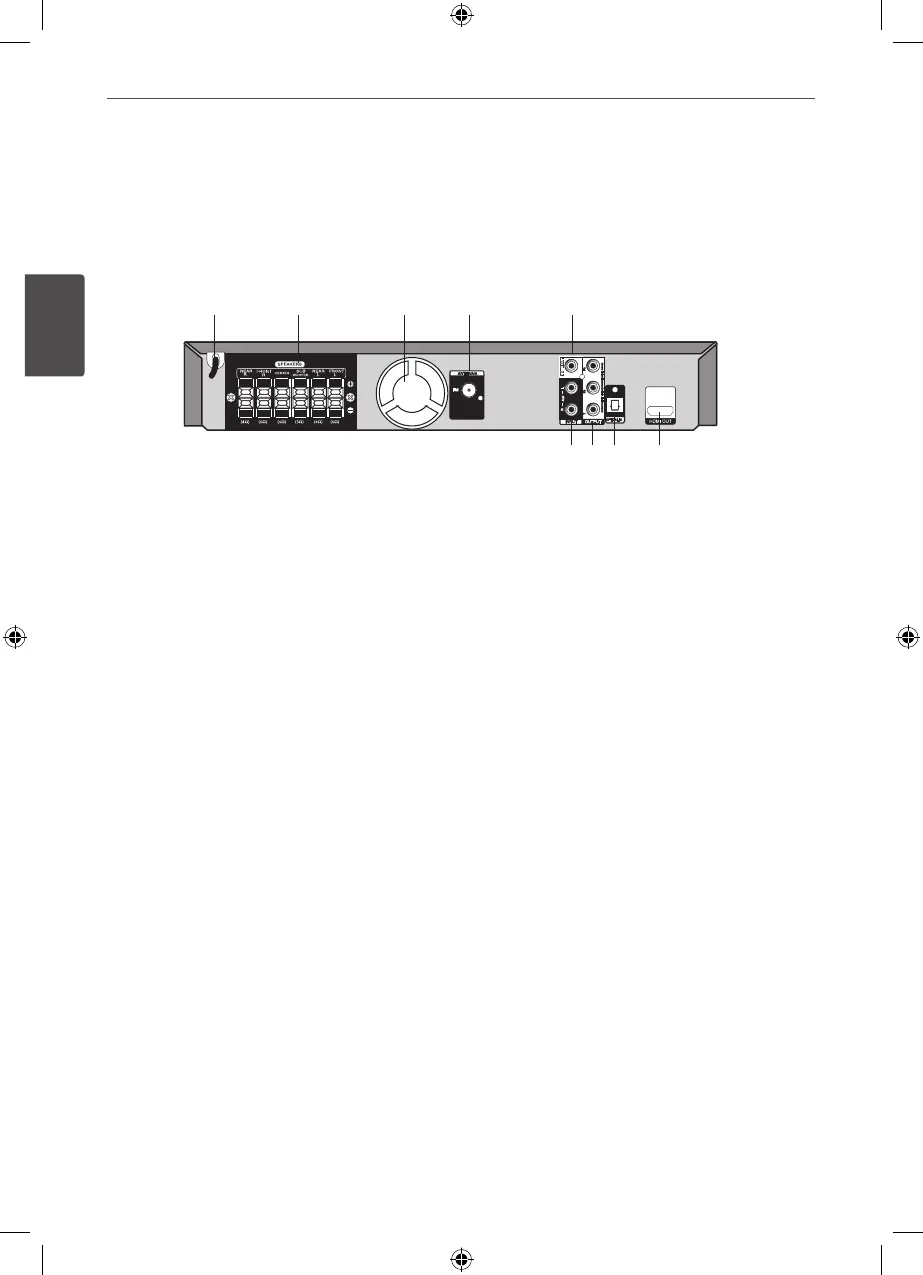

Rear panel
a
Power cord
b
Speakers connectors
Connect the speaker cables.
c
Cooling Fan
d
Antenna Connector
FM- Connects the FM wired antenna
e
VIDEO OUT
Connect to a TV with video inputs.
f
HDMI OUT (Version 1.2A)
Connect to TV with HDMI inputs.
(Interface for digital audio and video)
g
OPTICAL IN
Connect to optical audio equipment.
h
COMPONENT VIDEO (Y PB PR)OUTPUT
(PROGRESSIVE SCAN)
Connect to a TV with Y PB PR inputs.
i
AUX (L/R) INPUT
Connect to an external source with 2
channel audio outputs.
a b c d e
ihg f
