LG ipLDK-60 - System Connection Diagram

ipLDK-60 SERVICE MANUAL
DIGITAL KEY TELEPHONE SYSTEM
2
1.1 System Connection Diagram
ipLDK-60 system can be connected to several externals and internal line for call processing as following Figure1.1.1
System connection diagram.

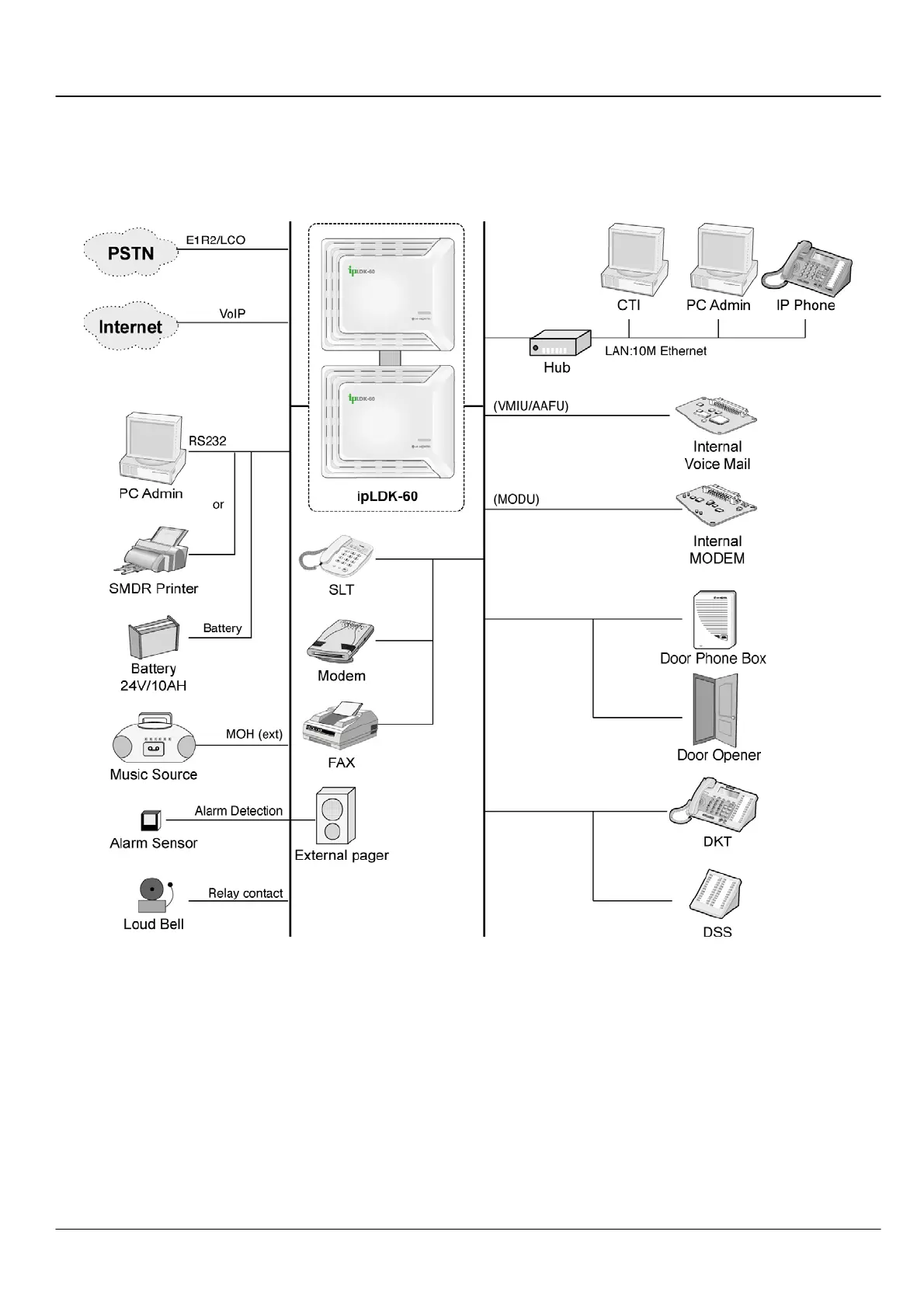

Figure 1.1.1 System Connection (ipLDK-60)
