3. TECHNICAL BRIEF

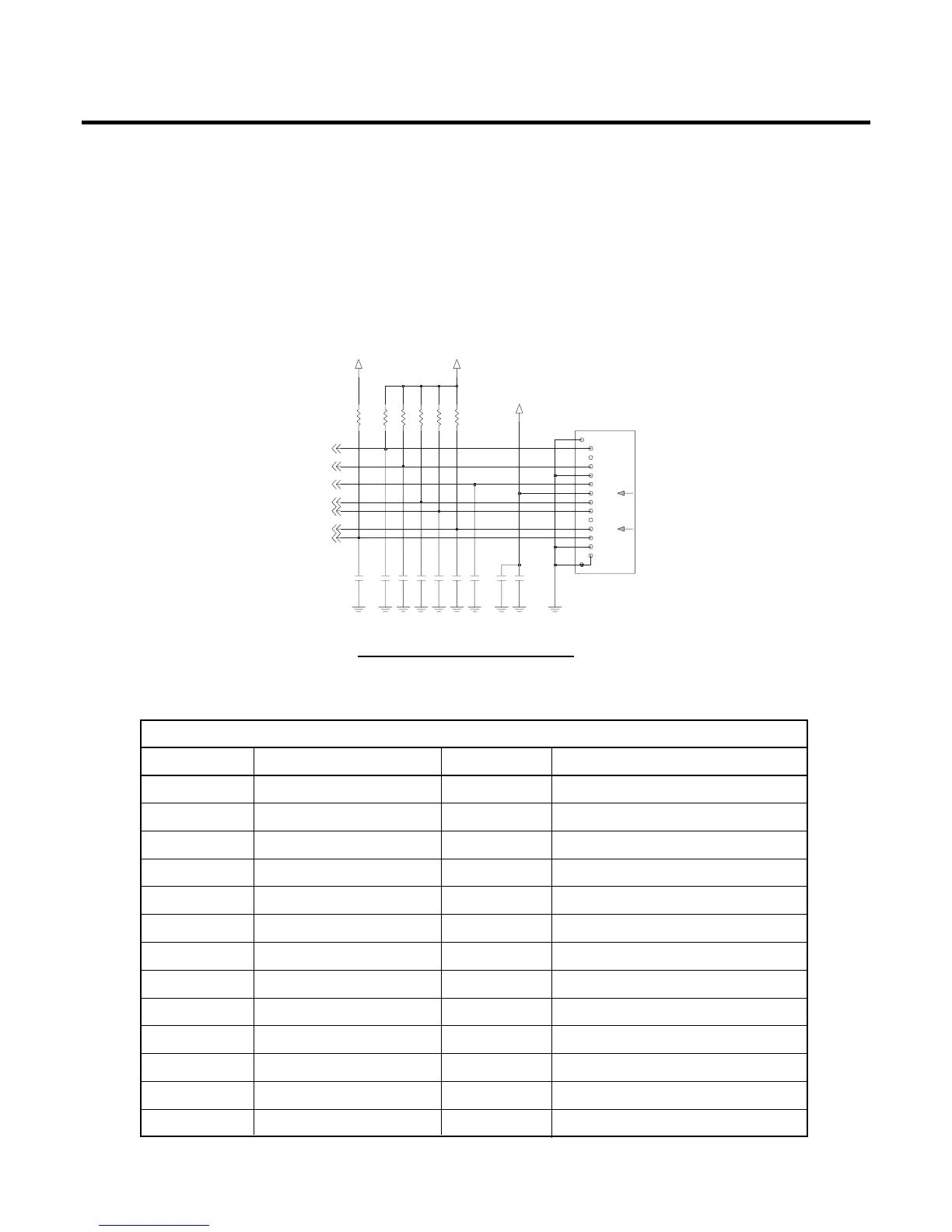

3.6 Micro SD external memory Interface
In KS360 series a Micro SD slot for external Memory is connected to PMB8888.
Micro SD memory pad assign.
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Figure 8. Micro SD Card Circuit
MICRO SD Connector
2V62_VIO
27p27p
C533C531
27p
C530
100K
27p
C532
R504
100KR502 100KR503
C534
2V9_VMMC
1u
VDD
VSS
S500
CD_DAT3
CLK
CMD
DAT0
DAT1_2
DAT2
DETECT_A
DETECT_B
DUMMY1
DUMMY2
DUMMY3
GND
2V9_VMMC
AXA463062P
100KR508 100KR500
27p
C529
27p27p
C527 C528C526
27p
100KR501
MMC_CMD
MMC_CLK
MMC_D0
MMC_D1
MMC_DET
MMC_D2
MMC_D3
SD mode
Pin No. Name Type Description
DAT1_2 MMC_D1 I/O Data bit [1]
DUMMY1 NC
DAT0 MMC_D0 I/O Data bit [0]
VSS GND GND Ground
CLK MMC_CLK I Clock
VDD 2V9_VMMC Power Power
CMD MMC_CMD I/O Command response
CD_DAT3 MMC_D3 I/O Data bit [1]
DUMMY2 NC
DAT2 MMC_D2 I/O Data bit [2]
DETECT_A MMC_DET
DETECT_B GND GND Ground
DUMMY3 GND GND Ground

LG KS360 Specifications

General

Display type	TFT
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	15 MB
Rear camera resolution (numeric)	2 MP
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Talk time (2G)	5 h
Battery capacity	800 mAh
Standby time (2G)	444 h
Form factor	Slider
Text prediction system type	T9
Personal info management (PIM)	Alarm clock, Calendar, Notes
Keyboard layout	QWERTY
Bluetooth version	2.0+EDR
Data network	EDGE, GPRS

Weight and Dimensions

Depth	16.8 mm
Width	51 mm
Height	101.5 mm
Weight	111.5 g
