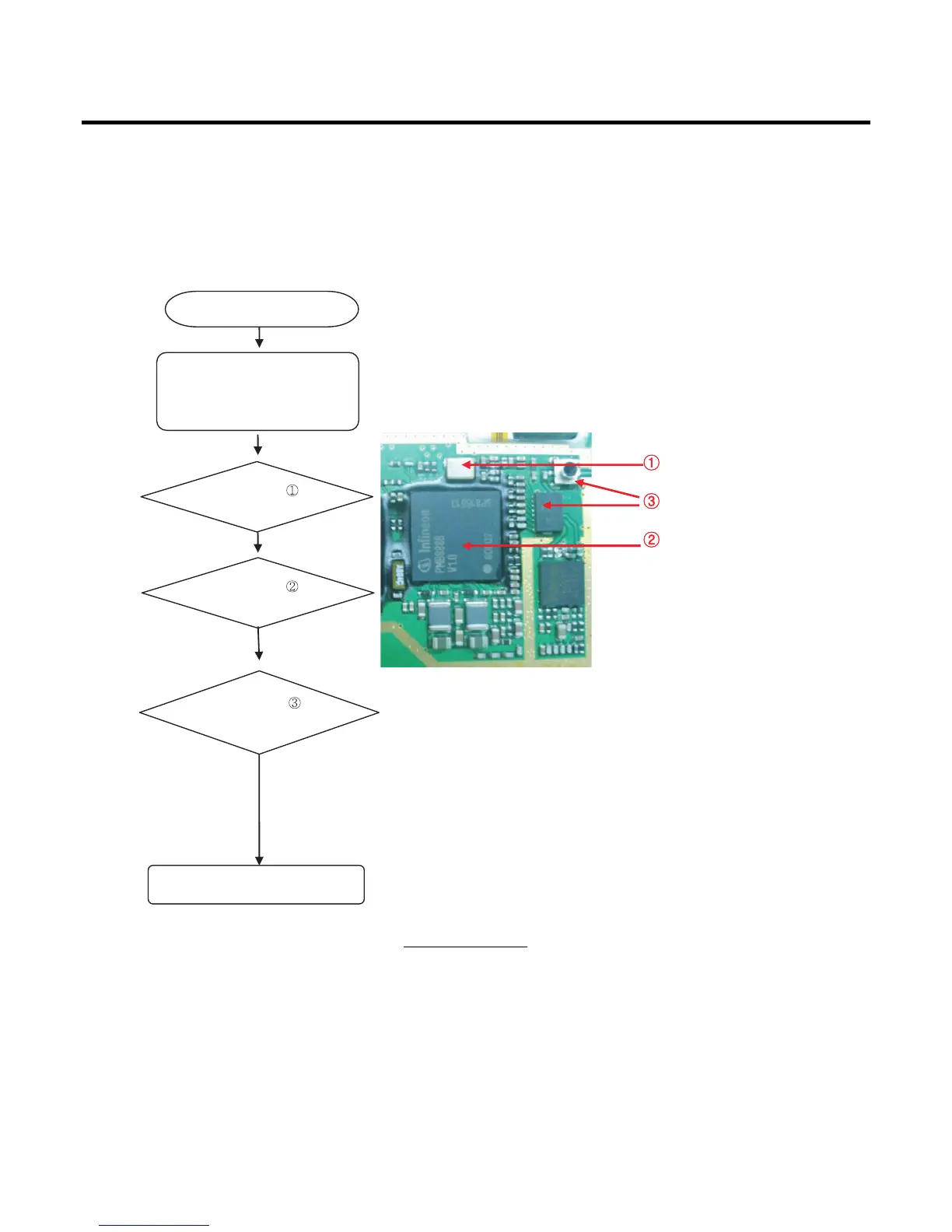

5.14 Trouble Shooting of Receiver Part
START
Check point
VCTCXO
Check point
PLL Control
Setup Test Equipment
Cell Power : ñ74dBm
EGSM CH30
DCS CH699
Re-Download S/W & CAL
VCTCXO
MobileSW&FEM
PLL
Check point
Mobile SW & FEM
Main PCB Bottom
