Directview LCD Training 41 Disassembly
DISASSEMBLY
LARGE SCREEN MODELS - PART 2
This example covers the models with CableCard. The example was made using the 32LX1D. It is very
similar to the 26LX1D, 26LX2D, 32LP1D, and 32LX2D.
1
2
3

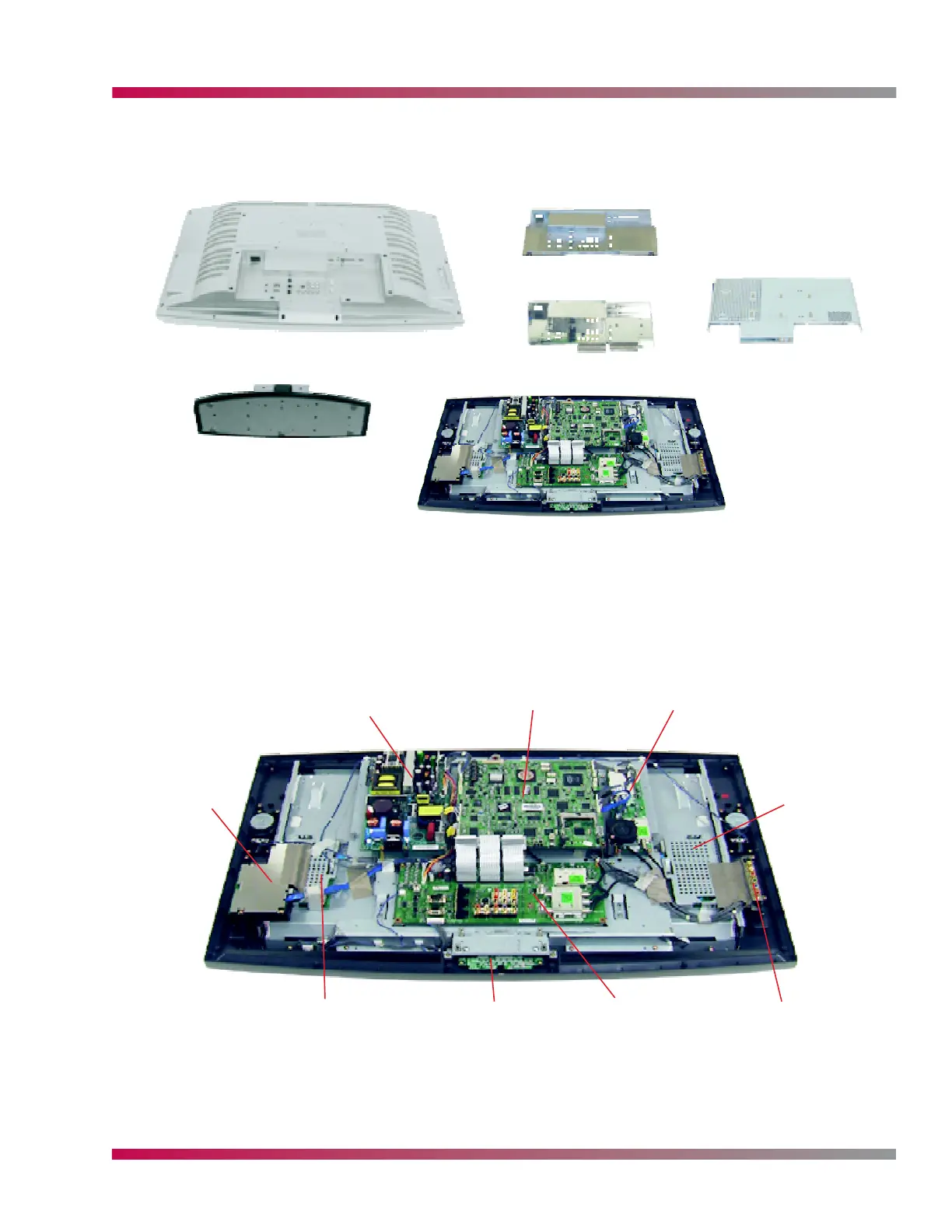

1) Remove the stand and back cover.
2) Remove the Jackpack trim piece and shield.
3) Remove the main shield.
Now most parts can be accessed.
Control
Panel
Memory
Card
Reader
Ballast Side Jackpack
Main PCBPower Supply Digital Tuner
Ballast
Jackpack
& Analog Tuner
To Next Page
