Indoor Unit Installation
Installation Manual 11
ENGLISH
2. Duct type
• Apply a joint-canvas between the unit and
duct to absorb unnecessary vibration.
• Apply a filter Accessory at air return hole.
• Install the unit leaning to a drainage hole
side as a figure for easy water drainage.
• A place where the unit will be leveled and
that can support the weight of the unit.
• A place where the unit can withstand its
vibration.
• A place where service can be easily
perfor
med.

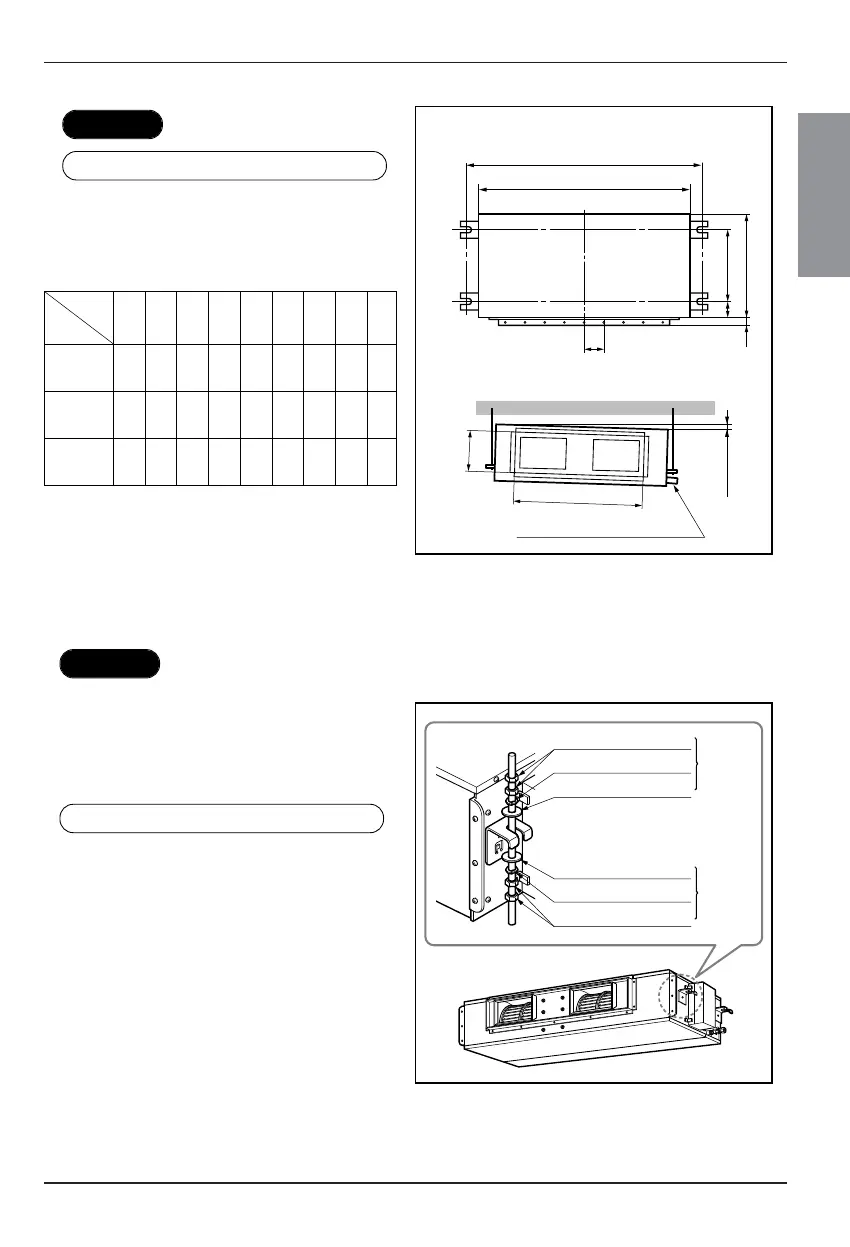

CASE 1
POSITION OF SUSPENSION BOLT
CASE 2
POSITION OF CONSOLE BOLT
(Unit:mm)
Drainage Hole
M10 Nut
M10 SP. washer
M10 washer
X 8
X 4
(Local
supply)
X 4
M10 Nut
M10 SP. washer
M10 washer X 4
X 4
(Local
supply)
X 8
A
B
C
D
(G)
H
I
EF
Dimension
Capacity
ABCDEF(G)HI
18 kBtu/h
24 kBtu/h
30 kBtu/h
36 kBtu/h
48 kBtu/h
932 880 355 45.5 450 30 87 750 163
1 232 1 182 355 45.5 450 30 87 830 186
1 292 1 230 477 56 590 30 120 1 006 294
