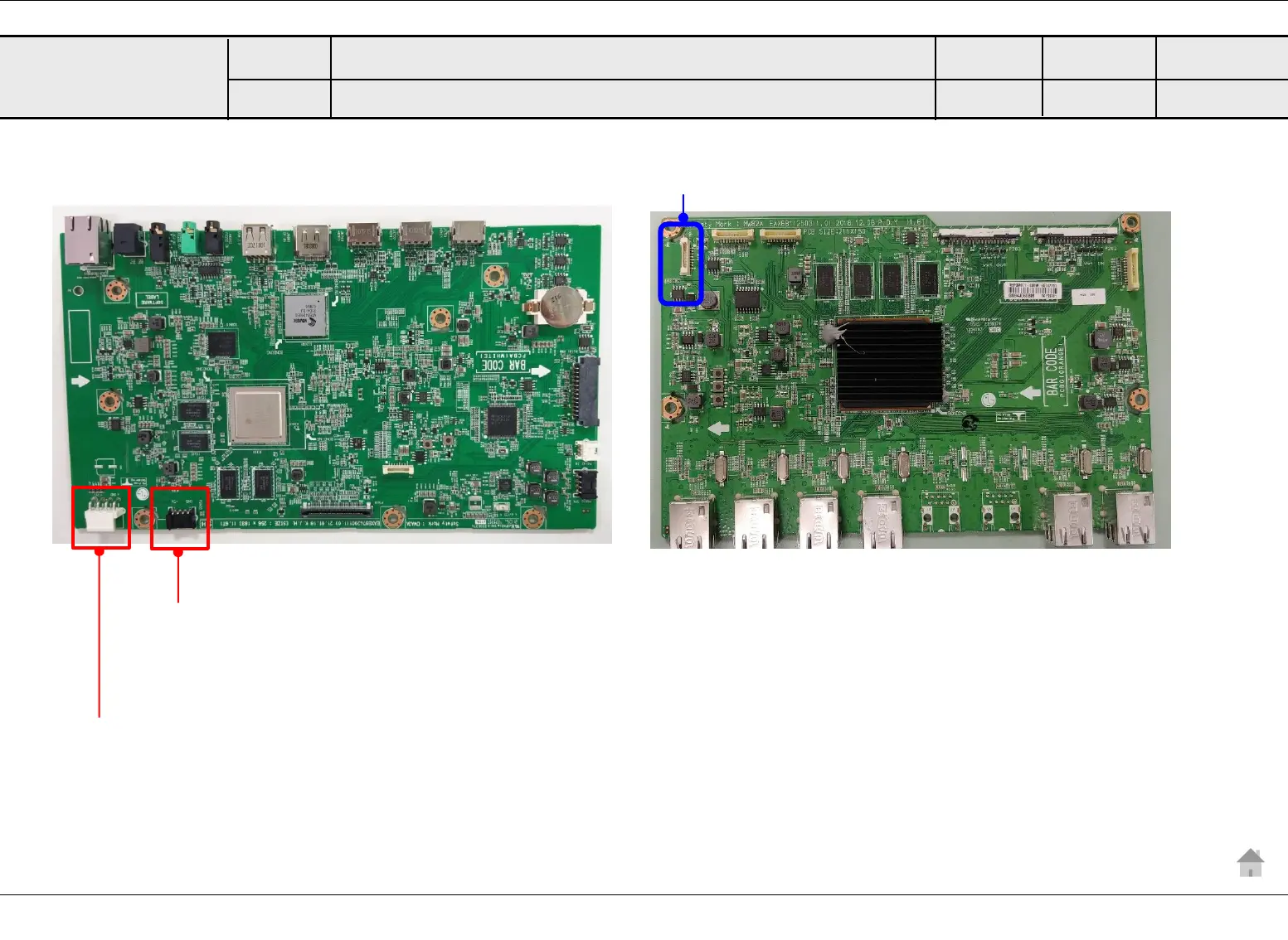

Check the power of the system controller's main / FPGA board
B. Power error
B1
P200
12V supplied from 12V PSU
P2400
5V_ST powered from Power controller board
①
③
AIO136
LED SIGNAGE
Content
P204
12V powered from main board
②
