4. Heating Mode Operation (Except Cooling Model)

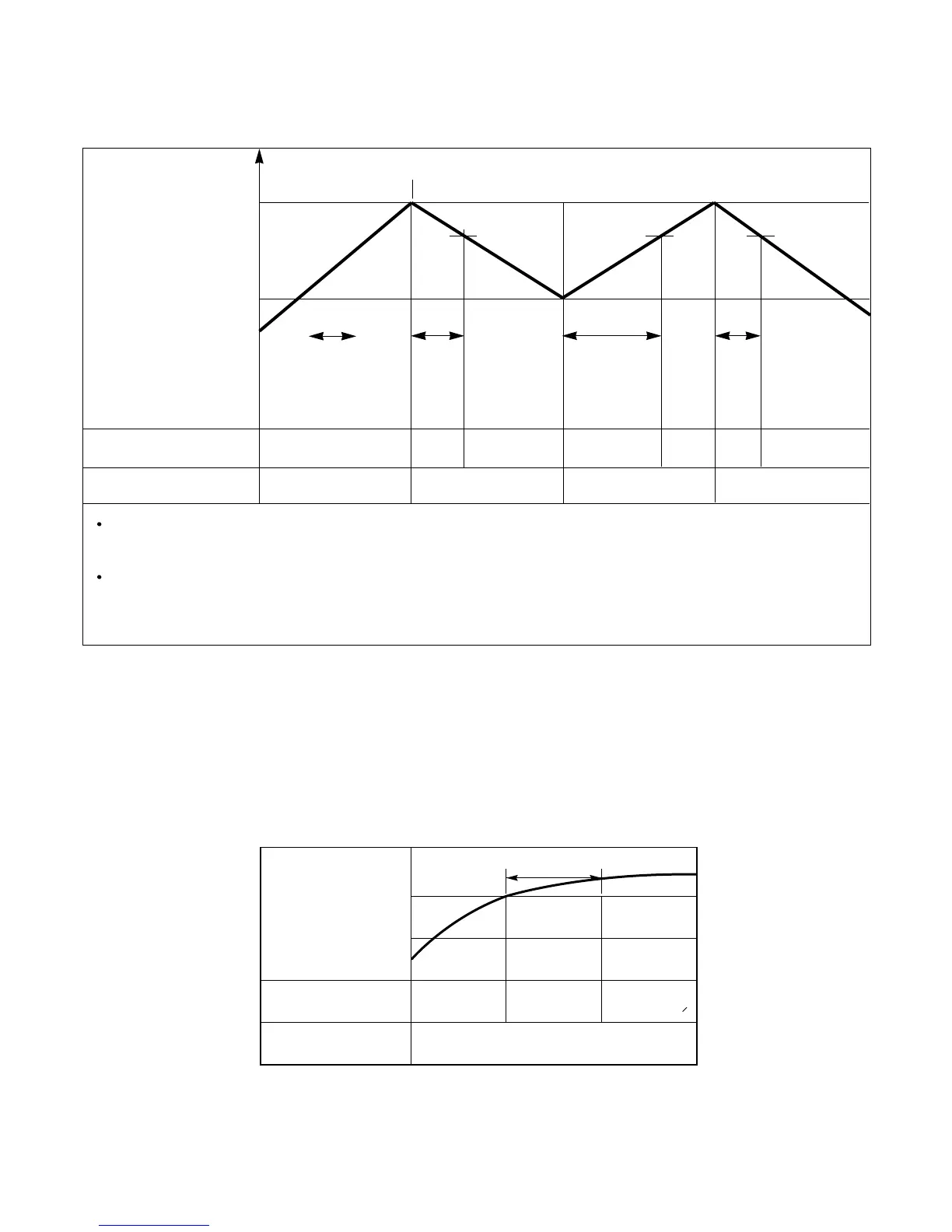

The unit will operate according to the setting by the remote controller and the operation diagram is shown as following.
5. Hot-Start Control
• The indoor fan stops until the evaporator piping temperature will be reached to 25°C.
• The operation diagram is as following.
Intake Air temp.
Setting temp.+3°C
(Compressor OFF)
Setting temp.
(Compressor ON)
INDOOR FAN
COMPRESSOR ON OFF ON OFF
A point; While the indoor Heat-Exchanger temperature is higher than 40°C fan operates at low speed, when
it becomes lower than 40˚C fan stops.
B point; When the indoor Heat-Exchanger temperature is higher than 51(42)°C, fan operates at selected fan
speed, when it becomes lower than 48(39)°C, the fan operates at low speed.
Selecting fan
speed
minimum
10sec.
1min
A
A
minimum
1min.
minimum
10sec.
B
