LG LCS1410SW Service Manual

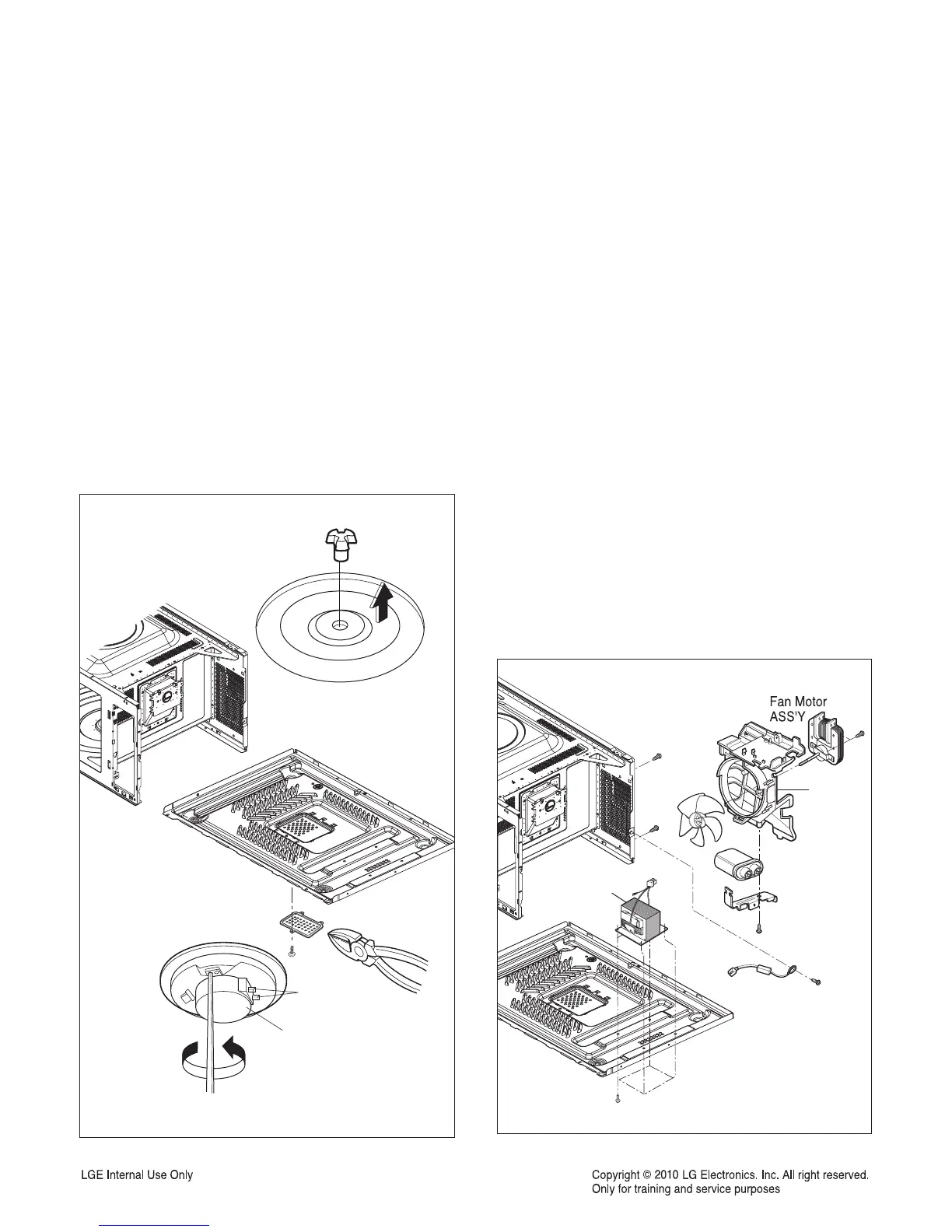

H. REMOVING THE TURNTABLE MOTOR
1) Remove the turntable and rotating ring.
2) Lay the unit down on its back.
3) Remove the turntable motor cover.
The turntable base cover is easily removed by
pinching the eight parts with a wire cutting.
4) Disconnect the leadwire from the turntable motor
terminals.
5) Remove the screw securing the turntable motor to the
oven cavity ASS’Y
6) After repairing the motor, rotate the removed turntable
motor cover.
7) Fit the turntable motor cover’s projecting part to the
base plate slit.
NOTE:
1. Remove the wire lead from the turntable motor VERY
CAREFULLY.
2. Be sure to grasp the connector, not the wires, when
removing.
I. HIGH VOLTAGE TRANSFORMER
REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from magnetron, high voltage
transformer, and capacitor.
3) Remove the screw holding the high voltage transformer
to the baseplate.
J. FAN MOTOR ASSEMBLY / REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from fan motor and high voltage
capacitor.
3) Remove the two screws holding the the suction guide
ASS’Y to the oven cavity and remove the high voltage
diode earth screw.
4) Remove the two screws holding the fan motor ASS’Y to
the suction guide ASS’Y.
K. HIGH VOLTAGE CAPACITOR AND
DIODE REMOVAL
1) Discharge the high voltage capacitor.
2) Disconnect the leadwire from fan motor and high voltage
capacitor.
3) Remove the screw holding the suction guide ASS’Y to the
oven cavity and remove the high voltage diode earth
screw.
4) Remove the screw holding the high voltage capacitor
bracket.
H.V.
Transformer
Suction
Guide
H.V.
Diode
5-6
Wire Leads
Turntable Motor
