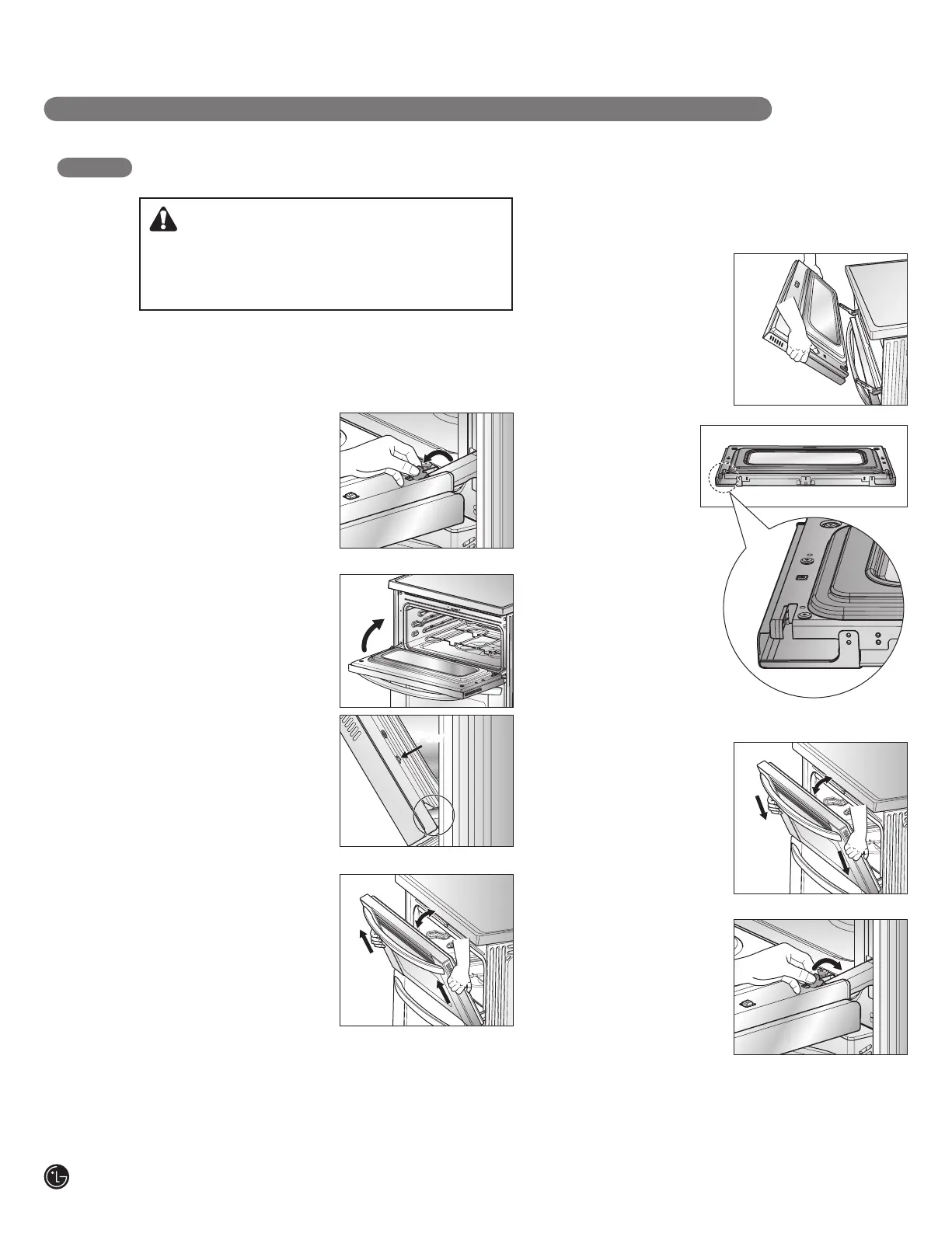

REMOVING & REPLACING THE LIFT-OFF OVEN DOOR
MAINTENANCE
UPPER OVEN
To remove the door:
Step. 1
Fully open the door.
Step. 2
Lift up on the hinge lock
toward the oven frame
until they stop.
Step. 3
Close the door to 30
degrees (you will feel the
door stop). The hinge lock
will contact the oven
frame.
Step. 4
On both sides of the door,
press down on the release
buttons on each hinge.
Step. 5
Lift door up until it is clear
of the hinge.
To replace the door:
Step. 1
Be sure both hinges are in
a 30 degree position.
Step. 2
Slide the door back onto
the hinges until you hear a
solid click and the release
buttons have
engaged.
Step. 3
Fully open the door.
Step. 4
Push the hinge locks
down onto the hinge.
Step. 5
Close the oven door.
CAUTION
• Be careful when removing and lifting the door.
• DO NOT lift the door by the handle.
- The door is very heavy.
Release
buttons
Hinge Arm
Slot
Release
buttons
Hinge Arm
Slot
Release
buttons
Hinge Arm
Slot
Release
buttons
Hinge Arm
Slot
Release
buttons
Hinge Arm
Slot
about 30°
about 30°
Push
Release
buttons
Hinge Arm
Slot
about 30°
