For Authorized Service Technicians
- 32 -

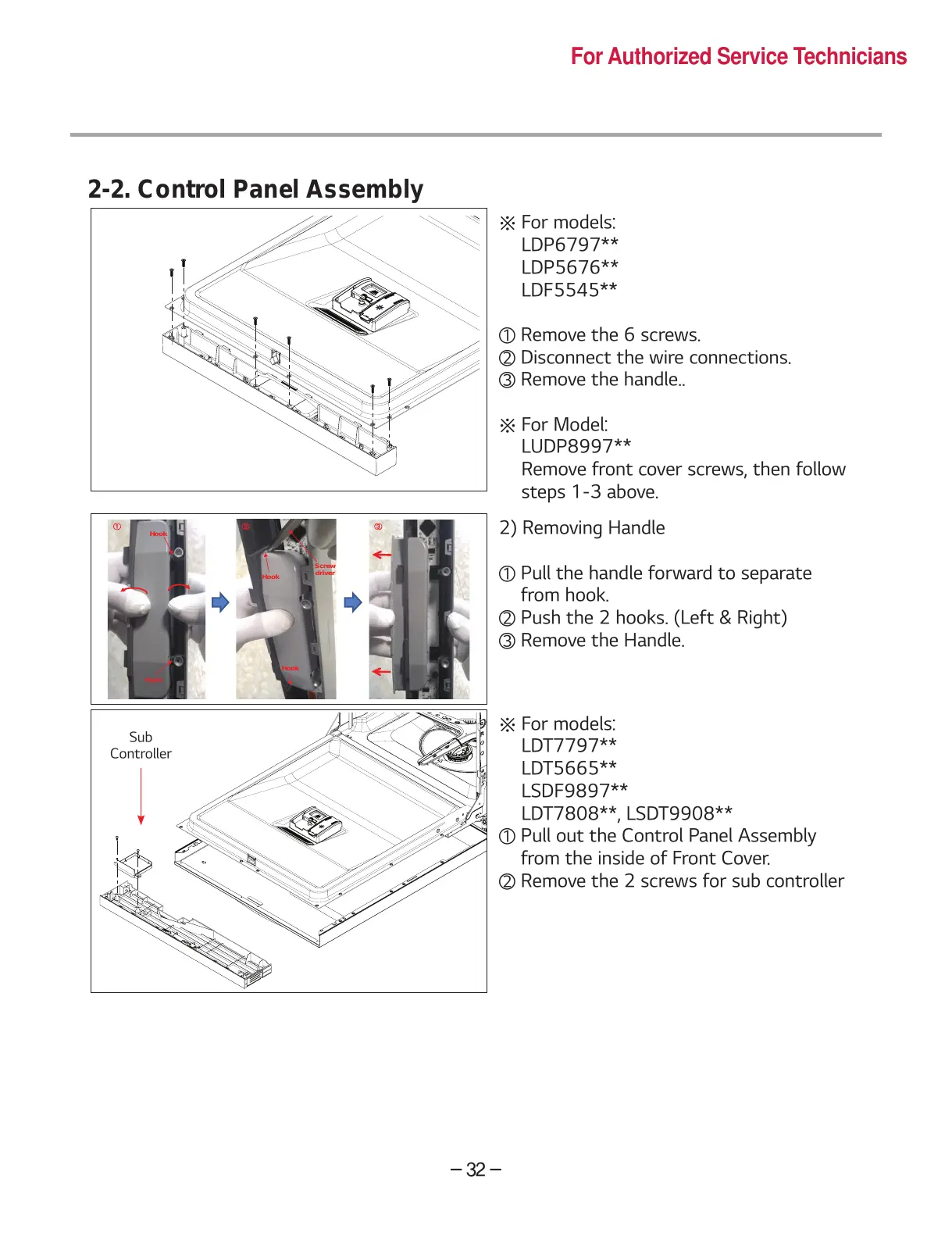

2-2. Control Panel Assembly
※ For models:
LDP6797**
LDP5676**
LDF5545**
① Remove the 6 screws.
② Disconnect the wire connections.
③ Remove the handle..
※ For Model:
LUDP8997**
Remove front cover screws, then follow
steps 1-3 above.
Hook
Hook
ྙ ྛ
Hook
Screw
driver
ྚ
Hook
2) Removing Handle
① Pull the handle forward to separate
from hook.
② Push the 2 hooks. (Left & Right)
③ Remove the Handle.
※ For models:
LDT7797**
LDT5665**
LSDF9897**
LDT7808**, LSDT9908**
① Pull out the Control Panel Assembly
from the inside of Front Cover.
② Remove the 2 screws for sub controller
Sub
Controller
To Next Page
