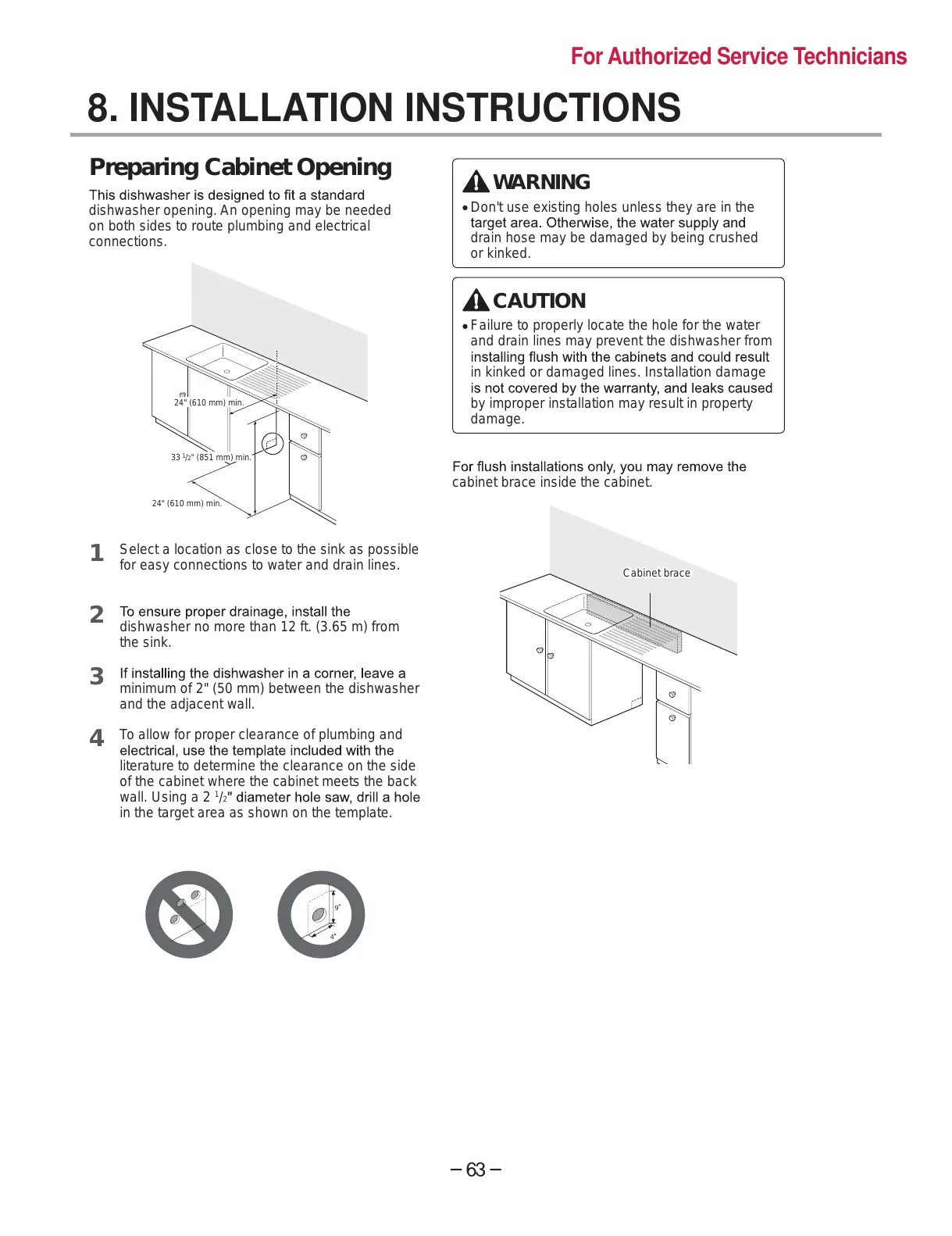

8. INSTALLATION INSTRUCTIONS

Preparing Cabinet Opening

dishwasher opening.

An opening may be needed

on both sides to route plumbing and electrical

connections.

24" (610 mm) min.

33 /

" (851 mm) min.

24" (610 mm) min.

Select a location as close to the sink as possible

for easy connections to water and drain lines.

dishwasher no more than 12 ft. (3.65 m) from

the sink.

minimum of 2" (50 mm) between the dishwasher

and the adjacent wall.

To allow for proper clearance of plumbing and

literature to determine the clearance on the side

of the cabinet where the cabinet meets the back

wall. Using a 2

in the target area as shown on the template.

WARNING

Don't use existing holes unless they are in the

drain hose may be damaged by being crushed

or kinked.

CAUTION

Failure to properly locate the hole for the water

and drain lines may prevent the dishwasher from

in kinked or damaged lines. Installation damage

by improper installation may result in property

damage.

cabinet brace inside the cabinet.

Cabinet brace
