For Authorized Service Technicians
- 64 -

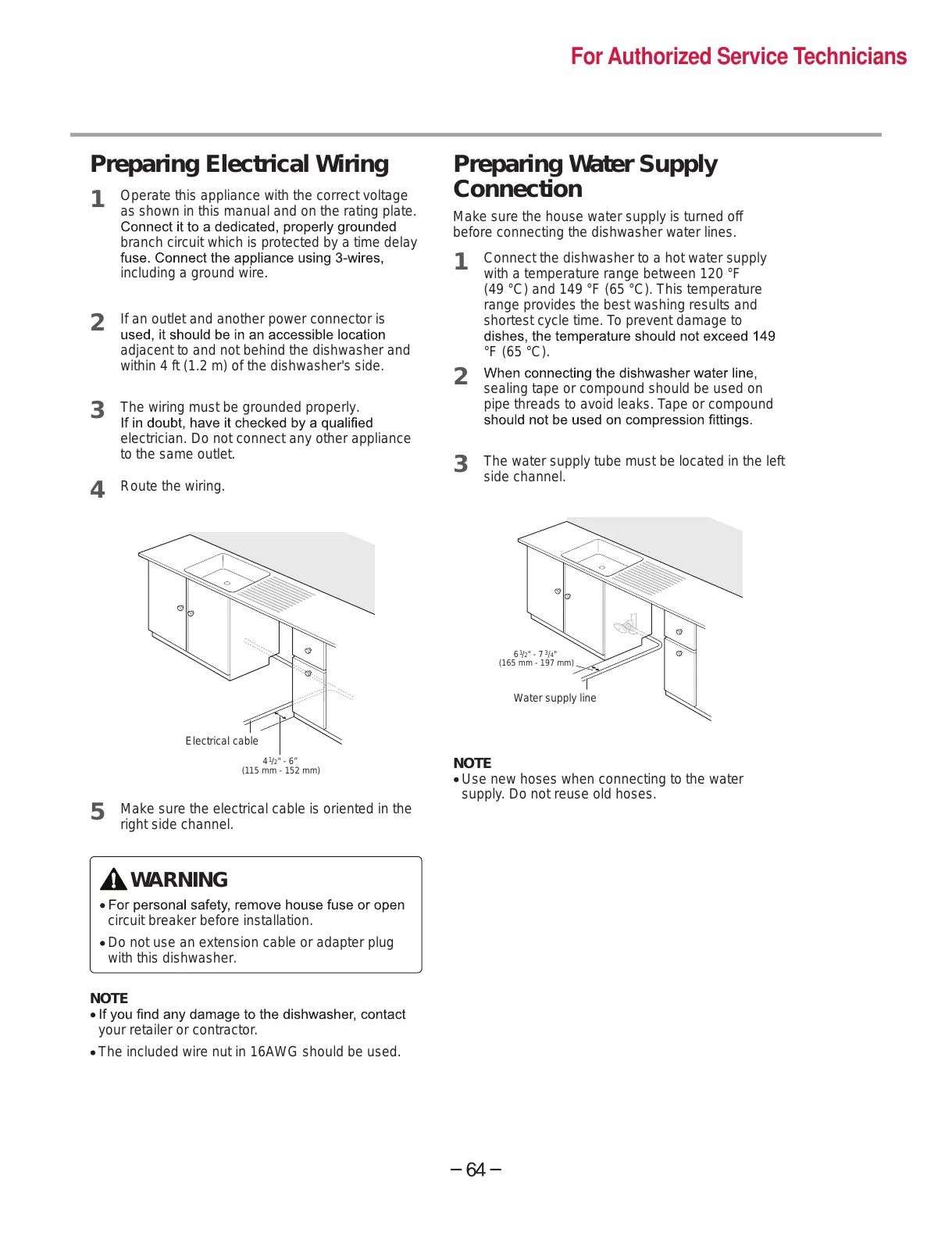

Preparing Electrical Wiring
1
Operate this appliance with the correct voltage
as shown in this manual and on the rating plate.
branch circuit which is protected by a time delay
including a ground wire.
If an outlet and another power connector is
adjacent to and not behind the dishwasher and
within 4 ft (1.2 m) of the dishwasher's side.
The wiring must be grounded properly.
electrician. Do not connect any other appliance
to the same outlet.
Route the wiring.
4 /2" - 6”
(115 mm - 152 mm)
1
Electrical cable
Make sure the electrical cable is oriented in the
right side channel.
WARNING
circuit breaker before installation.
Do not use an extension cable or adapter plug
with this dishwasher.
your retailer or contractor.
The included wire nut in 16AWG should be used.
Connection
Make sure the house water supply is turned off
before connecting the dishwasher water lines.
1
Connect the dishwasher to a hot water supply
with a temperature range between 120 °F
(49 °C) and 149 °F (65 °C). This temperature
range provides the best washing results and
shortest cycle time. To prevent damage to
°F (65 °C).
2
sealing tape or compound should be used on
pipe threads to avoid leaks. Tape or compound
3
The water supply tube must be located in the left
side channel.
6
/
2
" - 7 /
4
"
(165 mm - 197 mm)
13
Water supply line
NOTE
Use new hoses when connecting to the water
supply. Do not reuse old hoses.
