For Authorized Service Technicians
- 68 -

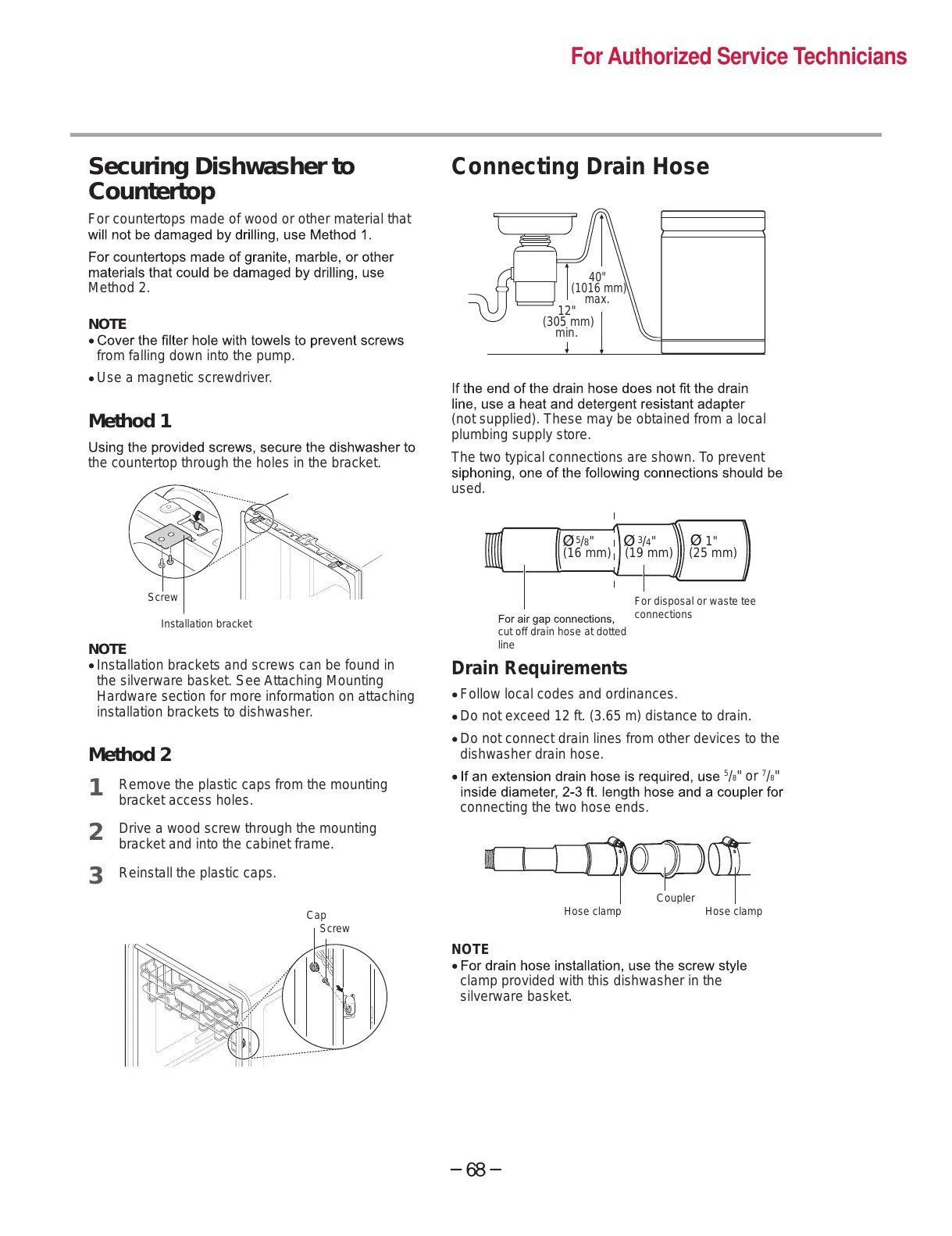

Securing Dishwasher to
Countertop
For countertops made of wood or other material that
Method 2.
NOTE
from falling down into the pump.
Use a magnetic screwdriver.
the countertop through the holes in the bracket.
Screw
Installation bracket
Installation brackets and screws can be found in
the silverware basket. See Attaching Mounting
Hardware section for more information on attaching
installation brackets to dishwasher.
Remove the plastic caps from the mounting
bracket access holes.
Drive a wood screw through the mounting
bracket and into the cabinet frame.
Reinstall the plastic caps.
Cap
Screw
40"
(1016 mm)
max.
12"
(305 mm)
min.
(not supplied). These may be obtained from a local
plumbing supply store.
The two typical connections are shown. To prevent
used.
/8"
(16 mm)
5
/4"
(19 mm)
3
1"
(25 mm)
cut off drain hose at dotted
line
For disposal or waste tee
connections
Drain Requirements
Follow local codes and ordinances.
Do not exceed 12 ft. (3.65 m) distance to drain.
Do not connect drain lines from other devices to the
dishwasher drain hose.
5
/
8
" or
7
/
8
"
connecting the two hose ends.
Hose clamp
Coupler
Hose clamp
NOTE
clamp provided with this dishwasher in the
silverware basket.
