PARTS AND FEATURES

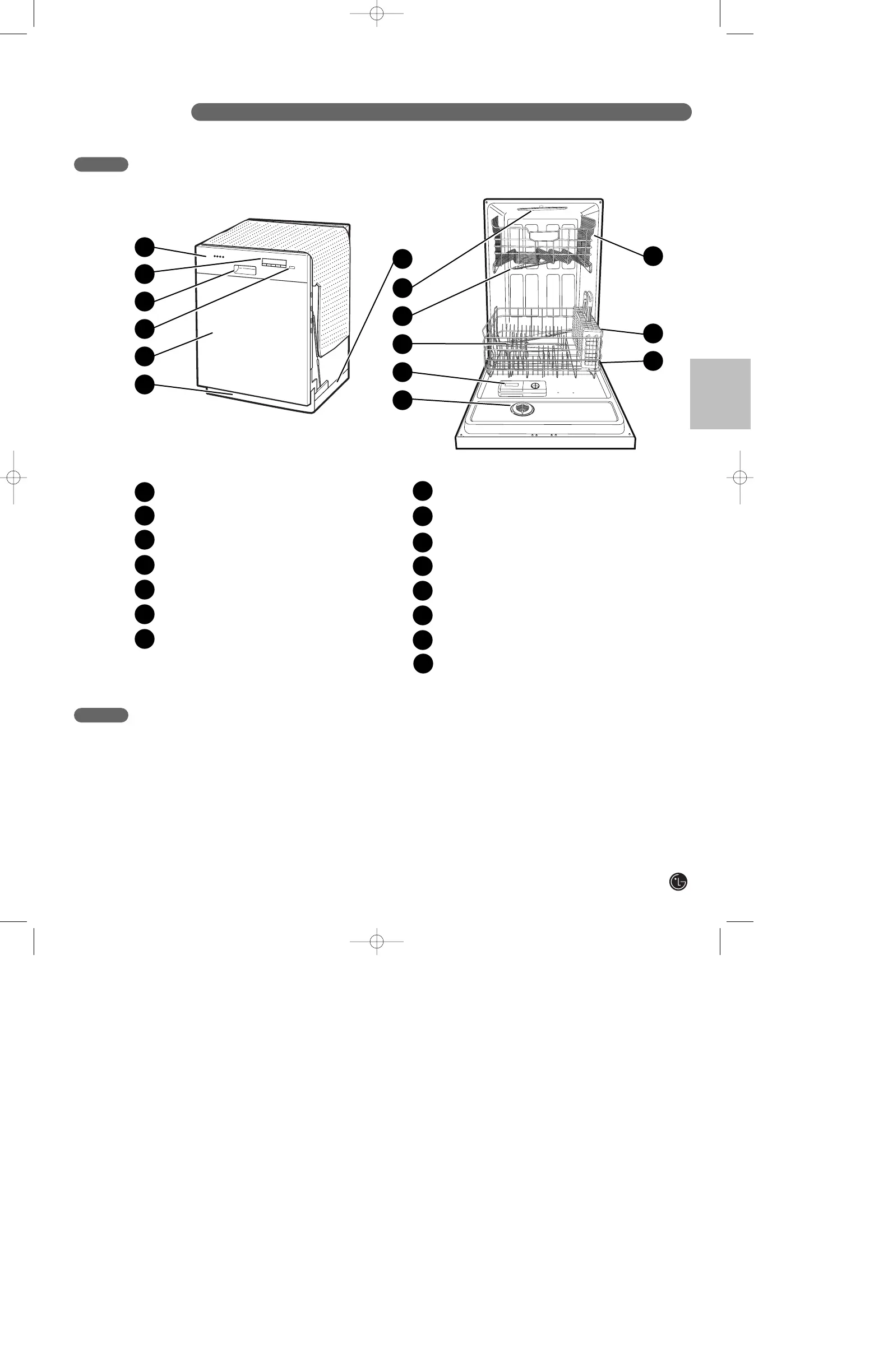

PARTS
CONTROL PANEL
FRONT DISPLAY
DOOR HANDLE
POWER BUTTON
FRONT COVER
LOWER COVER
BASE
1
2
5
6
3
4
7
10
11
8
9
13
14
15
12
TOP SPRAY ARM
UPPER SPRAY ARM
LOWER SPRAY ARM
DETERGENT & RINSE AID DISPENSER
VAPOR VENT COVER
UPPER RACK
SILVERWARE BASKET
LOWER RACK
1
2
5
6
3
4
7
8
9
10
11
14
15
12
13
English
SPECIFICATIONS
• Power Supply: 120V, 60 Hz AC only, minimum 15A circuit breaker
• Water Pressure: 20–120 psi (140–830 kPa)
• Size (WxDxH): 23
3
⁄4″ x 24
5
⁄8″ x 33
5
⁄8″ (603 mm x 625 mm x 854 mm)
• Inlet Water Temperature: 120°F (49°C)
• Weight: 89 lbs. (40.5 kg)
The appearance and specifications are subject to change without notice.
