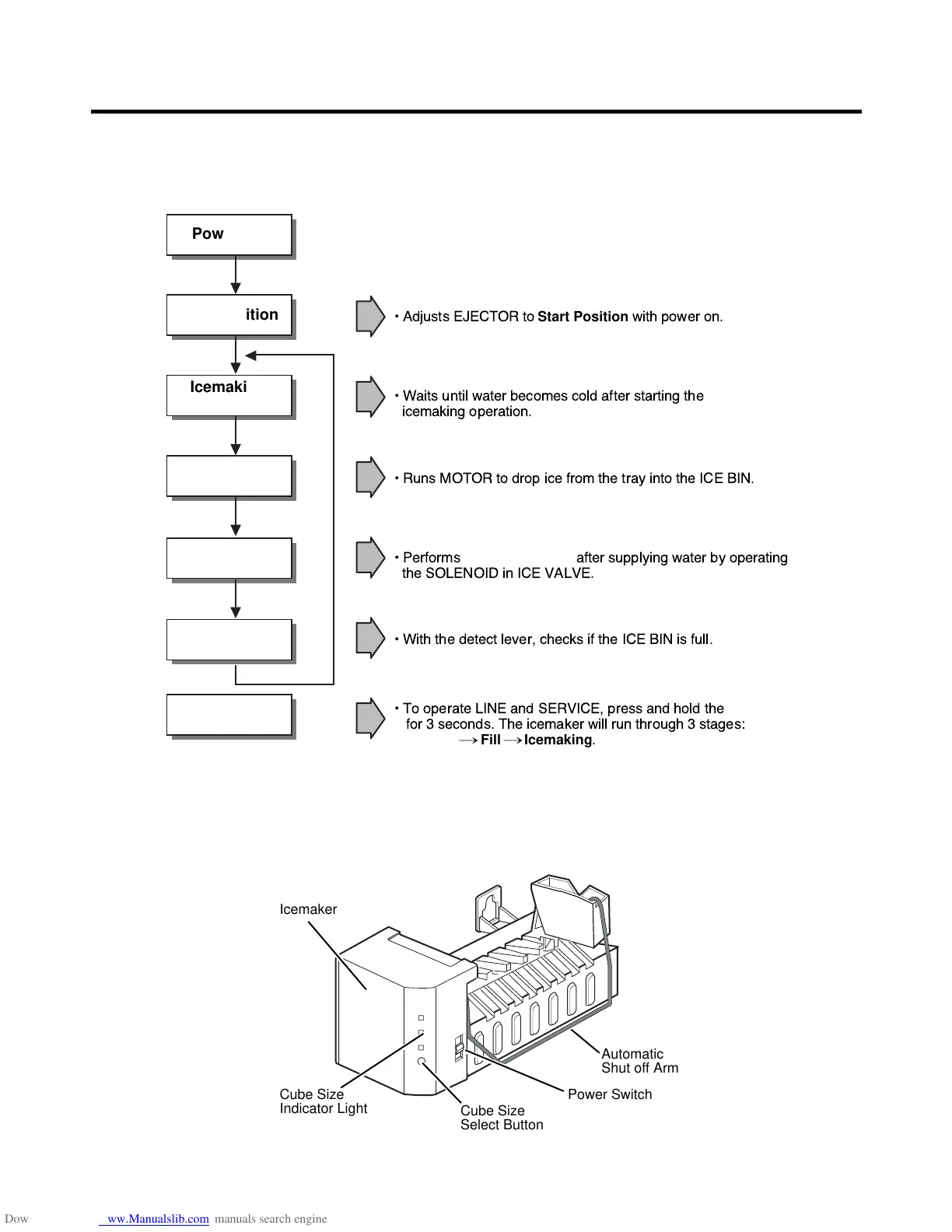

7-1 OPERATION PRINCIPLE
7-1-1 Operation Principle of Icemaker
7. OPERATION PRINCIPLE AND REPAIR METHOD OF ICEMAKER
- 19 -
1. Turning the Icemaker stop switch off (O) stops the icemaking function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.
¥ Adjusts EJECTOR to
Start Position
with power on.
Power On
Start Position
Icemaking
Mode
Harvest
Mode
Park Position
Fill
Test Mode
¥ Waits until water becomes cold after starting the
icemaking operation.
¥ Runs MOTOR to drop ice from the tray into the ICE BIN.
¥ Performs
Icemaking Mode
after supplying water by operating
the SOLENOID in ICE VALVE.
¥ To operate LINE and SERVICE, press and hold the
Fill Key
for 3 seconds. The icemaker will run through 3 stages:
Harvest Fill Icemaking
.
¥ With the detect lever, checks if the ICE BIN is full.
To Next Page
