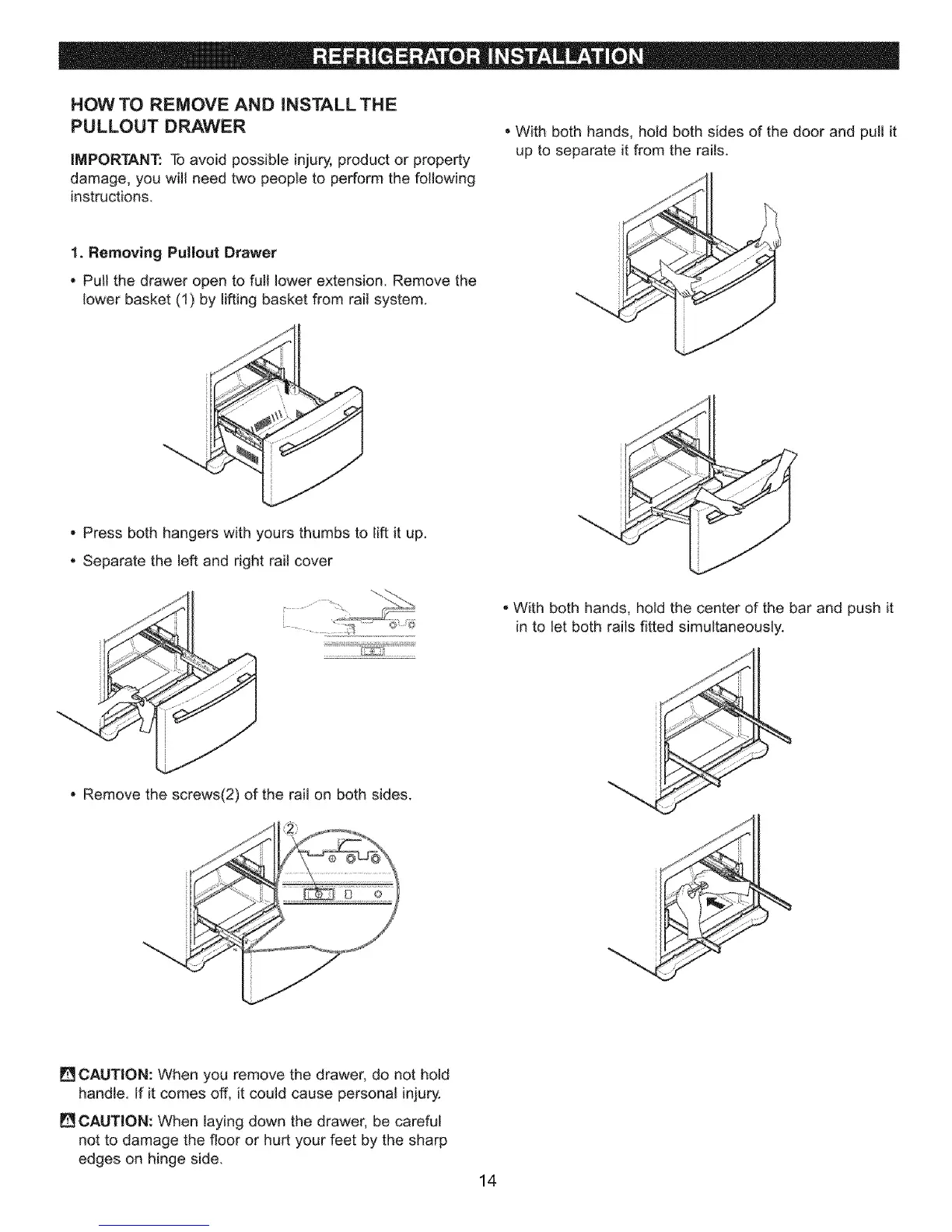

HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
, With both hands, hold both sides of the door and pull it
up to separate it from the rails.
1. Removing Pu|lout Drawer
= PuJtthe drawer open to full lower extension. Remove the
lower basket (1) by lifting basket from rail system.
• Press both hangers with yours thumbs to lift it up.
• Separate the left and right rail cover
i
.............____'_ ..........
Remove the screws(2) of the rail on both sides.
With both hands, hold the center of the bar and push it
in to let both rails fitted simultaneously.
"f
_CAUT|ON: When you remove the drawer, do not hold
handle. If it comes off, it could cause persona_ injury.
_CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.
14
