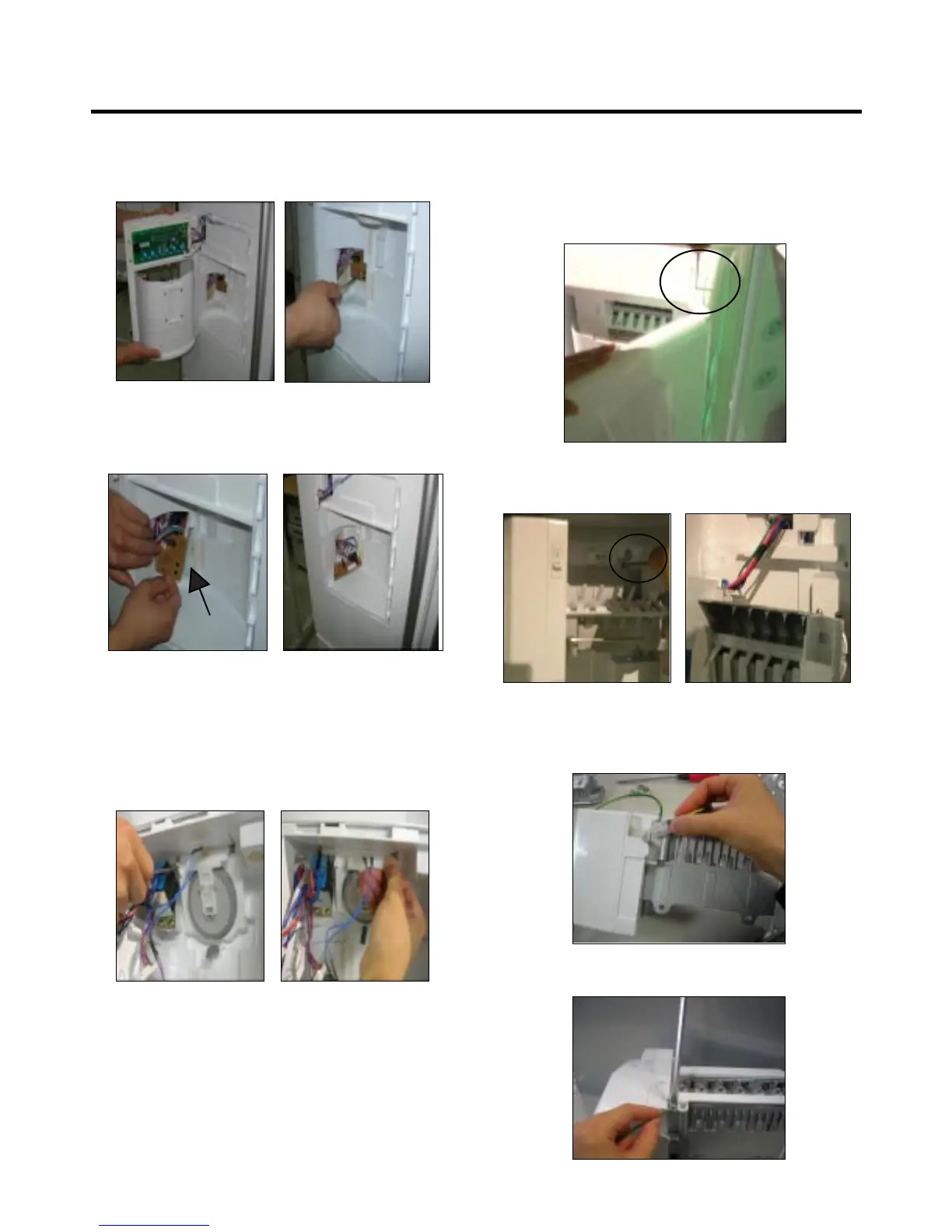

8-13 SUB PWB FOR WORKING DISPENSER
1) Loosen the screw on the sub PCB.
2) Pull the sub PCB down.
3) Disconnect the wire harness and replace the sub PCB
in the reverse order of removal.
8-14 DUCT DOOR REPLACEMENT
1) Pull up and out on the dispenser cover to remove.
2) Disconnect the wire harness.
3) Remove the funnel
4) Replace in reverse order.
8-15 ICE CORNER DOOR REPLACEMENT
1) Loosen the front screw as shown in the picture.
2) Lift up the hinge with one hand.
3) Pull out the Ice Corner Door with the other hand.
8-16 ICEMAKER ASSEMBLY
1) Loosen two screws as shown in the first picture.
2) Disconnect the wire harness and ground screw replace
theIcemaker assembly in the reverse order of removal.
3) Remove the ground connection screw.
hinge
- 58 -
