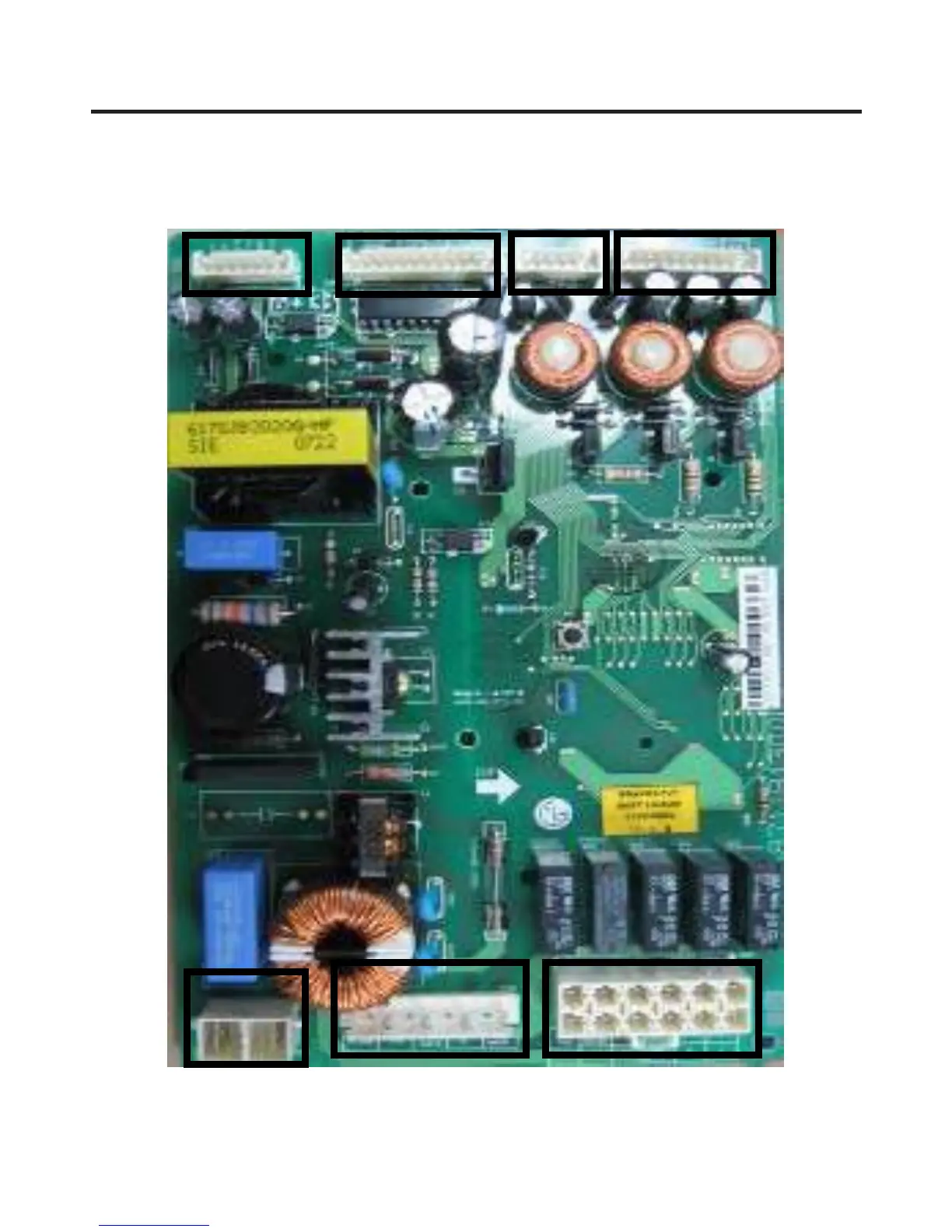

9-1. Main PCB Assembly
6871JB1431 (by July 2007)
CON1
CON2
CON3
CON4CON5
CON6
CON7
9. PCB ASSEMBLY
- 65 -
