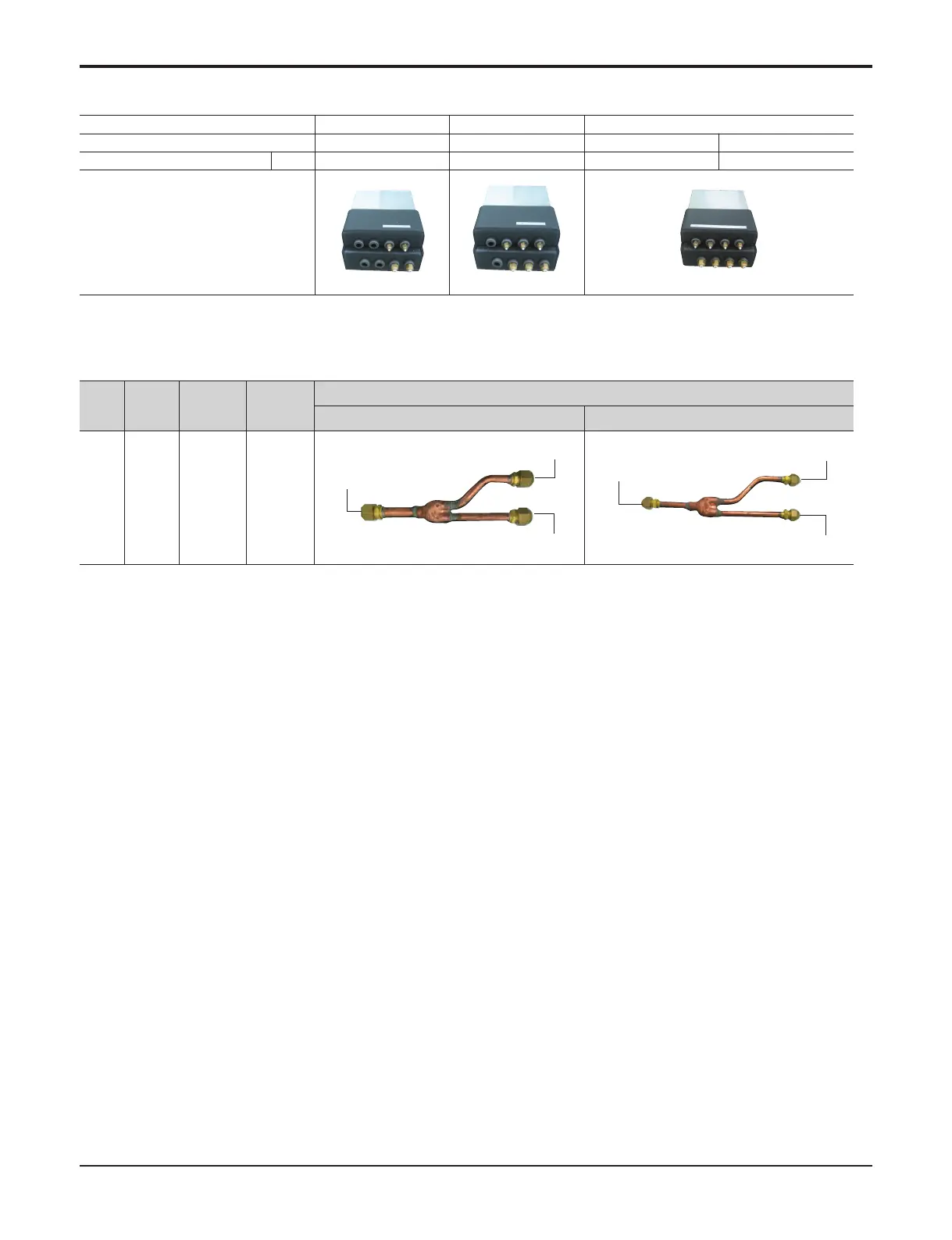

2.3 BD(Branch distributor) units

2.4 Branches

Branch

Type

No. of

Units

Accessory

Model Name

Applicable

Model

Specifications

Gas Liquid

Y-

Branch

PMBL5620

MULTI F MAX

To BD unit Ø19.05 (3/4)

Ø19.05 (3/4)

To ODU

Ø19.05 (3/4)

To BD unit Ø9.52 (3/8)

Ø9.52 (3/8)

To ODU

Ø9.52 (3/8)

No. of connectable indoor units(Min. ~ Max.)

1 ~ 2 1 ~ 3 1 ~ 4

Model name PMBD3620 PMBD3630 PMBD3640 PMBD3641

Connectable indoor unit capacity kBtu/h 9 ~ 24 9 ~ 24 9 ~ 24 9 ~ 36

BD unit
