(3) Carefully pull the ventilation motor ASS'Y out ofthe
microwave oven.(See Figure 18-b)
J. REMOVING THE TURNTABLE MOTOR
(1) Remove the glass tray and rotating ring.
(2) Remove the turntable shaft VERY CAREFULLY
with a hand.(Figure 19)
(3) Remove the base plate by removing 8 screws
securing it to the oven cavity.(Figure 20)
(4) Disconnect the leadwire from the turntable motor
terminals.
(5) Remove the 1 screws securing the turntable motor
to the oven cavity ASS'Y.(Figure 21)
NOTES:
• Remove the leadwire from the turntable motor
VERY CAREFULLY.
• Be sure to grasp the connector not the wires when
removing.

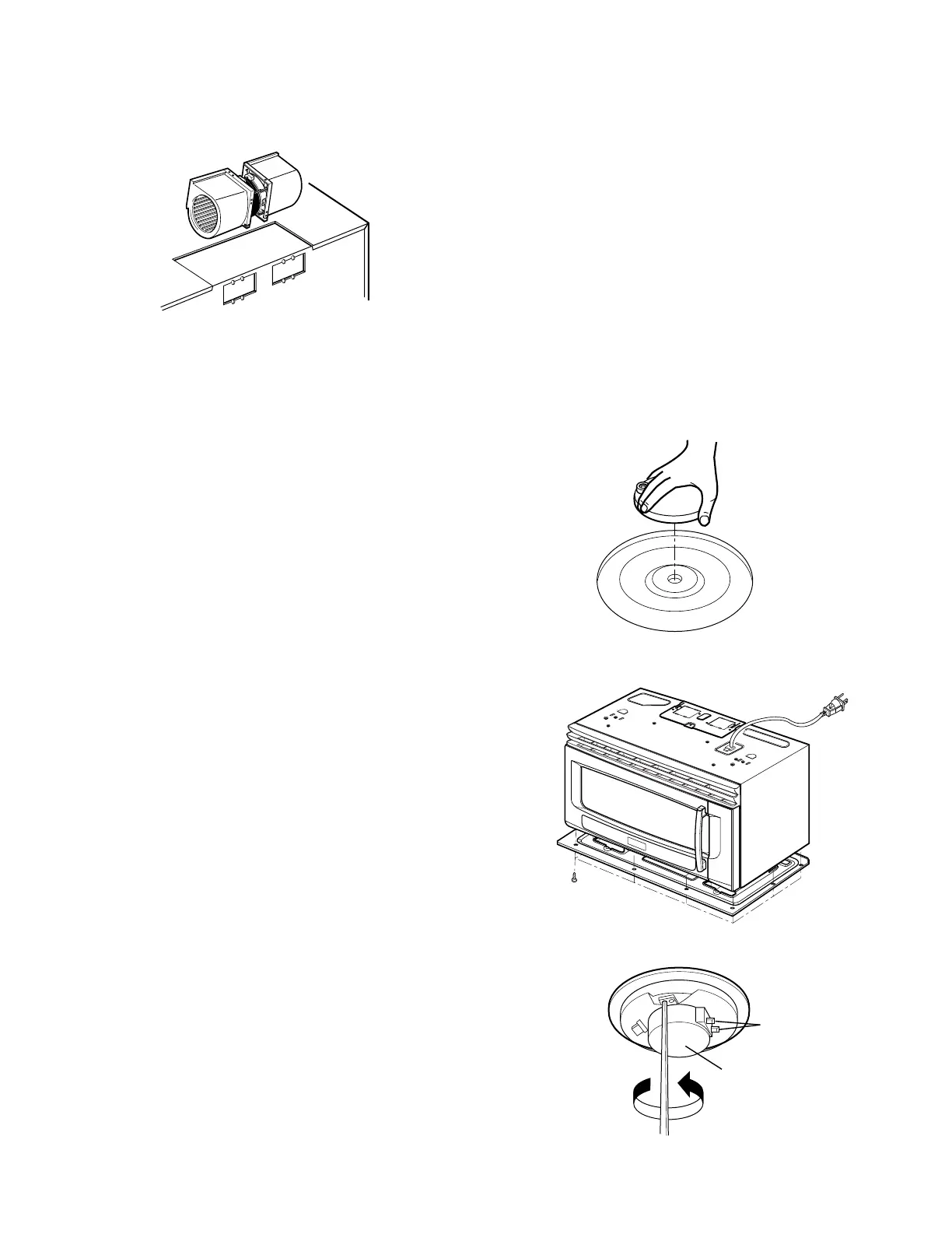

Figure 18-b
Figure 19
Figure 20
Figure 21
Wire Leads
Turntable Motor
To Next Page
