8-1

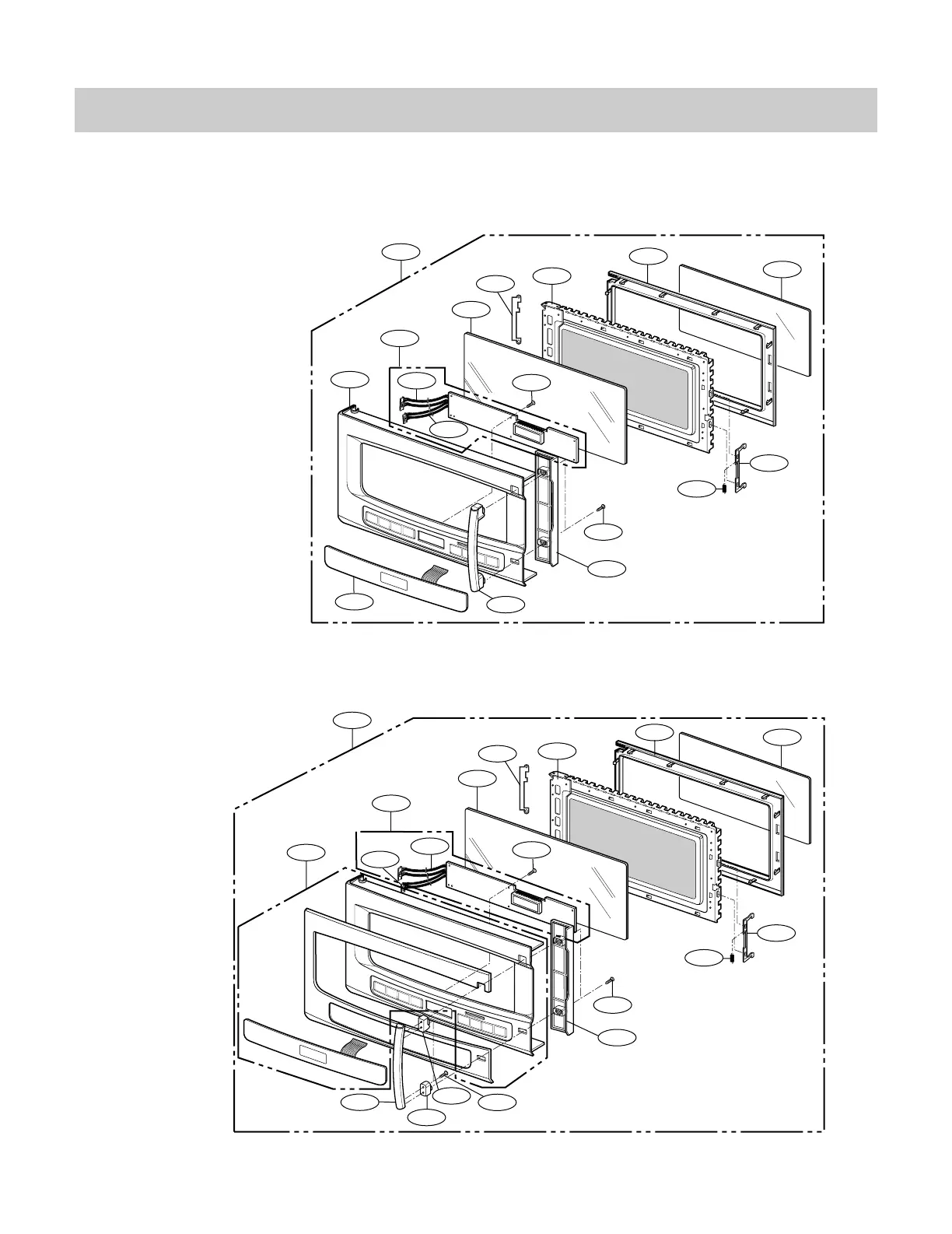

EXPLODED VIEW
DOOR P
ARTS
13536A
14890A
14890A
13551B
13581A
13581A
14760A
14760A
13213A
13213A
13552A
13552A
13536A
14026A
14026A
14970A
14970A
268771
268772
13806D
13806D
13650A
13650A
149802
149801
23506A
WTT029
WMT022
WTT028
WTP004
WTP004
13551A
268771
268772
268711
268711
#EV#
FOR MODEL: LMVM2055SB
LMVM2055SW
FOR MODEL: LMVM2055ST
36
38
Table of Contents
Table of Contents
3
Specifications
4
Cautions
5
Installations
6
Operating Instructions
7
Control Panel
7
Control Panel Instructions
8
Overall Circuit Diagram
9
Schematic Diagram
9
Matrix Circuit for Touch Key Board
10
General Information for Service
11
General Precautions in Use
11
Trial Operation
11
Features and Specifications Features
11
Service Information
12
Precautions and Repair Service Tips
12
Microwave Leakage Test
13
Power Output Measurement
14
Disassembly Instructions
15
Interlock System
23
Interlock Continuity Test
25
Test and Checkout Procedures and Troubleshooting
26
Test Procedures
26
Checkout Procedures
30
Exploded View
37
