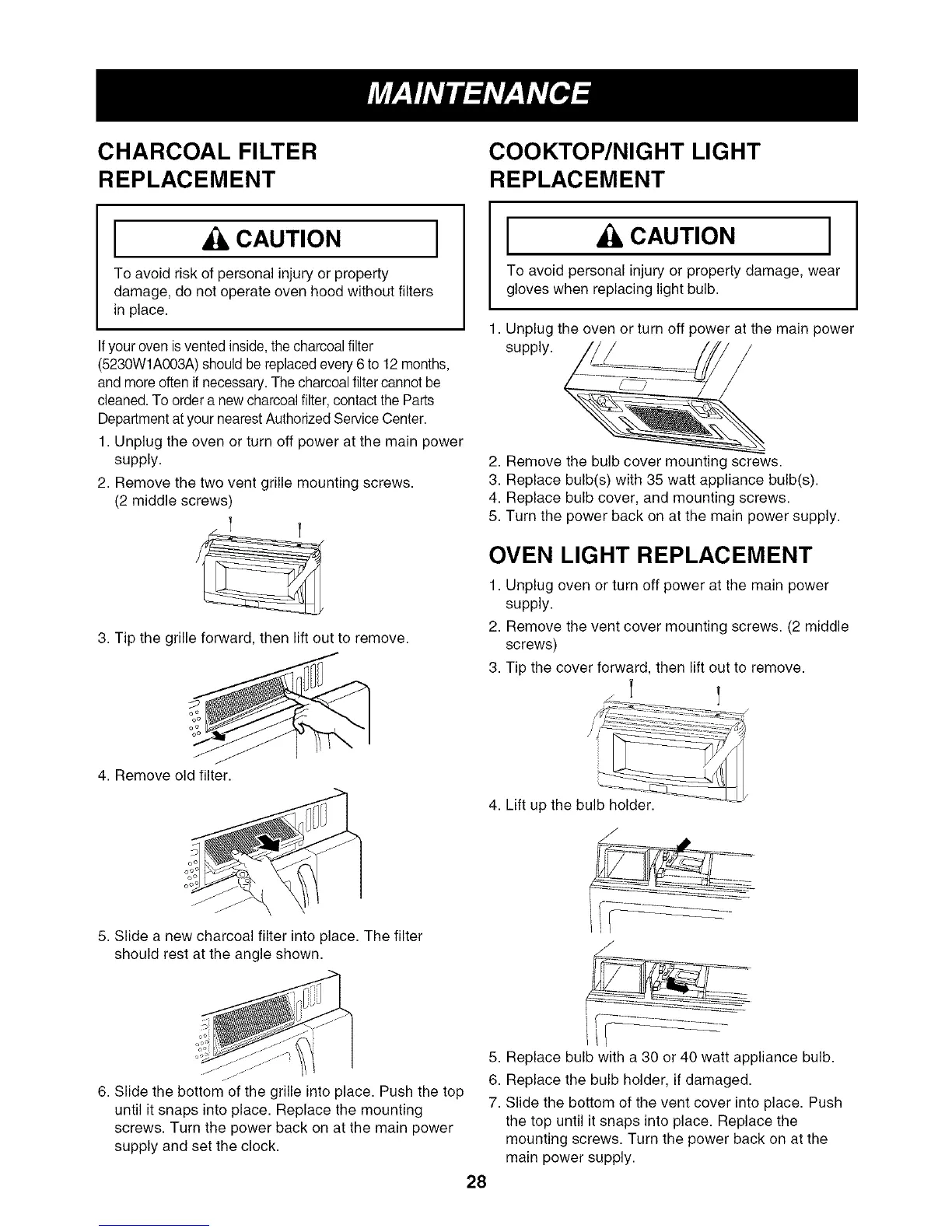

CHARCOAL FILTER
REPLACEMENT
COOKTOP/NIGHT LIGHT
REPLACEMENT
[ CAUTION ]
To avoid risk of personal injury or property
damage, do not operate oven hood without filters
in place.
Ifyour oven is vented inside, the charcoal filter
(5230W1A003A) should be replaced every 6 to 12 months,
and more often if necessary.The charcoal filter cannot be
cleaned. To order a new charcoal filter, contact the Parts
Department atyour nearest Authorized Service Center.
1. Unplug the oven or turn off power at the main power
supply.
2. Remove the two vent grille mounting screws.
(2 middle screws)
3. Tip the grille forward, then lift out to remove.
I CAUTIO. I
To avoid personal injury or property damage, wear
gloves when replacing light bulb.
1. Unplug the oven or turn off power at the main power
2. Remove the bulb cover mounting screws.
3. Replace bulb(s) with 35 watt appliance bulb(s).
4. Replace bulb cover, and mounting screws.
5. Turn the power back on at the main power supply.
OVEN LIGHT REPLACEMENT
1. Unplug oven or turn off power at the main power
supply.
2. Remove the vent cover mounting screws. (2 middle
screws)
3. Tip the cover forward, then lift out to remove.
4. Remove old filter.
4. Lift up the bulb holder.
J
5. Slide a new charcoal filter into place. The filter
should rest at the angle shown.
f"_1
6. Slide the bottom of the grille into place. Push the top
until it snaps into place. Replace the mounting
screws. Turn the power back on at the main power
supply and set the clock.
5. Replace bulb with a 30 or 40 watt appliance bulb.
6. Replace the bulb holder, if damaged.
7. Slide the bottom of the vent cover into place. Push
the top until it snaps into place. Replace the
mounting screws. Turn the power back on at the
main power supply.
