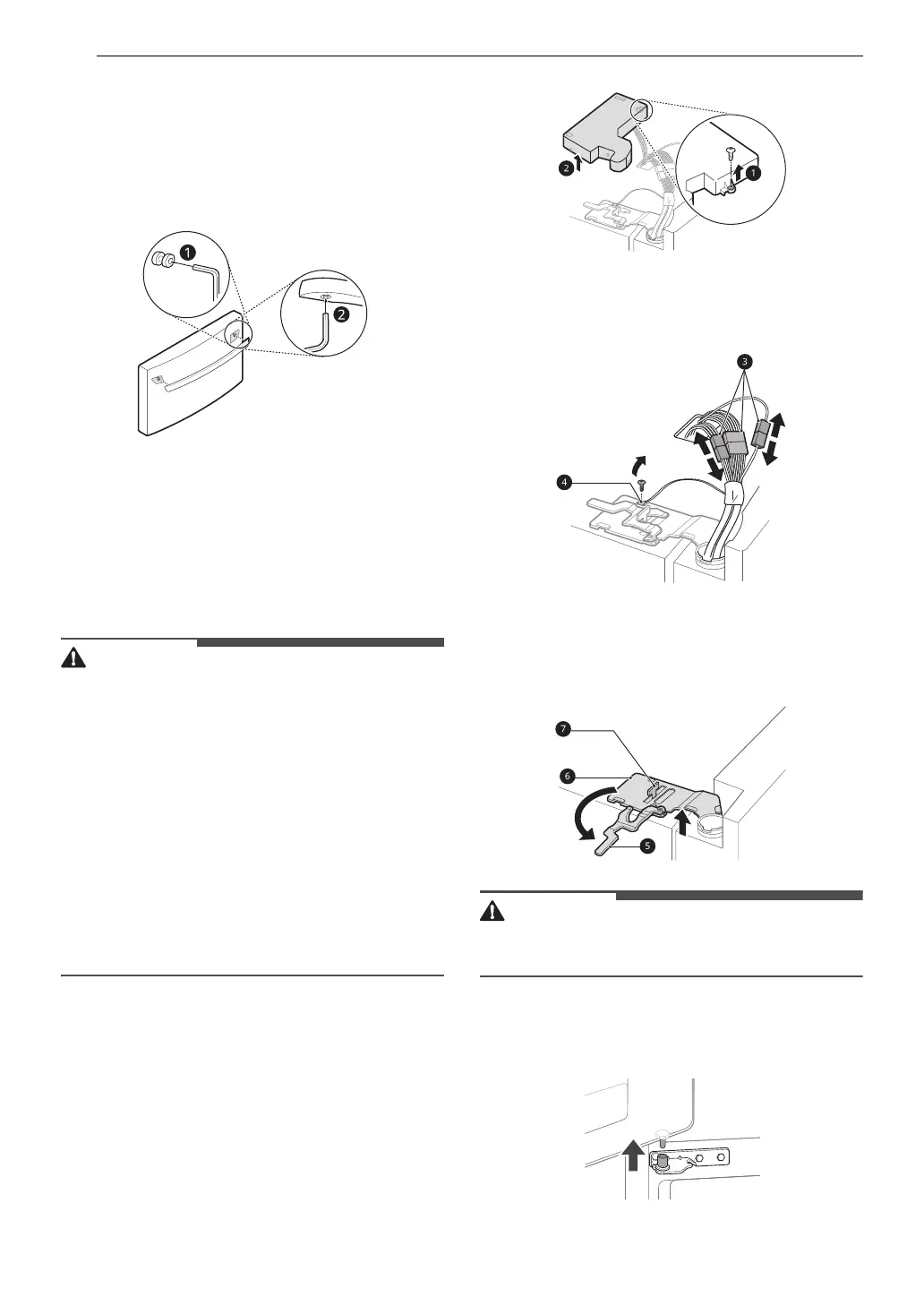

14 INSTALLATION
2 Place the handle on the door by fitting the
handle footprints over the mounting
fasteners and tightening the set screws b
with a 1/8 in. Allen wrench.
• For models shipped with the
handlesdisassembled, use a 3/32 in. Allen
wrench.
Removing/Assembling
Doors and Drawers
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors and drawer.
• Do not hold the handle when removing or
replacing the doors and drawer as the handle
may come off.
• Tools Needed
- Phillips screwdriver
- Flat-head screwdriver
Removing the Left Refrigerator
Door
1 Remove the screw a from the hinge cover at
the top of the refrigerator. Lift the hook (not
visible), located at the bottom of the front side
of the cover
b with a flat-head screwdriver.
Remove the cover
2 Disconnect all wire harnesses c. Unscrew the
ground wire d .
3 Rotate the hinge lever e counterclockwise.
Lift the top hinge f free of the hinge lever
latch g .
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.
4 Lift the door from the middle hinge pin and
remove the door.
