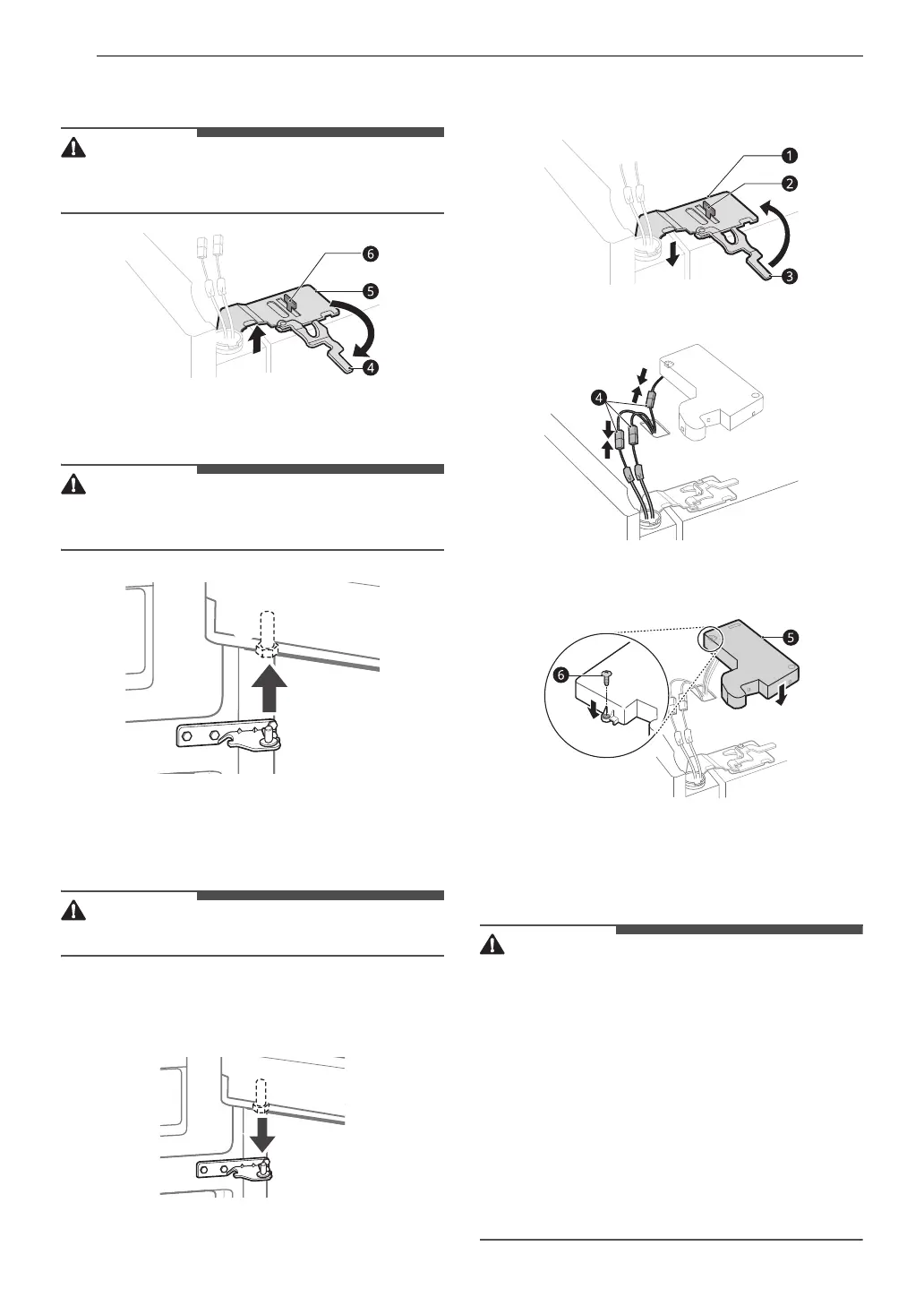

16 INSTALLATION
3 Rotate the hinge lever d clockwise. Lift the
top hinge e free of the hinge lever latch f.
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.
4 Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a
nonscratching surface.
Assembling the Right Refrigerator
Door
• Install the right-side door first.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Lower the door onto
the middle hinge pin as shown in the figure.
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever c
counterclockwise to secure the hinge.
3 Connect the wire harnesses d.
4 Place the cover e in its place. Insert and
tighten the cover screw
f .
Removing the Freezer Drawer
Removing the lower freezer drawer in the same
way.
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Be careful of sharp hinges on both sides of the
drawer.
• When you lay the drawer down, be careful not to
damage the floor.
• Do not sit or stand on the freezer drawer.
• To prevent accidents, keep children and pets
away from the drawer. Do not leave the drawer
open. If the Durabase
®
storage bin is removed
from the freezer drawer, there is sufficient space
for a small child or pet to crawl inside.
To Next Page
