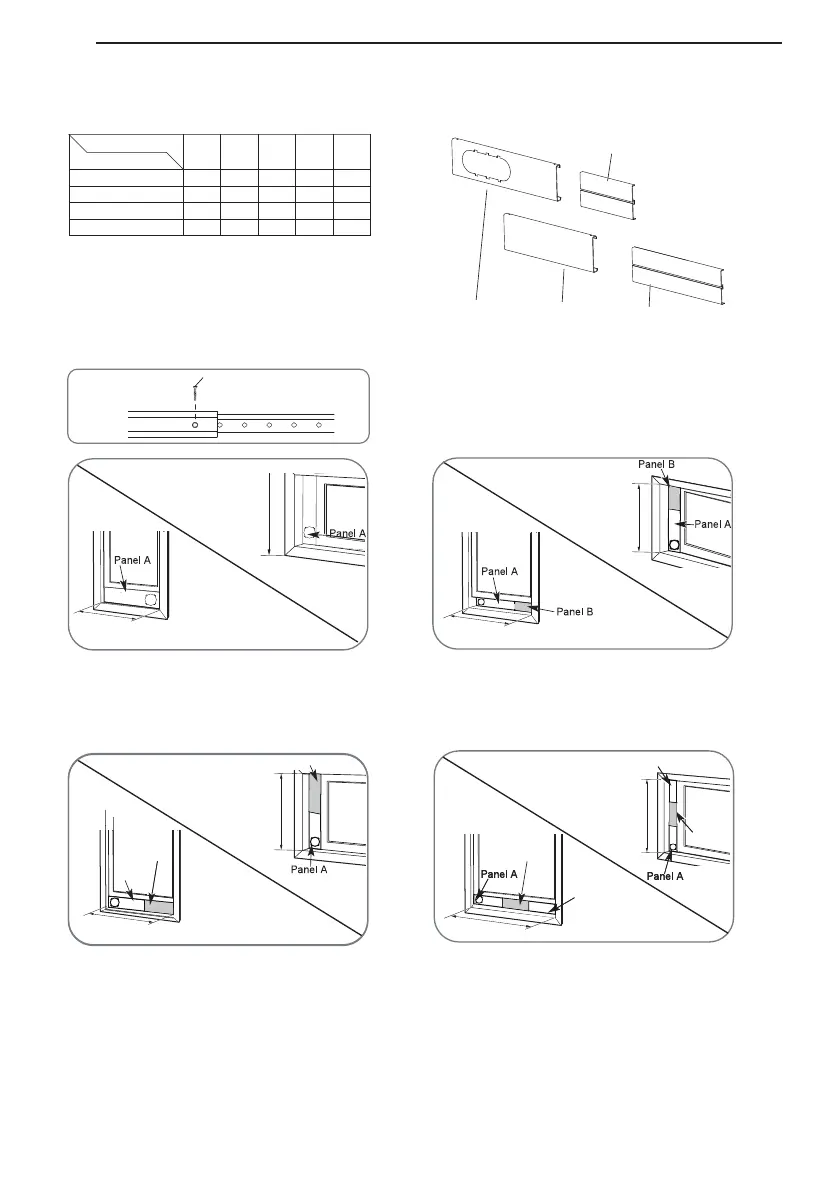

Window Vent Panel and Extensions
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18″ to 50″ wide,
or horizontal-sliding windows from 18″ to 50″ high.
Fig. a Fig. b
Fig. c Fig. d
Window Installation Kit
(Includes 1 window vent panel and 3 extension panels)
Panel A (18″)
Panel B (9″)
Panel C (17″) Panel D (17″)
18″
18″
27″ – 34″
Panel D
Panel D
Panel A
35″ – 50″
35″ – 50″
Panel D
Panel D
Panel C
Panel C
27″ – 34″
19″ – 25″
19″ – 25″
3 Extension Panels
1 Window Vent Panel
Panel
Window opening
A
18″
B
9″
C
17″
D
17″
Fig.
18″
√
19″ - 26″
√ √
27″ - 34″
√
35″ - 50″
√ √
Screw A
INSTALLATION
12
√
1. Select the panels required based on the
window opening, as shown above.
2. For longer window openings, assemble and
adjust the panels to fit the window opening.
Use type A screws (included) to fix the panels
together at the proper length.
For window openings from 19″ to 25″, use the
window vent panel (Panel A) and extension
Panel B.
For an 18″ window opening, use the window
vent panel (Panel A) by itself.
For window openings from 35″ to 50″, use the
window vent panel (Panel A) and extension
Panel C and Panel D.
For window openings from 27″ to 34″, use the
window vent panel (Panel A) and extension
Panel D.
a
b
c
d
√
To Next Page
