18" to 50" (46 to 127 cm)
A
A
B
C
D
18"
(46cm)
18"(46cm)
19"- 26" (48cm - 66cm)
27"- 34" (69cm – 86cm)
35"- 50" (89cm – 127cm)
B
9"
(23cm)
C
17"
(43cm)
D
17"
(43cm)
18" to 50" (46 to 127 cm)

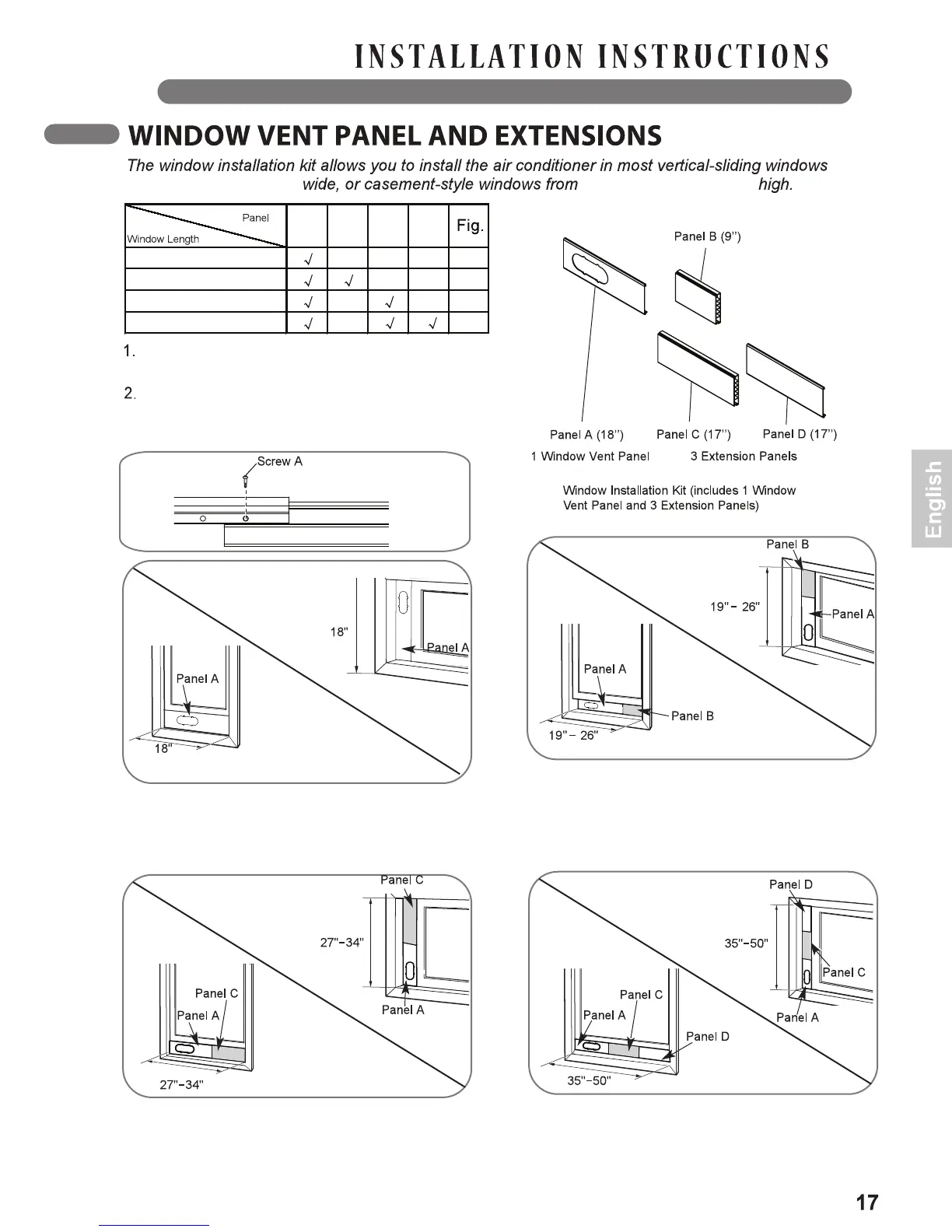

Please check your window length and choose the
panels that will fit from the above table.
If the length of your window requires more than two
panels, use one type A screw to fasten the panels
once they are adjusted to the proper length.
For an 18“(46cm) window opening, use the
window vent panel by itself.
Fig. “A”
For window openings from 19" to 26“ (48cm to 66cm),
use the window vent panel (Panel A) and extension
Panel B.
Fig. “B”
For window openings from 35" to 50“(89cm to 127cm),
use the window vent panel and extension panels
(C and D).
Fig. “D”
For window openings from 27“ to 34“ (69cm to 86cm),
use the window vent panel (Panel A) and extension
Panel C.
Fig. “C”
