Installation of Unit
Installation Manual 7

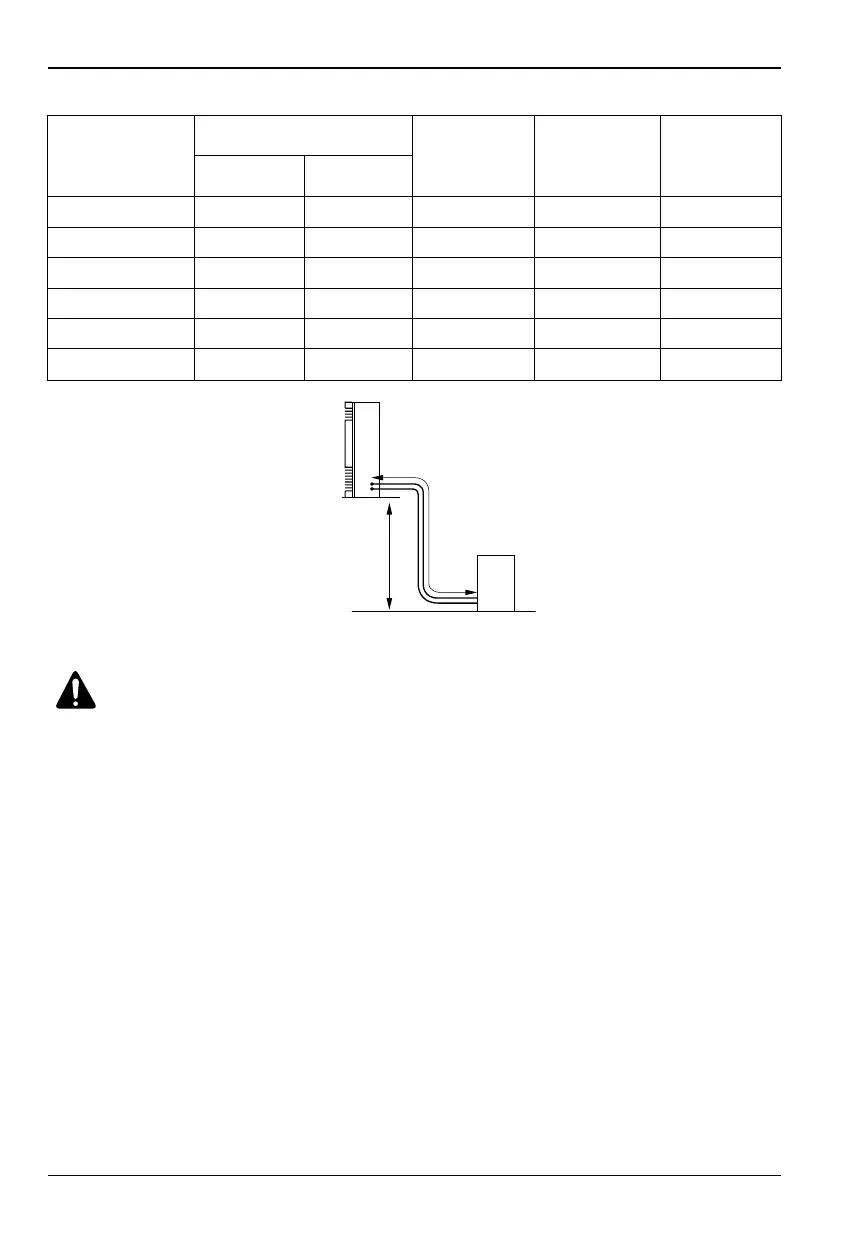

3. Piping length and the elevation
CAUTION:
• Capacity is based on standard length and maximum allowance length is on
the basis of reliability.
• Oil trap should be installed every 5~7 meters.
20K 5/8" 1/4" 25 15 -
28K/30K/40K 5/8" 3/8" 30 20 -
44K/50K 3/4" 3/8" 40 25 -
80K 1" 5/8" 50 30 -
80K 1" 1/2" 50 30 Saudi Model
100K 1
1/8" 1/2" 50 30 Saudi Model
PIPE SIZE
MODEL
GAS SIDE LIQUID SIDE
Max.
Length
A (m)
Max.
Elevation
B (m)
Remarks
