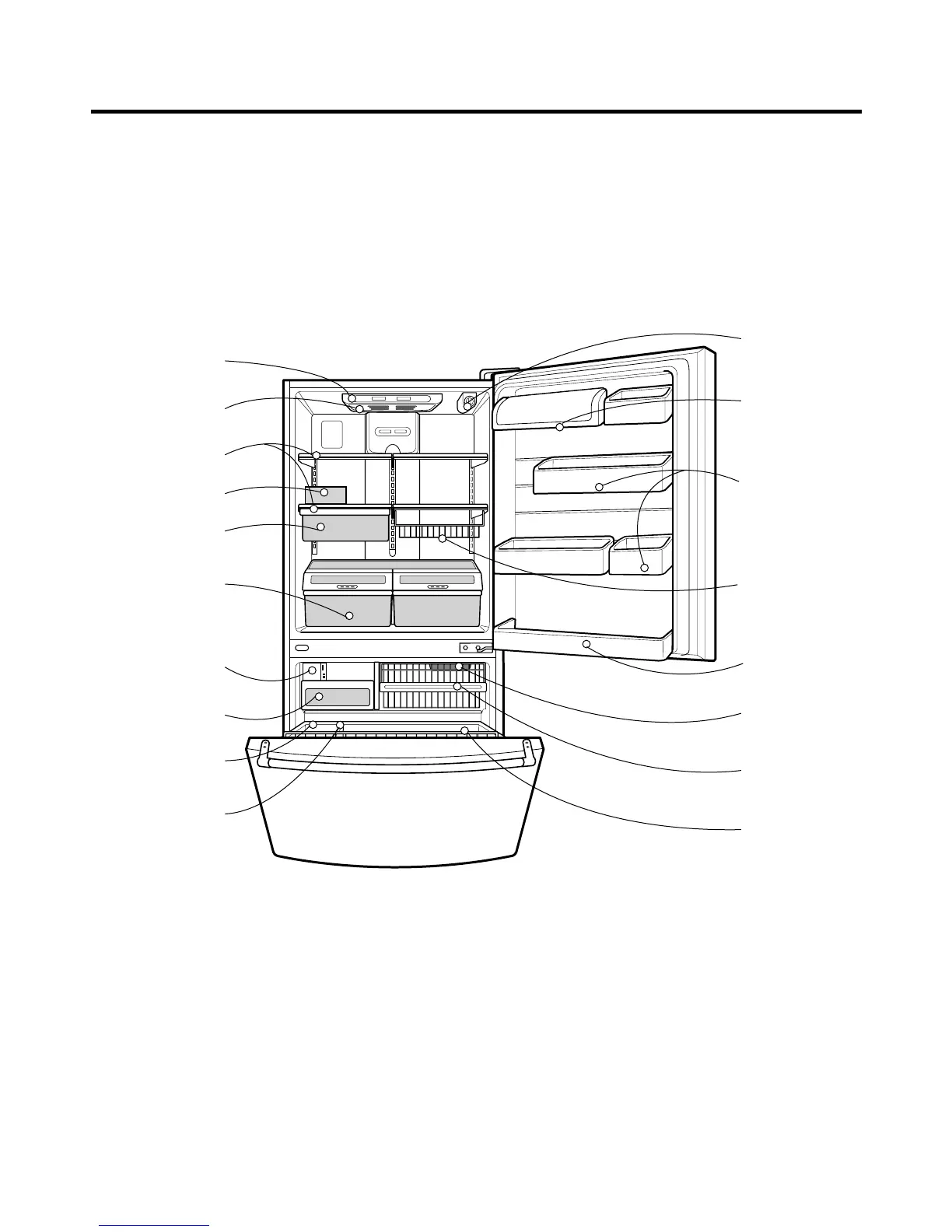

2. P
ARTS IDENTIFICA
TION
- 4
-
Digital Sensor
Control
Refrigerator Light
Shelves
Egg Box
Chef Fresh/
Snack Pan
Optibin Crisper
Keeps fruits and
vegetable fresh
and crisp
Custom cube
Icemaker
Ice Bin
Durabase
Divider
Freezer Door
Rack (Tilting)
Basket Wire
Freezer Light
Refrigerator
Door Rack
Can Dispenser
Design-A-Door
Dairy Bin
Filter
(inside)
3
5
Table of Contents
Safety Precautions
2
Table of Contents
2
Specifications
3
Parts Identification
4
Disassembly
5
Door
5
Door Switch
5
Fan and Fan Motor
6
Defrost Control Assembly
6
Lamp
6
Control Box-Refrigerator
6
Multi Duct
6
Adjustment
7
Compressor
7
Ptc-Starter
7
Olp (Overload Protector)
8
To Remove the Cover Ptc
8
Circuit Diagram
9
Troubleshooting
10
Compressor and Electric Components
10
Ptc and Olp
11
Other Electrical Components
12
Service Diagnosis Chart
13
Refrigeration Cycle
14
Operation Principle & Repair Method of Icemaker
16
Description of Function & Circuit of Micom
20
Exploded View & Replacement Parts List
41
