22 INSTALLATION

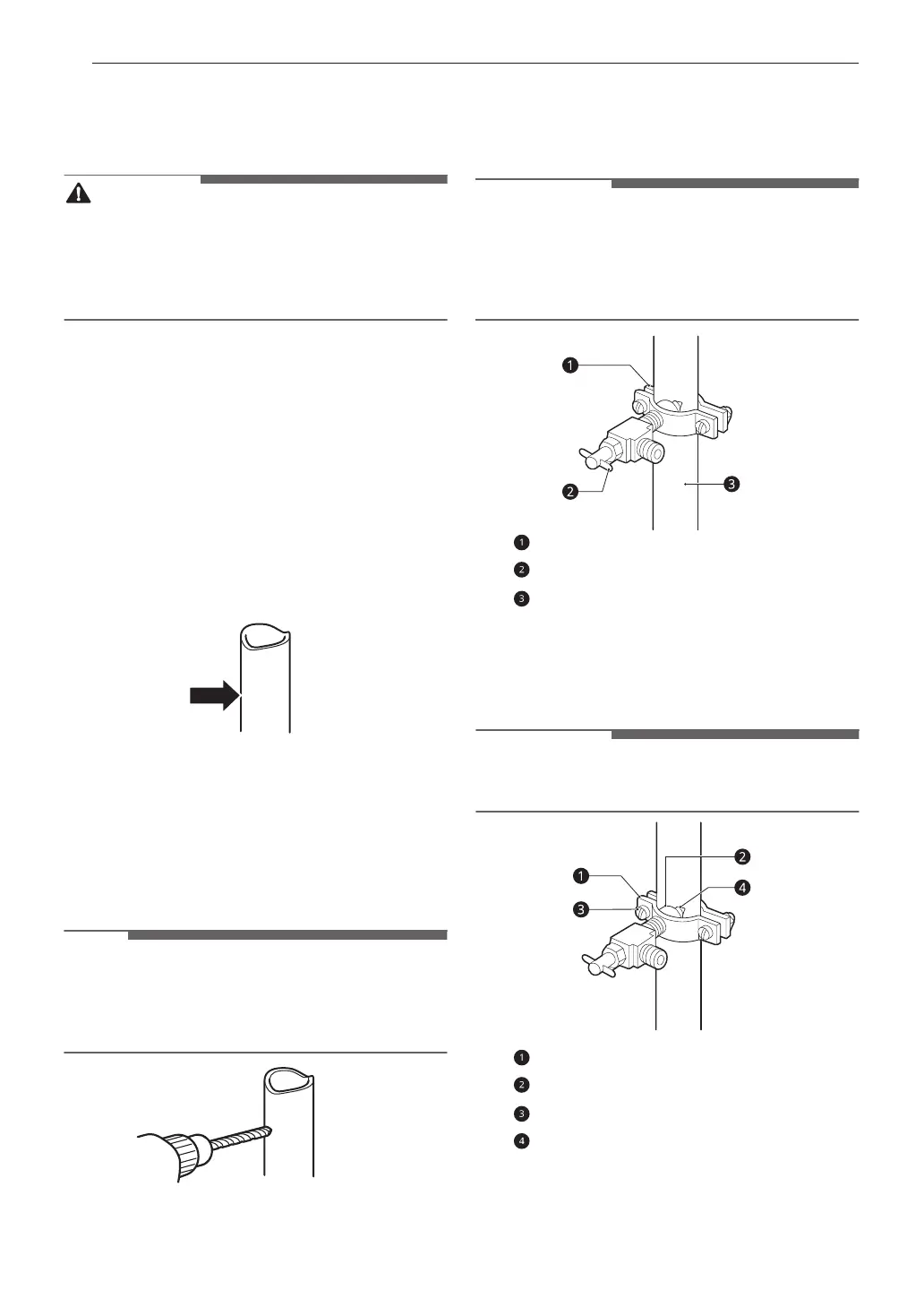

Water Line Installation Instructions
Install the shuto valve on the nearest frequently
used drinking water line.
WARNING
• When using any electrical device (such as a
power drill) during installation, be sure the
device is battery-powered, double-insulated or
grounded in a manner that will prevent the
hazard of electric shock.
Shut o the main water supply.
• Turn on the nearest faucet to relieve the
pressure on the line.
Fasten the shuto valve.
• Fasten the shuto valve to the cold water
pipe with the pipe clamp.
Tighten the pipe clamp.
• Tighten the clamp screws until the sealing
washer begins to swell.
Pipe Clamp
Saddle-Type Shuto Valve
Vertical Cold Water Pipe
Pipe Clamp
Inlet End
Clamp Screw
Washer
Choose the valve location.
• Choose a location for the valve that is easily
accessible. It is best to connect into the side
of a vertical water pipe. When it is necessary
to connect into a horizontal water pipe,
make the connection to the top or side,
rather than at the bottom, to avoid drawing
o any sediment from the water pipe.
Drill the hole for the valve.
• Drill a ¼ in. hole in the water pipe using a
sharp bit. Remove any burrs resulting from
drilling the hole in the pipe. Be careful not
to allow water to drain into the drill. Failure
to drill a ¼ in. hole may result in reduced ice
production or smaller cubes.
1
4
5
2
3
• The hookup line cannot be white, plastic tubing.
Licensed plumbers must use only copper tubing
(NDA tubing #49595 or #49599) or Cross Link
Polyethylene (PEX) tubing.
• Do not over tighten clamp or you may crush the
tubing.
• Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.
NOTE
NOTE
NOTE
