16 INSTALLATION
CAUTION
• Place the door, inside facing up, on a
nonscratching surface.
Assembling the Left Refrigerator
Door
CAUTION
• Install the left refrigerator door after the right
door is installed.
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.

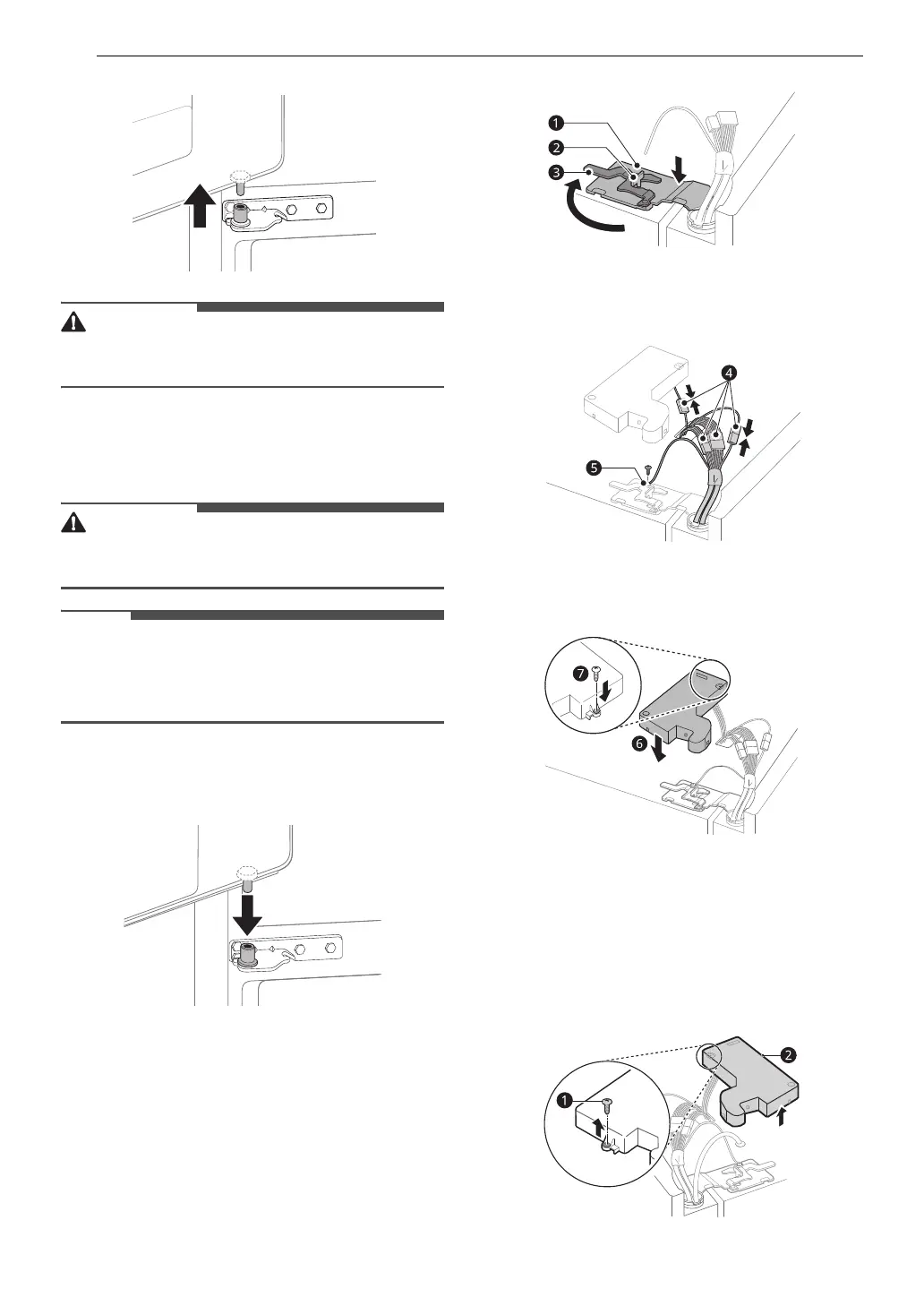

1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Install the refrigerator
door onto the middle hinge.
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever
c
clockwise and fasten the hinge.
3 Connect all the wire harnesses d and the
ground screw e.
4 Place the hinge cover f in place. Insert and
tighten the cover screw g.
Removing the Right Refrigerator
Door
1 Remove the top hinge cover screw a. Lift the
hook (not visible), located at the bottom of the
front side of the cover
b, with a flat-head
screwdriver.
