ENGLISH

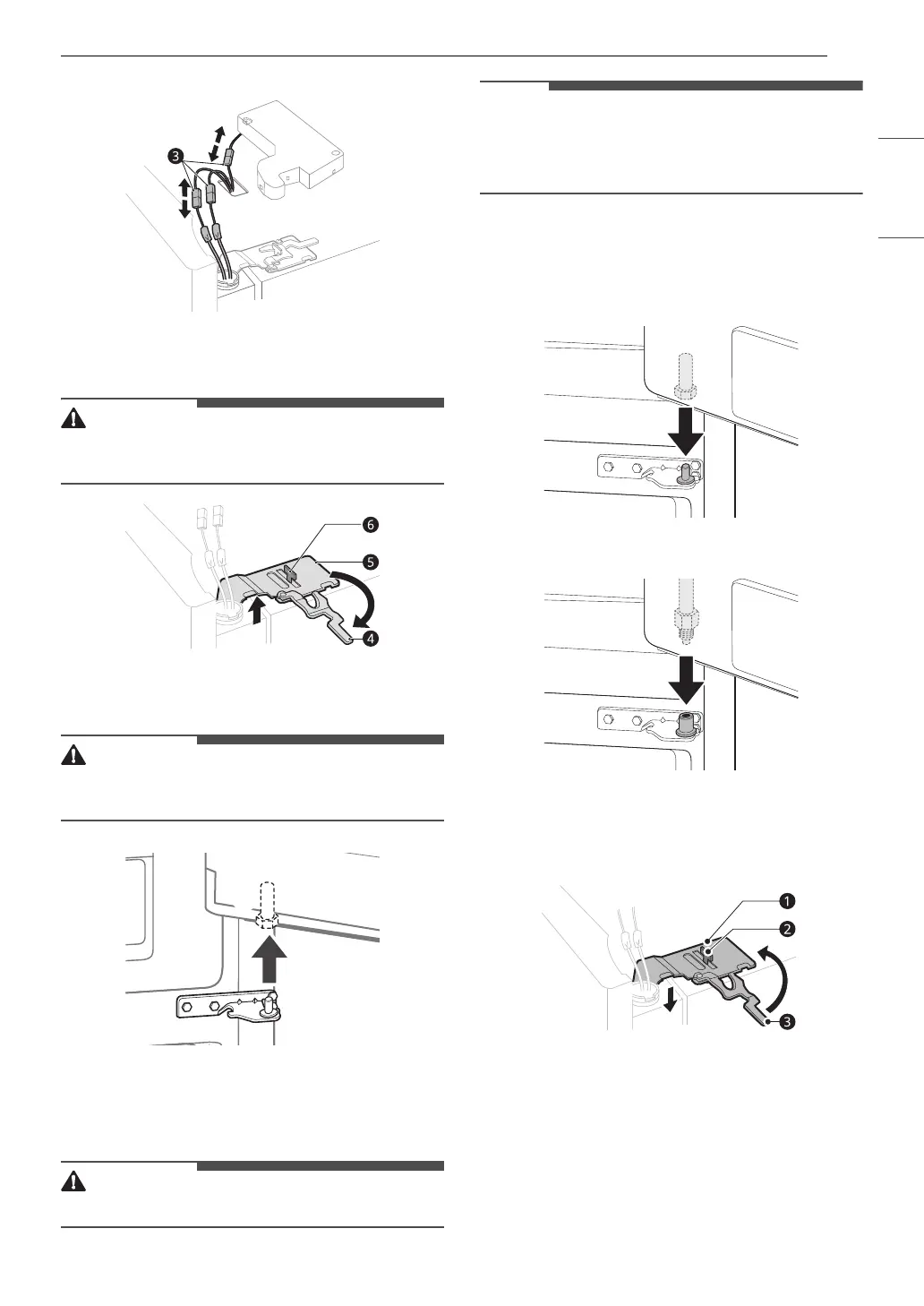

2 Detach all the wire harnesses c.
3 Rotate the hinge lever d clockwise. Lift the
top hinge e free of the hinge lever latch f.
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.
4 Lift the door from the middle hinge pin and
remove the door.
• Place the door, inside facing up, on a
nonscratching surface.
Assembling the Right Refrigerator
Door
• Install the right-side door first.
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Lower the door onto
the middle hinge pin as shown in the figure.
•Type A
•Type B
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever
c
counterclockwise to secure the hinge.
3 Connect the wire harnesses d.
