7-1 OPERATION PRINCIPLE
7-1-1 Operation Principle of IceMaker
7. OPERATION PRINCIPLE AND REPAIR METHOD OF ICEMAKER
- 18 -
1. Turning the Icemaker stop switch off (O) stops the ice making function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.

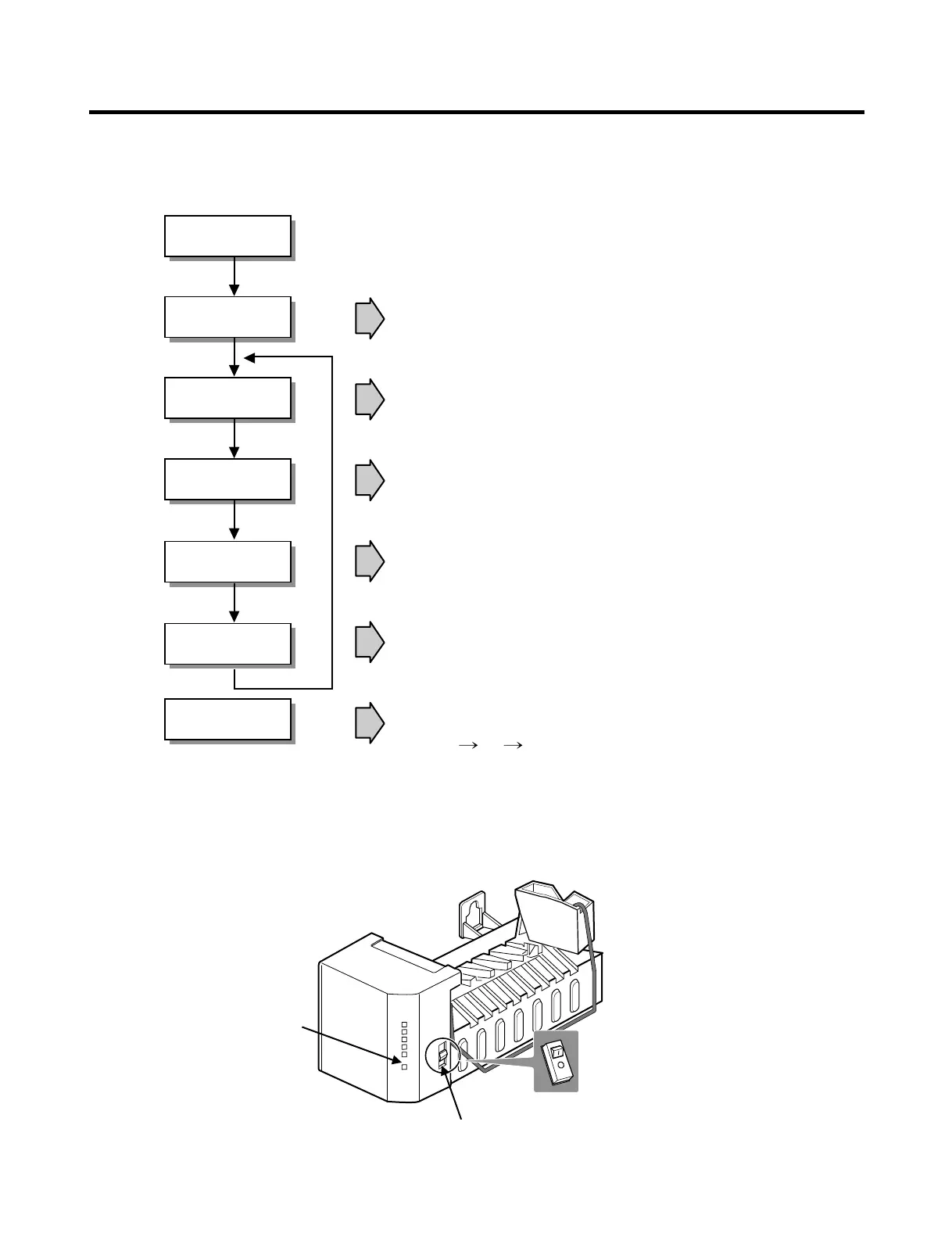

• Adjusts EJECTOR to Start Position with power on.
Power On
Start Position
Ice Making
Mode
Harvest
Mode
Park Position
Fill
Test Mode
• Waits until water becomes cold after starting the
ice making operation.
• Runs MOTOR to drop ice from the tray into the ICE BIN.
• Performs Ice Making Mode after supplying water by operating
the SOLENOID in ICE VALVE.
• To operate LINE and SERVICE, press and hold the Fill Key
for 3 seconds. The ice maker will run through 3 stages:
Harvest Fill Icemaking.
• With the detect lever, checks if the ICE BIN is full.
To Next Page
