14 INSTALLATION
Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24 inches (610 mm) in front of the refrigerator to open the
doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.

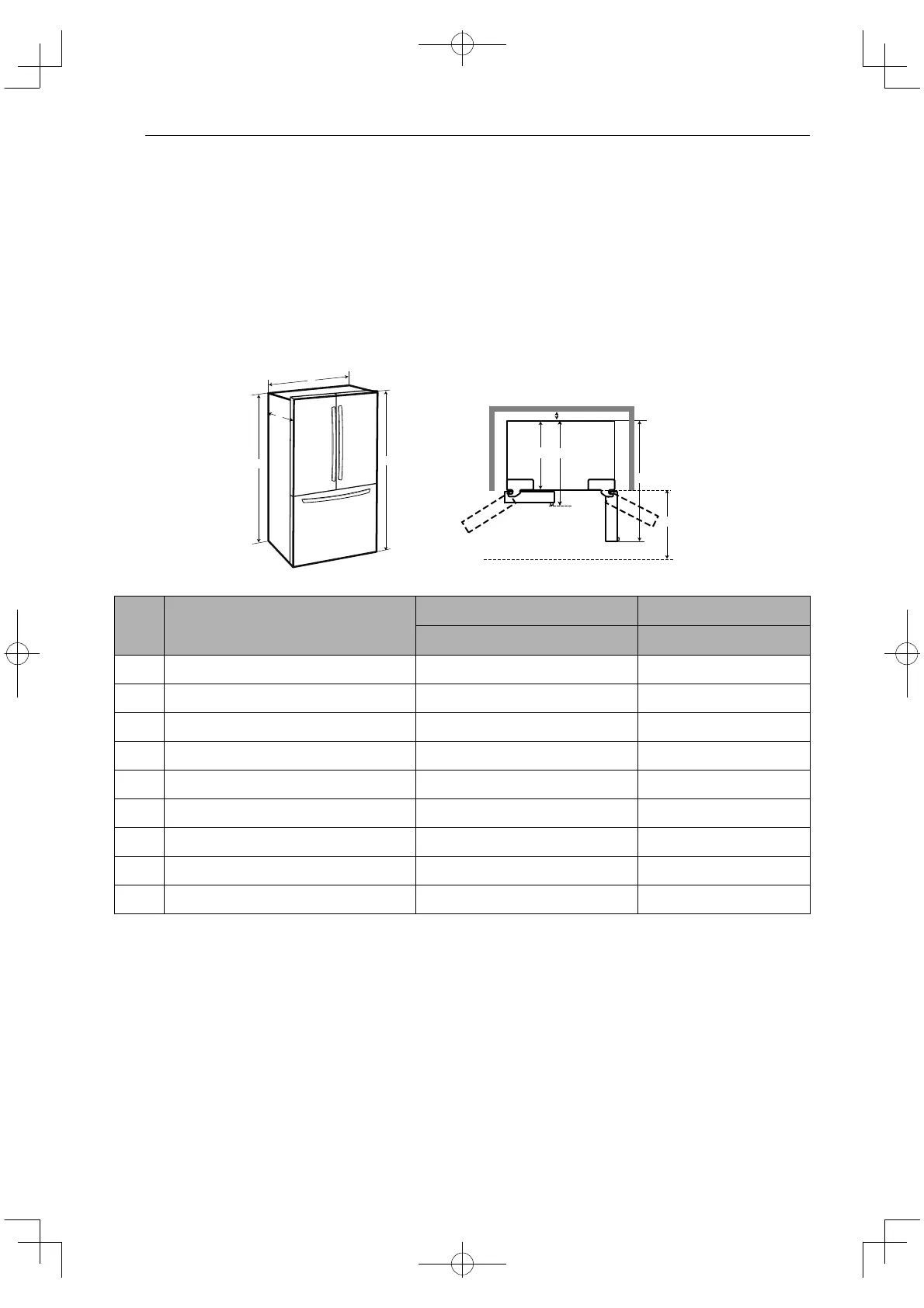

- Dimension/Clearance
LRFVS3006* LRFVC2406*
LRFDS3006* LRFXC2406*
A Depth without Handle 34 1/8Π(866 mm) 28 1/4Π(718 mm)
B Width 35 3/4Π(908 mm) 35 3/4Π(908 mm)
C Height to Top of Case 68 7/8Π(1750 mm) 68 7/8Π(1750 mm)
D Height to Top of Hinge 70 1/4Π(1785 mm) 70 1/4Π(1785 mm)
E Back Clearance 2” (50 mm) 2” (50 mm)
F Depth without Door 29 7/8Π(758 mm) 24Π(610 mm)
G Depth (Total with Door Open 90°) 42 5/8Œ (1231 mm) 42 5/8Œ (1083 mm)
H Front Clearance 24” (610 mm) 24Œ (610 mm)
I Depth with Handle 36 5/8” (929 mm) 30 3/4Œ (781 mm)
B
A
C
D
F
G
E
H
I
