15INSTALLATION
ENGLISH
Removing/Assembling the
Handles
When moving the refrigerator through a narrow
opening, removing the doors is preferred.
The appearance of the handles may vary from
what is shown.
WARNING
• When assembling or disassembling the
refrigerator handles, grasp the handle firmly to
avoid dropping it.
• Do not swing the handle into nearby people or
animals.
• Make sure that the bracket hole of the handle
fits properly into the stopper bolt of the door.
Assemble the set screws to fix the handle into
place.
• Make sure that there is not a gap between the
door and handle after assembling the handle.
Tools Needed
• 3/32 in. Allen wrench
• 1/8 in. Allen wrench
• 1/4 in. Allen wrench

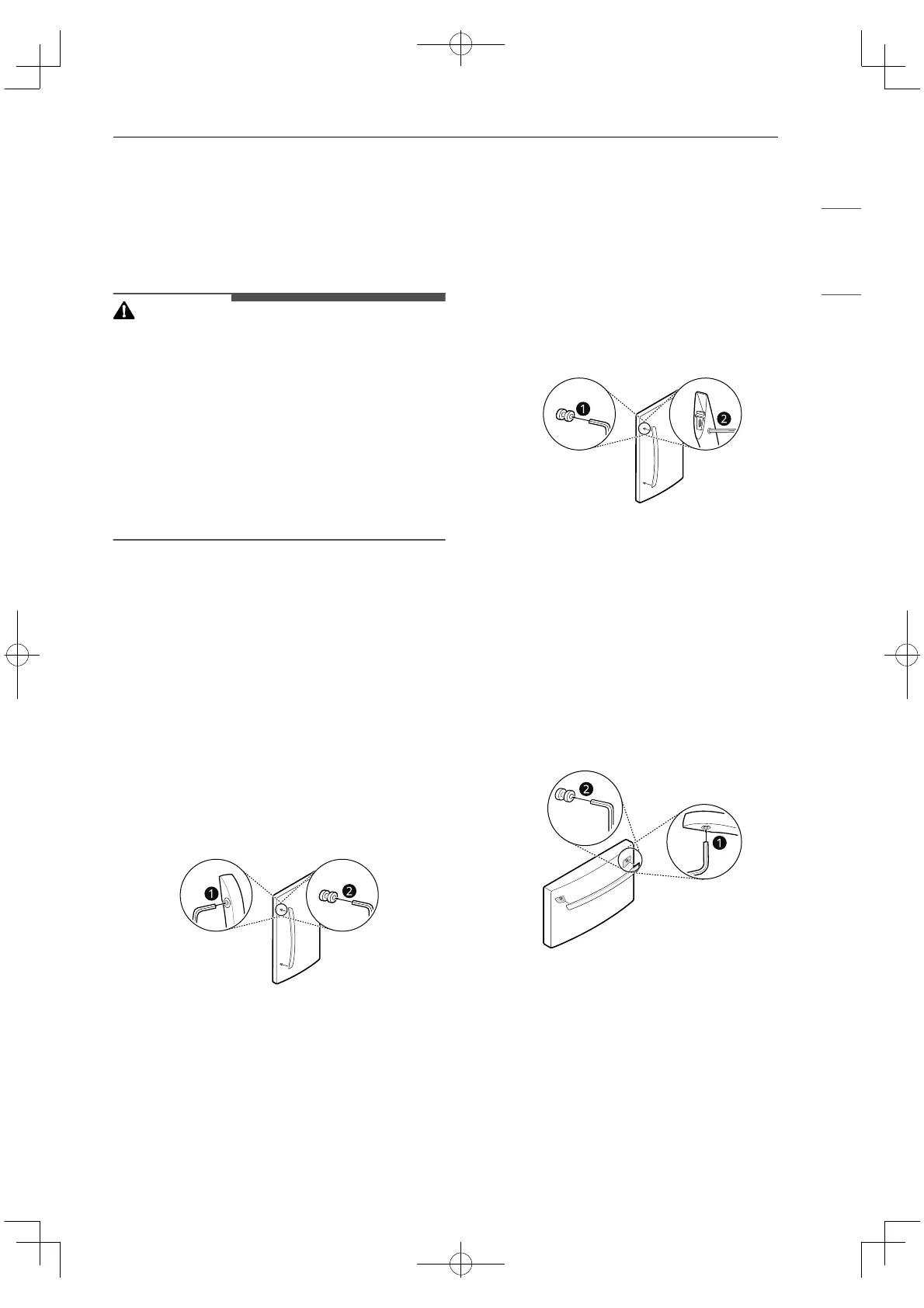

Removing the Refrigerator Handles
Loosen the set screws a with a 3/32 in. Allen
wrench and remove the handle.
Loosen the mounting fasteners b that
connect to the refrigerator door and handle
using a ¼ in. Allen wrench, and remove the
mounting fasteners.
Assembling the Refrigerator
Handles
Assemble the mounting fasteners a at both
ends of the handle with a ¼ in. Allen wrench.
Place the handle on the door by fitting the
handle footprints over the mounting
fasteners and tightening the set screws
b
with a 3/32 in. Allen wrench.
Removing the Freezer Drawer
Handle
Loosen the set screws a located on the
lower side of the handle with a Ȣ in. Allen
wrench and remove the handle.
Loosen the mounting fasteners b with a
¼ in. Allen wrench, and remove the
mounting fasteners.
To Next Page
