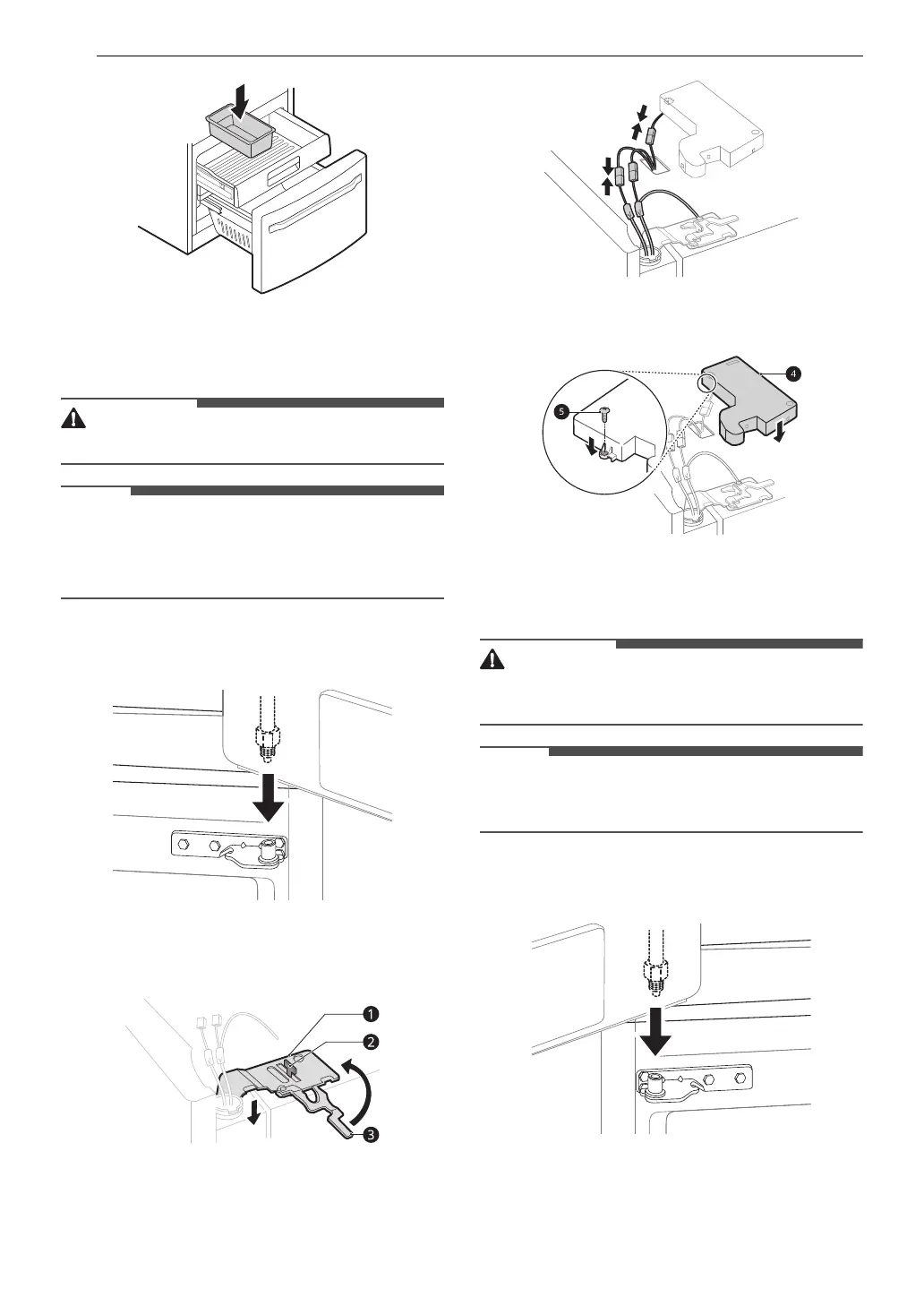

Assembling the Right Refrigerator
Door
• Install the right-side door first.
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Lower the door onto
the middle hinge pin as shown in the figure.
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever c
counterclockwise to secure the hinge.
3 Connect all the wire harnesses and the
ground screw.
4 Set the hinge cover d in place. Insert and
tighten the cover screw
e.
Assembling the Left Refrigerator
Door
• Install the left refrigerator door after the right
door is installed.
• The number of wire harnesses may vary
depending on the model.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Install the refrigerator
door onto the middle hinge.
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever
c
clockwise and fasten the hinge.
