19INSTALLATION
ENGLISH

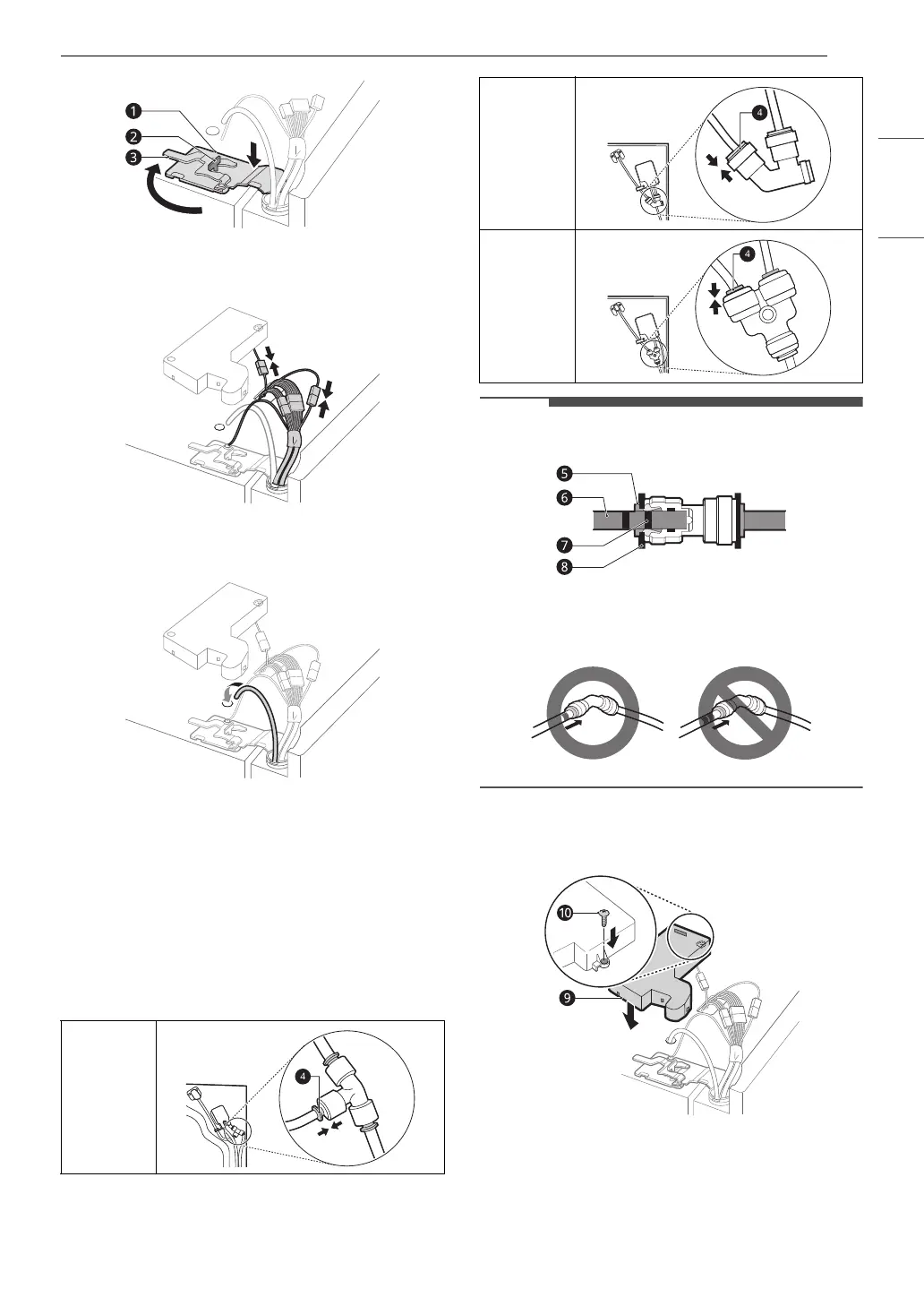

3 Connect all the wire harnesses and the
ground screw.
4 Push the water supply tube into the hole on
the top case and pull it through the backplate.
5 Hold the water supply connection and gently
push in the collet
d to connect the water
supply line as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tube in place.
• Connections may vary by model.
† This feature is only available on some
models.
• Disassembling/Assembling the Water Lines
e Collet f Tube g Insert line h Clip
• Gently press the collet and insert the tube until
only one line shows on the tube.
6 Set the cover i in place. Insert and tighten
the cover screw j.
Type A
†
Type B
†
Type C
†
To Next Page
