14 INSTALLATION
Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24 inches (610 mm) in front of the refrigerator to open the
doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.

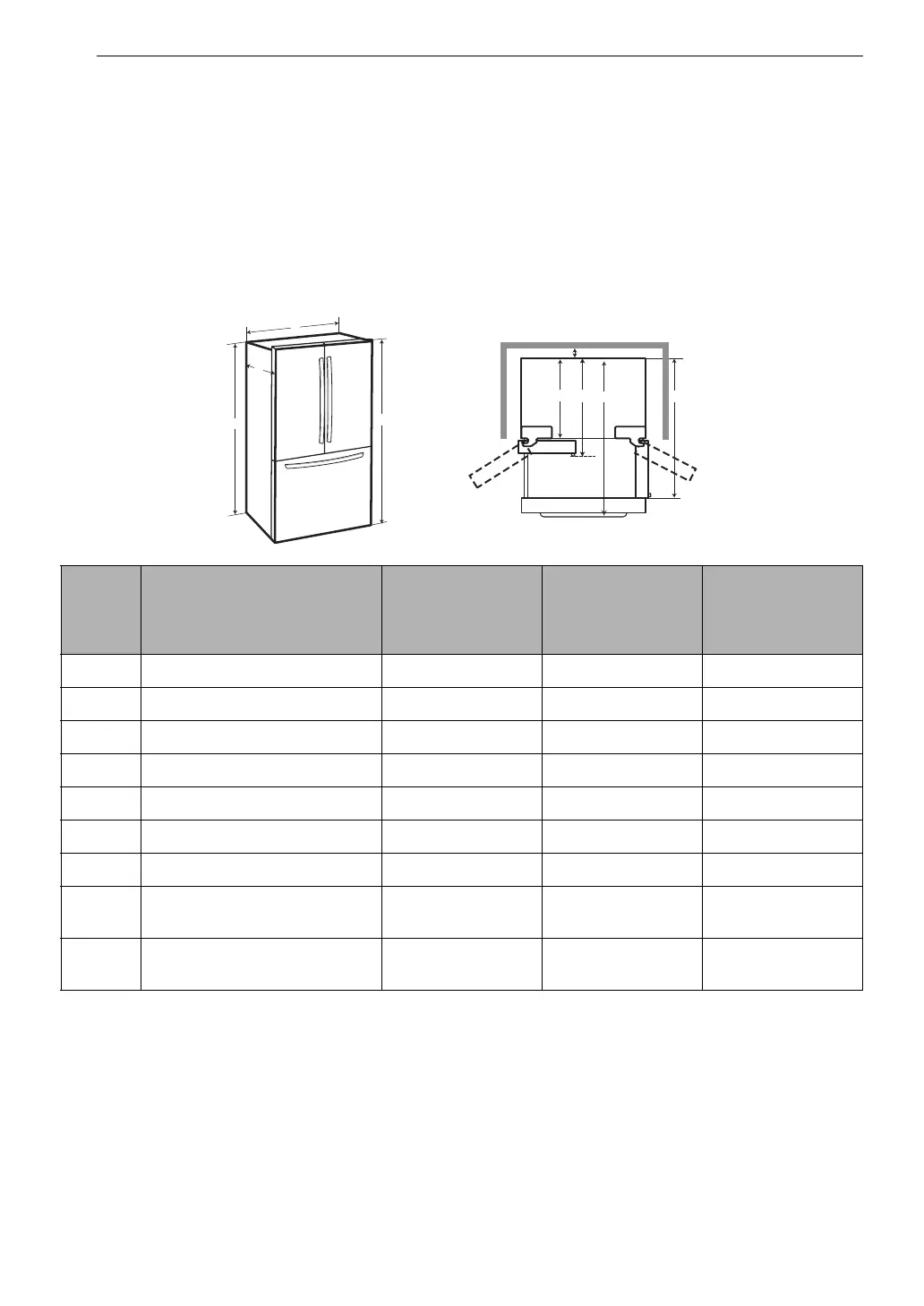

- Dimension/Clearance
LFXS28596*
LMXS28596*
LMRS28596*
LFXS26596* LFXC22596*
A Depth without Handle 33 3/4" (857 mm) 32 3/8" (822 mm) 28 3/4" (728 mm)
B Width 35 3/4" (908 mm) 35 3/4" (908 mm) 35 3/4'' (908 mm)
C Height to Top of Case 68 1/2" (1737 mm) 68 1/2" (1737 mm) 68 1/2" (1737 mm)
D Height to Top of Hinge 69 3/4" (1772 mm) 69 3/4" (1772 mm) 69 3/4" (1772 mm)
E Back Clearance 2" (50 mm) 2" (50 mm) 2" (50 mm)
F Depth without Door 29 7/8'' (759 mm) 28 1/2˝ (724 mm) 24 3/4" (628 mm)
G Depth with Handle 36 1/4" (921 mm) 34 7/8" (886 mm) 31 1/4" (792 mm)
H Depth (Total with Freezer
Drawer Open)
57 5/8'' (1461 mm) 56 1/4'' (1426 mm) 48 1/2'' (1232 mm)
I Depth (Total with Door Open
90°)
48 5/8'' (1234 mm) 47 1/4'' (1199 mm) 43 1/2” (1103 mm)
