Fig. 23

Fig. 22

Fig. 24

Fig. 25

Fig. 26

Hinge

Pin Bracket

Hinge Pin

Insert

Fig. 27

Hinge

Pin Bracket

Hinge Pin Insert

Fig. 28

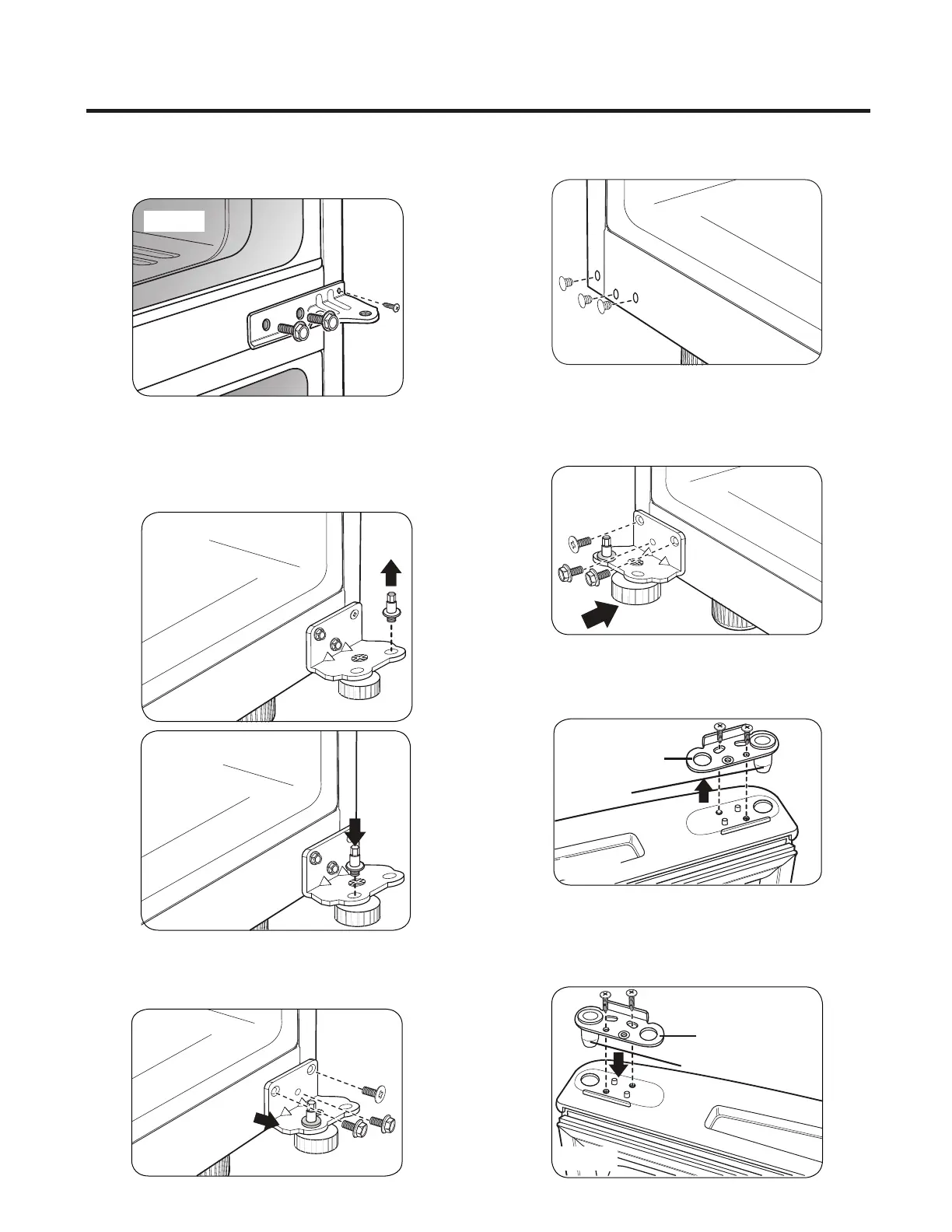

Loosen and remove the two bolts and use the Phillips head

screwdriver to remove the Middle Hinge Bracket from the

refrigerator housing. Set parts aside.

Remove the washer from the Bottom Hinge Pin. Using a 1/4

inch socket wrench, loosen and remove the Hinge Pin from

the Bottom Hinge. Reattach the Hinge Pin to the opposite

side of the hinge.

NOTE: This is easier to do while the hinge is still attached.

Using a 13/32 inch socket wrench with a 2 inch extension

and screwdriver, loosen the two bolts and one screw, and

remove the Bottom Hinge from right side of the housing.

Fig. 21

Remove the Decorative Caps on the bottom of the refrigera-

tor housing. You will need these holes for the Bottom Hinge.

Move the Bottom Hinge to the left side of the housing,

keeping the same orientation, and reattach with the two

bolts and one screw. The flat screw must be placed on the

exterior side of the hinge. Move the Decorative Bolt to the

hole on the lower right side of the housing.

Turn the refrigerator door upside down on a nonscratching

surface. Loosen the two screws to remove the Bottom

Hinge Pin Bracket with the Hinge Pin Insert.

Take out the Hinge Pin Insert and move the Bracket to the

other side of the door, keeping the same orientation. Place

the Hinge Pin Insert into the left side of the bracket. Tighten

the Hinge Pin Bracket to the door.

reservados. Solo para propósitos de entrenamiento y servicio.

LG LRTLS2403S / 00 User Manual
