LG LS-Q096ABL Service Manual

-37-

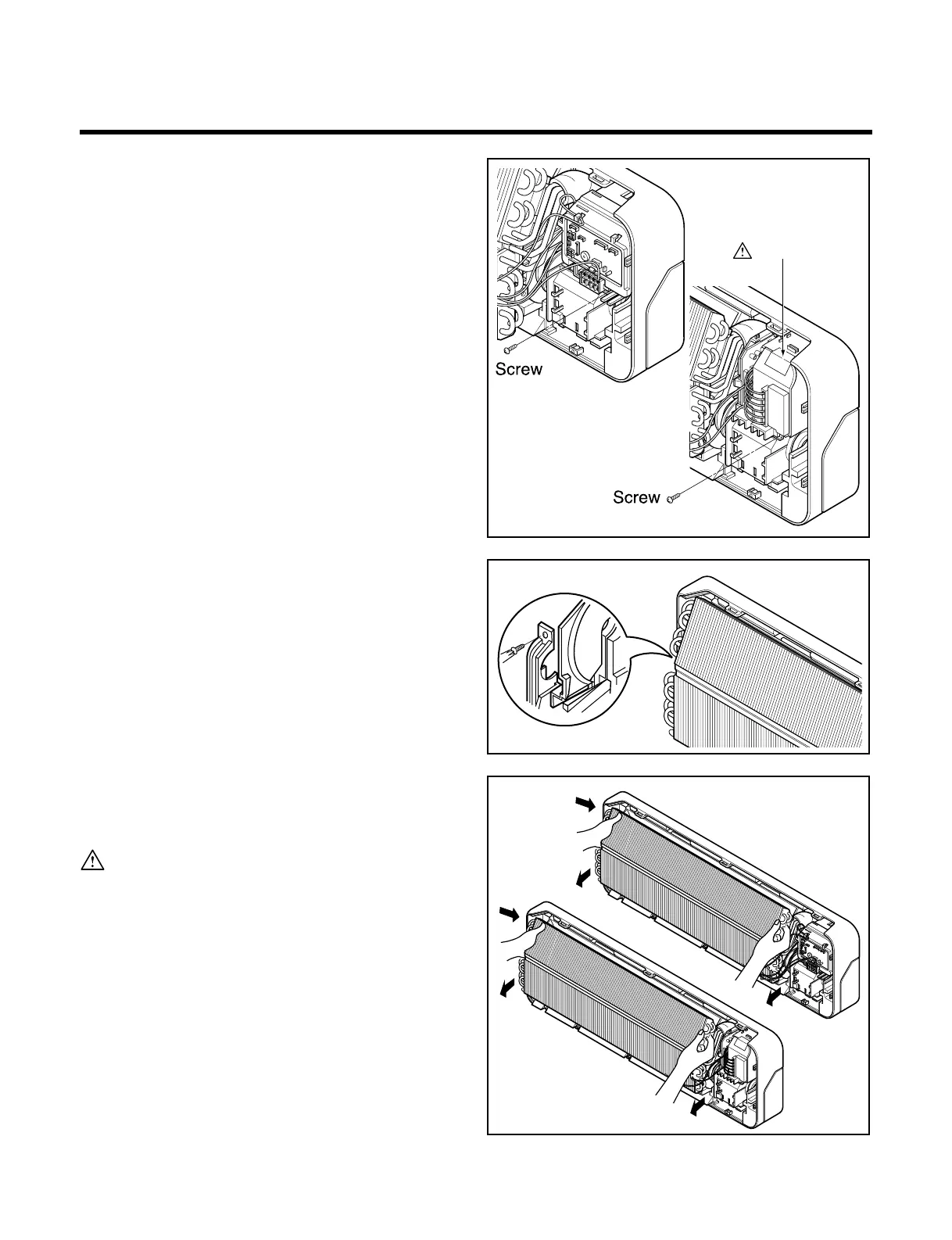

2. To remove the Control Box.
• Remove securing screws.
• Pull the control box out from the chassis careful-
ly.
3. To remove the Discharge Grille.
• Unhook the discharge grille and pull the dis-
charge grille out from the chassis carefully.
4. To remove the Evaporator.
• Remove 3 screws securing the evaporator(at the
left 2EA in the Eva Holder, at the right 1EA).
Caution label
When repair, do not damage the Caution
label.
Caution label
