GENERAL INSTALLATION GUIDELINES
Figure 15: Indoor Unit with the Bottom Cover On (Bottom View; Appear-
ances Will Vary Depending on Indoor Unit Model).
Figure 16: Steps to Removing the
Bottom Cover.

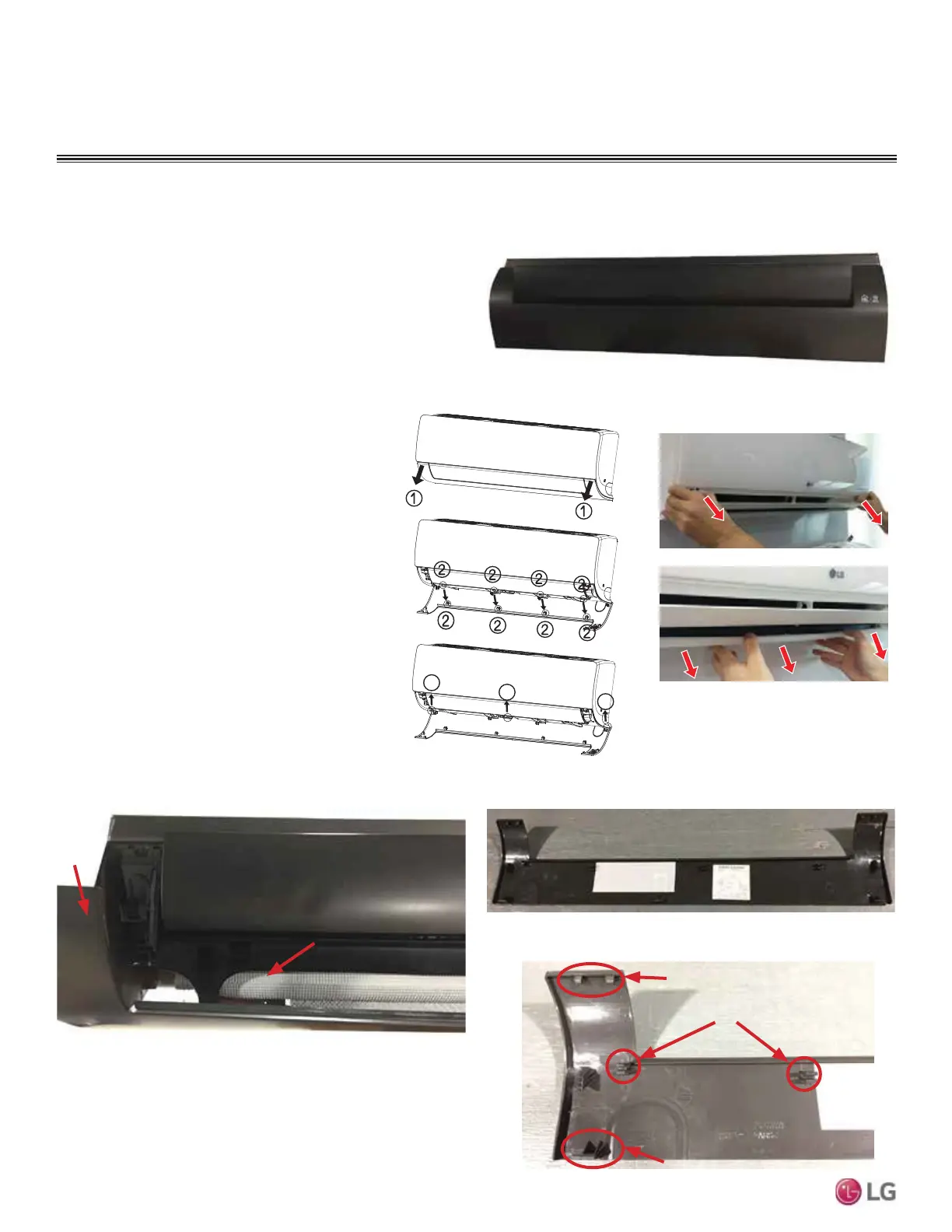

To access the indoor unit piping port connections,
terminal block, and to make the indoor unit installation
procedure easier, it is recommended that the bottom
cover be removed first.
1. Unsnap the bottom cover at its top left and right
sides (Location 1).
2. Unsnap each of the three (3) or four (4) small
C-hooks located in the middle of the bottom cover
(Location 2). Number of C-hooks present depends
on model of indoor unit.
3. Lift the three (3) to four (4) hinges on the bottom
cover up and out of the channels molded to the
left, right, and middle of the indoor unit (Location
3). Number of hinges present depends on model
of indoor unit.
4. Set aside the bottom cover to re-install after all
procedures are complete.
3
3
3
Removing the Indoor Unit Bottom Cover
Indoor Unit Mounting
Figure 17: Removing the Bottom Cover
(Appearances Will Vary Depending on
Indoor Unit Model).
Figure 19: Back of Bottom Cover Completely Removed from Indoor Unit
(Appearances Will Vary Depending on Indoor Unit Model).
Figure 18: Bottom Cover with Top and Middle Unsnapped, Front View
(Appearances Will Vary Depending on Indoor Unit Model).
Inside of Indoor Unit
Top Left Side of
Bottom Cover
Figure 20: Close Up of Bottom Cover Connections (Appearances Will
Vary Depending on Indoor Unit Model).
Hinge
Top Snaps
C-Hooks
